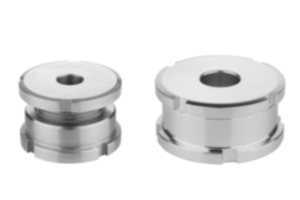

K0694Leveling Sets Low Version |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel 1.7225.

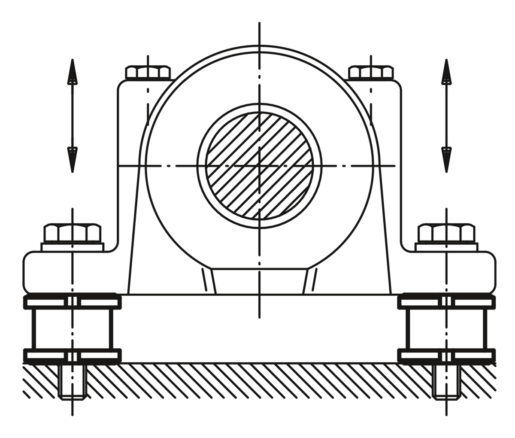

Stainless steel 1.4305 (AISI 303 equivalent).Version:Seel version trivalent blue passivated. Stainless steel version bright.Note:Low height levelling sets are used for mounting, levelling and aligning motors, aggregates, drive units and assembly lines. The advantage is the low overall height, which means that alignments can be carried out easily and precisely even with several support points. This permits precise and torsion-free alignment. The static additional load F1 is effective after deducting the tensioning force (screw 8.8, µm = 0.125) from the total load F.
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No. | Main material | D | for screw | D1 | D2 | H min.
| H max.
| B | N | M | F kN | F1 kN | CAD | Acc. | Price | Order |
---|
K0694.0404 | carbon steel | 4,5 | M4 | M15x1 | 25 | 15 | 19 | 5 | 4 | 2 | 40 | 36 |  | | 46.51 $ (USD) | | K0694.0405 | carbon steel | 5,5 | M5 | M15x1 | 25 | 15 | 19 | 5 | 4 | 2 | 40 | 33,4 |  | | 46.51 $ (USD) | | K0694.0406 | carbon steel | 6,6 | M6 | M15x1 | 25 | 15 | 19 | 5 | 4 | 2 | 40 | 30,7 |  | | 46.51 $ (USD) | | K0694.0506 | carbon steel | 6,6 | M6 | M20x1 | 32 | 18 | 23 | 6 | 4 | 2 | 65 | 55,7 |  | | 49.31 $ (USD) | | K0694.0508 | carbon steel | 9 | M8 | M20x1 | 32 | 18 | 23 | 6 | 4 | 2 | 65 | 48 |  | | 49.31 $ (USD) | | K0694.0510 | carbon steel | 11 | M10 | M20x1 | 32 | 18 | 23 | 6 | 4 | 2 | 65 | 37,9 |  | | 49.31 $ (USD) | | K0694.0710 | carbon steel | 11 | M10 | M30x1,5 | 45 | 22 | 29 | 7 | 5 | 2 | 120 | 92,9 |  | | 50.47 $ (USD) | | K0694.0712 | carbon steel | 13,5 | M12 | M30x1,5 | 45 | 22 | 29 | 7 | 5 | 2 | 120 | 80,4 |  | | 50.47 $ (USD) | | K0694.0716 | carbon steel | 17,5 | M16 | M30x1,5 | 45 | 22 | 29 | 7 | 5 | 2 | 120 | 45,5 |  | | 50.47 $ (USD) | | K0694.0916 | carbon steel | 17,5 | M16 | M40x1,5 | 58 | 28 | 37 | 9 | 6 | 2,5 | 210 | 136 |  | | 55.86 $ (USD) | | K0694.0920 | carbon steel | 22 | M20 | M40x1,5 | 58 | 28 | 37 | 9 | 6 | 2,5 | 210 | 90 |  | | 55.86 $ (USD) | | K0694.0924 | carbon steel | 26 | M24 | M40x1,5 | 58 | 28 | 37 | 9 | 6 | 2,5 | 210 | 37 |  | | 55.86 $ (USD) | | K0694.1020 | carbon steel | 22 | M20 | M50x1,5 | 70 | 33 | 43 | 11 | 6 | 2,5 | 330 | 210 |  | | 88.39 $ (USD) | | K0694.1024 | carbon steel | 26 | M24 | M50x1,5 | 70 | 33 | 43 | 11 | 6 | 2,5 | 330 | 157 |  | | 88.39 $ (USD) | | K0694.1030 | carbon steel | 33 | M30 | M50x1,5 | 70 | 33 | 43 | 11 | 6 | 2,5 | 330 | 53 |  | | 88.39 $ (USD) | | K0694.04041 | stainless steel | 4,5 | M4 | M15x1 | 25 | 15 | 19 | 5 | 4 | 2 | 27,1 | 24,14 |  | | 55.86 $ (USD) | | K0694.04051 | stainless steel | 5,5 | M5 | M15x1 | 25 | 15 | 19 | 5 | 4 | 2 | 27,1 | 22,24 |  | | 55.86 $ (USD) | | K0694.04061 | stainless steel | 6,6 | M6 | M15x1 | 25 | 15 | 19 | 5 | 4 | 2 | 27,1 | 20,26 |  | | 55.86 $ (USD) | | K0694.05061 | stainless steel | 6,6 | M6 | M20x1 | 32 | 18 | 23 | 6 | 4 | 2 | 43,4 | 36,56 |  | | 62.84 $ (USD) | | K0694.05081 | stainless steel | 9 | M8 | M20x1 | 32 | 18 | 23 | 6 | 4 | 2 | 43,4 | 30,86 |  | | 62.84 $ (USD) | | K0694.05101 | stainless steel | 11 | M10 | M20x1 | 32 | 18 | 23 | 6 | 4 | 2 | 43,4 | 23,41 |  | | 62.84 $ (USD) | | K0694.07101 | stainless steel | 11 | M10 | M30x1,5 | 45 | 22 | 29 | 7 | 5 | 2 | 84 | 64,01 |  | | 78.38 $ (USD) | | K0694.07121 | stainless steel | 13,5 | M12 | M30x1,5 | 45 | 22 | 29 | 7 | 5 | 2 | 84 | 54,82 |  | | 78.38 $ (USD) | | K0694.07161 | stainless steel | 17,5 | M16 | M30x1,5 | 45 | 22 | 29 | 7 | 5 | 2 | 84 | 28,9 |  | | 78.38 $ (USD) | | K0694.09161 | stainless steel | 17,5 | M16 | M40x1,5 | 58 | 28 | 37 | 9 | 6 | 2,5 | 148 | 92,9 |  | | 98.40 $ (USD) | | K0694.09201 | stainless steel | 22 | M20 | M40x1,5 | 58 | 28 | 37 | 9 | 6 | 2,5 | 148 | 59,08 |  | | 98.40 $ (USD) | | K0694.09241 | stainless steel | 26 | M24 | M40x1,5 | 58 | 28 | 37 | 9 | 6 | 2,5 | 148 | 20,3 |  | | 98.40 $ (USD) | | K0694.10201 | stainless steel | 22 | M20 | M50x1,5 | 70 | 33 | 43 | 11 | 6 | 2,5 | 225 | 136,08 |  | | 140.28 $ (USD) | | K0694.10241 | stainless steel | 26 | M24 | M50x1,5 | 70 | 33 | 43 | 11 | 6 | 2,5 | 225 | 97,3 |  | | 140.28 $ (USD) | | K0694.10301 | stainless steel | 33 | M30 | M50x1,5 | 70 | 33 | 43 | 11 | 6 | 2,5 | 225 | 20,6 |  | | 140.28 $ (USD) | |
