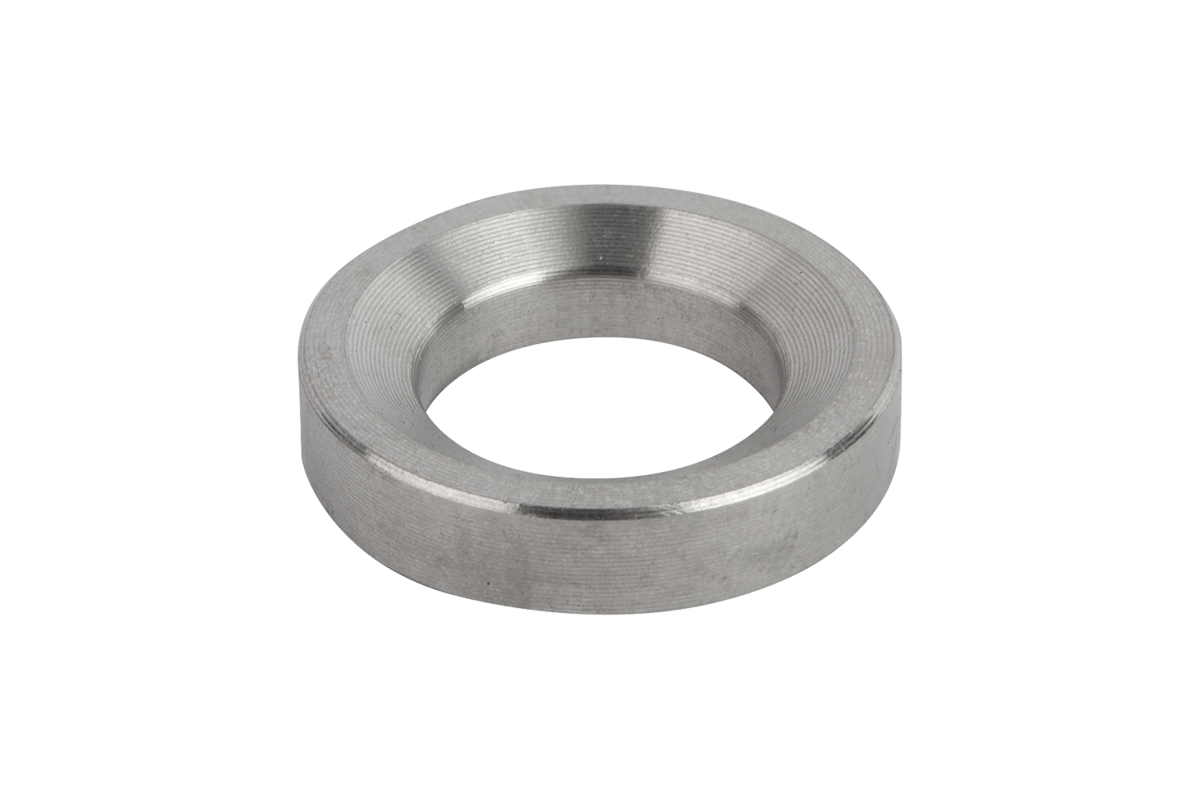

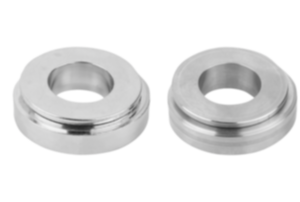

Conical seats style D DIN 6319, edition 10/01
K0729_D

Conical seats style D DIN 6319, edition 10/01

go back

Item description/product images

DescriptionMaterial:Mild steel or stainless steel.
Style G high carbon steel tempered to HV 390 ±40.
Version:Steel version case hardened.
Stainless steel version bright, not hardened.
Note:Conical seat style G (available on request) should be used over slots.
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0729_D Conical seats style D DIN 6319, edition 10/01 92,9 kB

Drawings

Conical seats style D DIN 6319, edition 10/01

Item selection/filter

Item No.Main
material
StyleD1D2D5H3Load rating
max. kN
(static load only)
CADAcc.PriceOrder
K0729.205mild steelD610,59,252,13,156,5 on request
K0729.206mild steelD7,112112,8469 on request
K0729.208mild steelD9,61714,53,55,6817 on request
K0729.210mild steelD122118,54,26,31026 on request
K0729.212mild steelD14,22420581238 on request
K0729.214mild steelD16,52824,85,6--53 on request
K0729.216mild steelD1930266,29,31673 on request
K0729.220mild steelD23,236317,511,620117 on request
K0729.224mild steelD2844379,51524168 on request
K0729.230mild steelD3556491218,930269 on request
K0729.236mild steelD4268601523,336394 on request
K0729.242mild steelD4978701828,342- on request
K0729.248mild steelD5692822235,248714 on request
K0729.256mild steelD65103922539,756960 on request
K0729.264mild steelD751201103046,5641269 on request
K0729.0206stainless steelD7,112112,8466 on request
K0729.0208stainless steelD9,61714,53,55,6812 on request
K0729.0210stainless steelD122118,54,26,31016 on request
K0729.0212stainless steelD14,22420581224 on request
K0729.0216stainless steelD1930266,29,31645 on request
K0729.0220stainless steelD23,236317,511,62071 on request
K0729.0224stainless steelD2844379,51524105 on request
K0729.0230stainless steelD3556491218,930191 on request
K0729.0236stainless steelD4268601523,336- on request
K0729.0242stainless steelD4978701828,342- on request
K0729.0248stainless steelD5692822235,248- on request
