Locating cylinders Ball lock
K0935

Locating cylinders Ball lock

go back

Item description/product images

DescriptionMaterial:Locating cylinder carbon steel.
Balls roller bearing steel.
Version:Locating cylinder tempered, black oxidized.
Balls hardened, bright.
Note:

By tightening the thrust screw (D2) the center ball is pressed downwards and in turn forces the three locking balls outwards, where they locked in the receiver bushing.
With this easy to use system machine set-up times are up to twelve times shorter than when conventional methods are used.

Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0935 Locating cylinders Ball lock 209 kB

Drawings

Locating cylinders Ball lock

Item selection/filter

Item No.

Grid plate
thickness ±0,05
DD1D2LL1SWHolding
force
F kN
Tightening
torque
max. Nm
Order No.

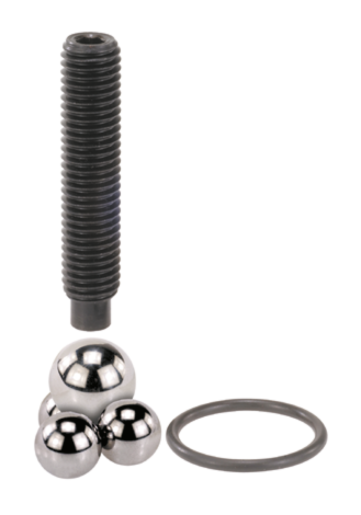

Repair Kit
CADAcc.PriceOrder
K0935.13013131322M527,662,53,31K0935.913013 166.66 $ (USD)
K0935.13020201322M534,662,53,31K0935.913020 175.33 $ (USD)
K0935.16020201632M636,5835,33K0935.916020 166.66 $ (USD)
K0935.16025251632M641,5835,33K0935.916025 170.38 $ (USD)
K0935.20020202040M639,510313,34K0935.920020 166.66 $ (USD)
K0935.20025252040M644,510313,34K0935.920025 175.33 $ (USD)
K0935.25020202545M844104309K0935.925020 178.06 $ (USD)
K0935.25025252545M849104309K0935.925025 182.35 $ (USD)
K0935.30020203050M10491354415K0935.930020 199.65 $ (USD)
K0935.30025253050M10541354415K0935.930025 211.26 $ (USD)
K0935.35020203560M12511366825K0935.935020 200.99 $ (USD)
K0935.35025253560M12561366825K0935.935025 211.26 $ (USD)
K0935.35040403560M12711366825K0935.935040 231.25 $ (USD)
K0935.35050503560M12811366825K0935.935050 248.54 $ (USD)
K0935.50020205075M206420108850K0935.950020 305.31 $ (USD)
K0935.50025255075M206920108850K0935.950025 318.80 $ (USD)
K0935.50040405075M208420108850K0935.950040 351.22 $ (USD)
K0935.50050505075M209420108850K0935.950050 375.52 $ (USD)
