Locating cylinder stainless steel Ball Lock
K1474

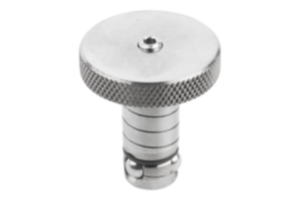

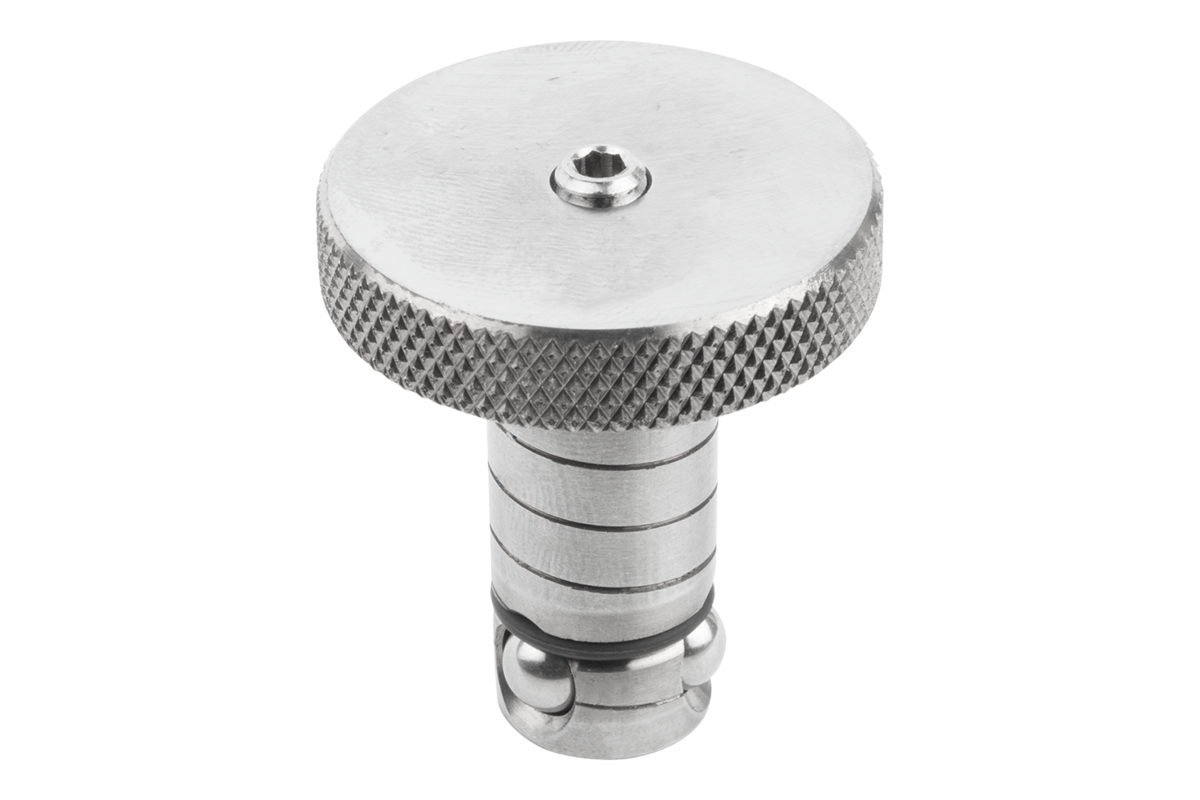

Locating cylinder stainless steel Ball Lock

go back

Item description/product images

DescriptionMaterial:Locating cylinder and ball stainless steel 1.4542 (AISI "630" equivalent).Version:Locating cylinder and ball hardened to min. 40 HRC, bright.Note:

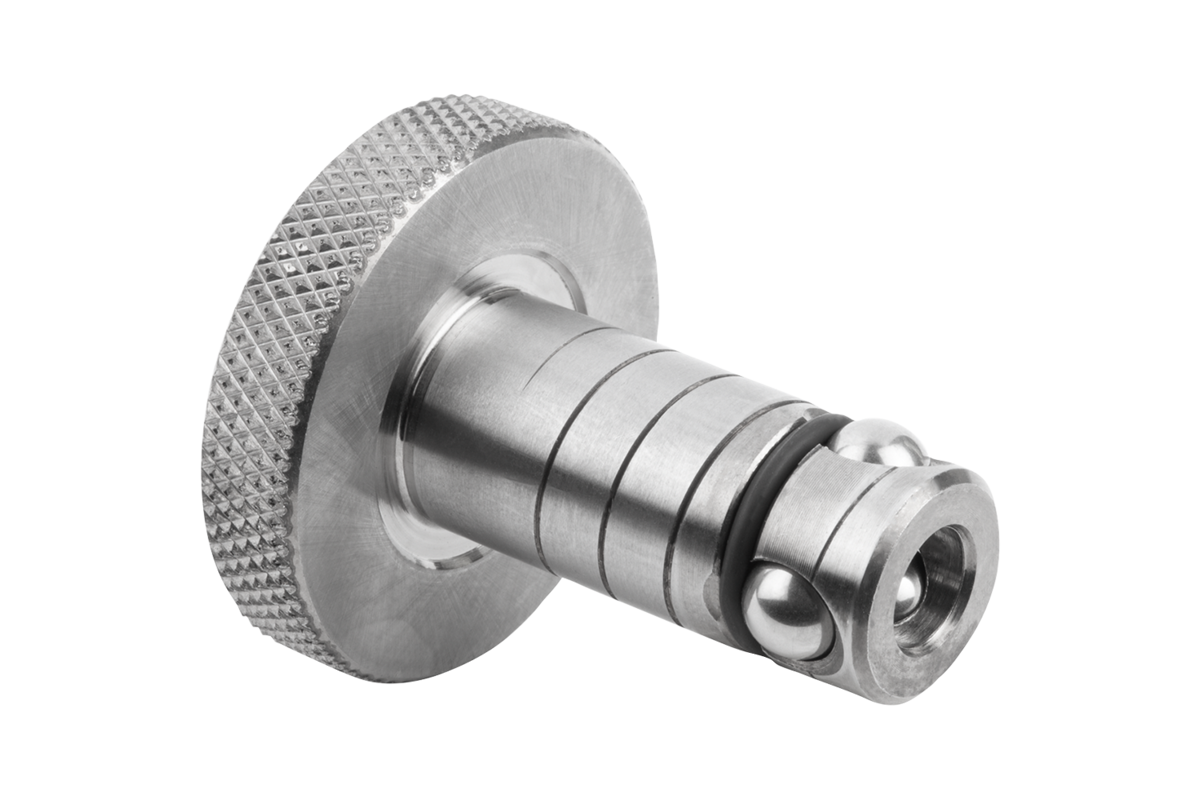

By tightening the thrust screw (D2) the center ball is pressed downwards and in turn forces the three locking balls outwards, where they locked in the receiver bushing.
With this easy to use system machine set-up times are up to twelve times shorter than when conventional methods are used.

Special features:
Stainless steelRoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1474 Locating cylinder stainless steel Ball Lock 364 kB

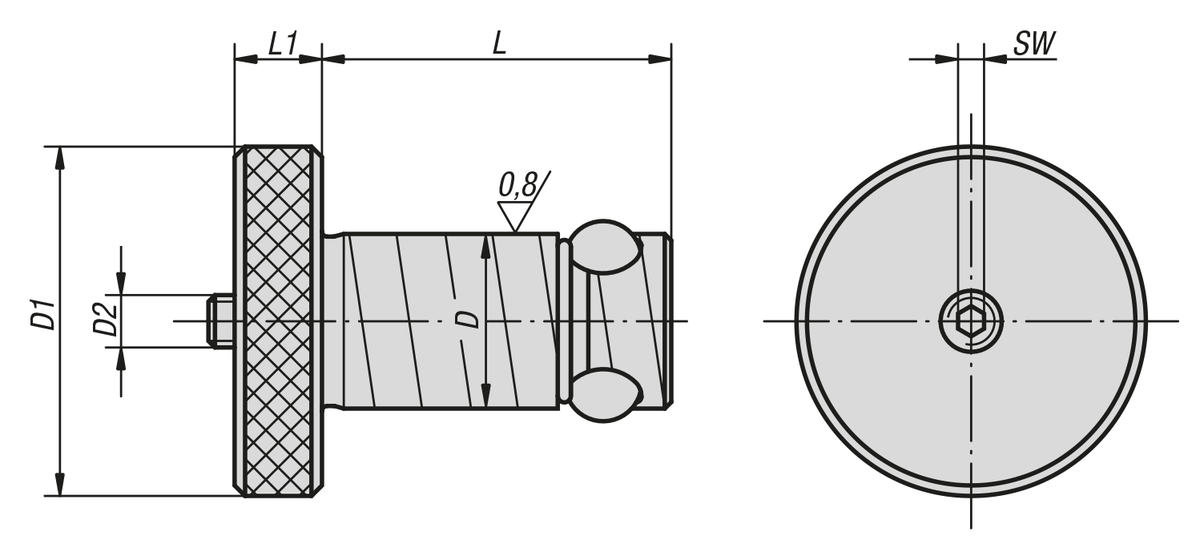

Drawings

Locating cylinder stainless steel Ball Lock

Item selection/filter

Item No.

Grid plate
thickness ±0.13
DD1D2LL1SWHolding
force
F kN
Tightening
torque
max. Nm
Order No.

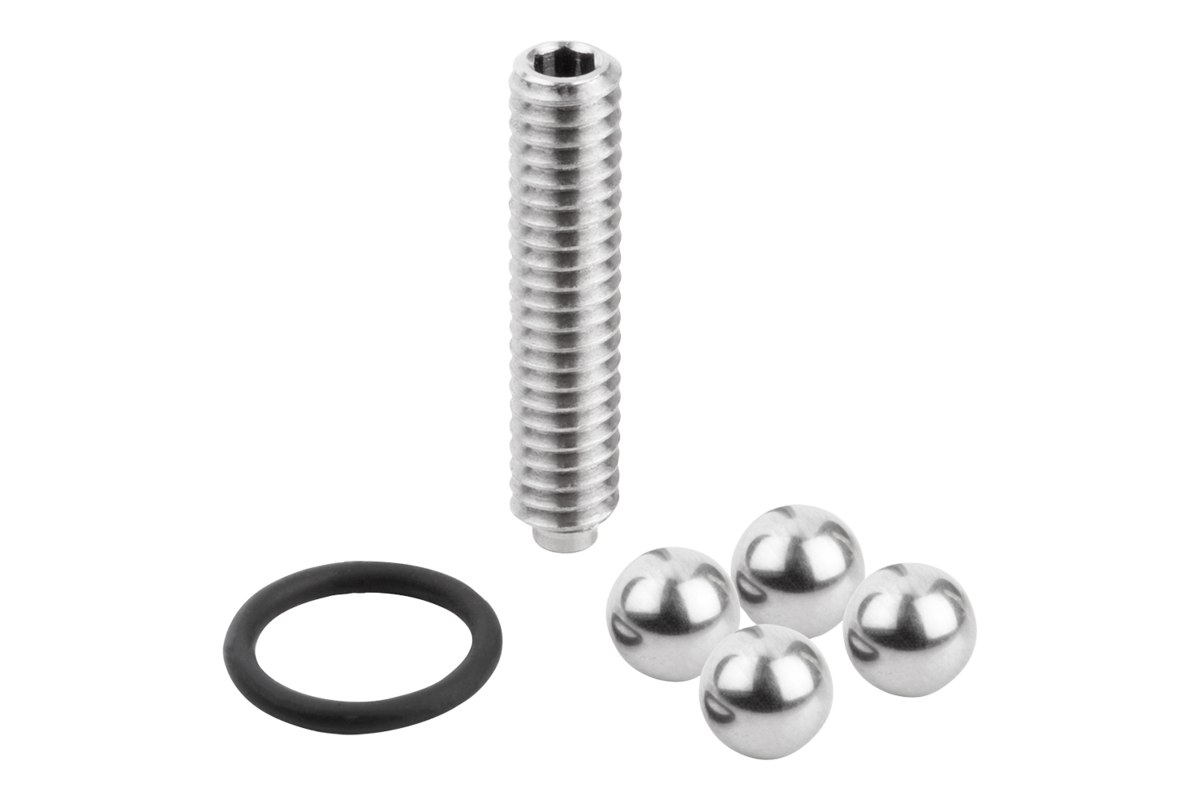

Repair Kit
CADAcc.PriceOrder
K1474.13013131322M527,662,53,31,2K1474.913013 223.49 $ (USD)
K1474.13020201322M534,662,53,31,2K1474.913020 225.63 $ (USD)
K1474.16020201632M636,5835,34,5K1474.916020 225.63 $ (USD)
K1474.16025251632M641,5835,34,5K1474.916025 227.73 $ (USD)
K1474.20020202040M639,510313,35,3K1474.920020 209.38 $ (USD)
K1474.20025252040M644,410313,35,3K1474.920025 244.77 $ (USD)
K1474.25020202545M8441043011K1474.925020 223.49 $ (USD)
K1474.25025252545M8491043011K1474.925025 223.49 $ (USD)
K1474.30020203050M10491354418K1474.930020 255.79 $ (USD)
K1474.30025253050M10541354418K1474.930025 258.35 $ (USD)
K1474.35020203560M12511366833K1474.935020 323.50 $ (USD)
K1474.35025253560M12561366833K1474.935025 336.29 $ (USD)
K1474.35040403560M12711366833K1474.935040 361.09 $ (USD)
K1474.35050503560M12811366833K1474.935050 384.51 $ (USD)
K1474.50020205075M206420108865K1474.950020 477.86 $ (USD)
K1474.50025255075M206920108865K1474.950025 494.24 $ (USD)
K1474.50040405075M208420108865K1474.950040 548.13 $ (USD)
K1474.50050505075M209420108865K1474.950050 566.86 $ (USD)
