Centering bushings stainless steel
K1475

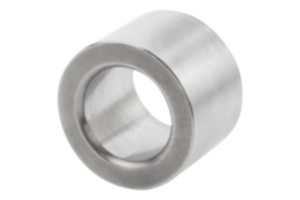

Centering bushings stainless steel

go back

Item description/product images

DescriptionMaterial:Stainless steel 1.4548 (AISI "630" equivalent).Version:Hardened to min. 40 HRC, bright.Note:By a center distance tolerance of ±0.005 mm and two grade I centering bushings a repeat accuracy of ±0.013 mm is possible.
By a center distance tolerance of ±0.03 mm and one grade I and one grade II centering bushing a repeat accuracy of 0.04 mm is possible.
The centering bushings are pressed into the receiver holes of the tooling plates using a light pressure.
For further details see “General instyleation”.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1475 Centering bushings stainless steel 361 kB

Drawings

Centering bushings stainless steel

Item selection/filter

Order No.Version 1T=toleranceDD1LBore size for
centering bushing
Ø +0.01
CADAcc.PriceOrder
K1475.113013grade i+0,005 - +0,0181319,041319,01634.88 $ (USD)
K1475.113020grade i+0,005 - +0,0181319,042019,01637.17 $ (USD)
K1475.116020grade i+0,005 - +0,0181625,0422025,01637.17 $ (USD)
K1475.116025grade i+0,005 - +0,0181625,0422525,01639.46 $ (USD)
K1475.120020grade i+0,005 - +0,0182035,0422035,01839.23 $ (USD)
K1475.120025grade i+0,005 - +0,0182035,0422535,01843.04 $ (USD)
K1475.125020grade i+0,005 - +0,0182535,0422035,01841.31 $ (USD)
K1475.125025grade i+0,005 - +0,0182535,0422535,01846.64 $ (USD)
K1475.130020grade i+0,005 - +0,0183045,0422045,01858.14 $ (USD)
K1475.130025grade i+0,005 - +0,0183045,0422545,01859.70 $ (USD)
K1475.135020grade i+0,005 - +0,0183545,0422045,01858.14 $ (USD)
K1475.135025grade i+0,005 - +0,0183545,0422545,01859.70 $ (USD)
K1475.135040grade i+0,005 - +0,0183545,0424045,01862.75 $ (USD)
K1475.135050grade i+0,005 - +0,0183545,0425045,01865.25 $ (USD)
K1475.150020grade i+0,005 - +0,0185063,5462063,521112.69 $ (USD)
K1475.150025grade i+0,005 - +0,0185063,5462563,521120.91 $ (USD)
K1475.150040grade i+0,005 - +0,0185063,5464063,521132.38 $ (USD)
K1475.150050grade i+0,005 - +0,0185063,5465063,521142.56 $ (USD)
K1475.213013grade ii+0,025 - +0,0501319,041319,01695.04 $ (USD)
K1475.213020grade ii+0,025 - +0,0501319,042019,01637.17 $ (USD)
K1475.216020grade ii+0,025 - +0,0501625,0422025,01637.17 $ (USD)
K1475.216025grade ii+0,025 - +0,0501625,0422525,01639.46 $ (USD)
K1475.220020grade ii+0,025 - +0,0502035,0422035,01837.17 $ (USD)
K1475.220025grade ii+0,025 - +0,0502035,0422535,01843.04 $ (USD)
K1475.225020grade ii+0,025 - +0,0502535,0422035,01841.31 $ (USD)
K1475.225025grade ii+0,025 - +0,0502535,0422535,01843.04 $ (USD)
K1475.230020grade ii+0,025 - +0,0503045,0422045,01858.14 $ (USD)
K1475.230025grade ii+0,025 - +0,0503045,0422545,01859.70 $ (USD)
K1475.235020grade ii+0,025 - +0,0503545,0422045,01858.14 $ (USD)
K1475.235025grade ii+0,025 - +0,0503545,0422545,01859.70 $ (USD)
K1475.235040grade ii+0,025 - +0,0503545,0424045,01862.75 $ (USD)
K1475.235050grade ii+0,025 - +0,0503545,0425045,01871.25 $ (USD)
K1475.250020grade ii+0,025 - +0,0505063,5462063,521112.69 $ (USD)
K1475.250025grade ii+0,025 - +0,0505063,5462563,521120.91 $ (USD)
K1475.250040grade ii+0,025 - +0,0505063,5464063,521132.38 $ (USD)
K1475.250050grade ii+0,025 - +0,0505063,5465063,521142.56 $ (USD)
