Positioning Feet with internal thread and convex face, Style E

go back

Products
- Locating Components
  - Locating Pins and Rest Pads
    - Positioning Feet
      - Positioning Feet with internal thread and convex face, Style E

Item description/product images

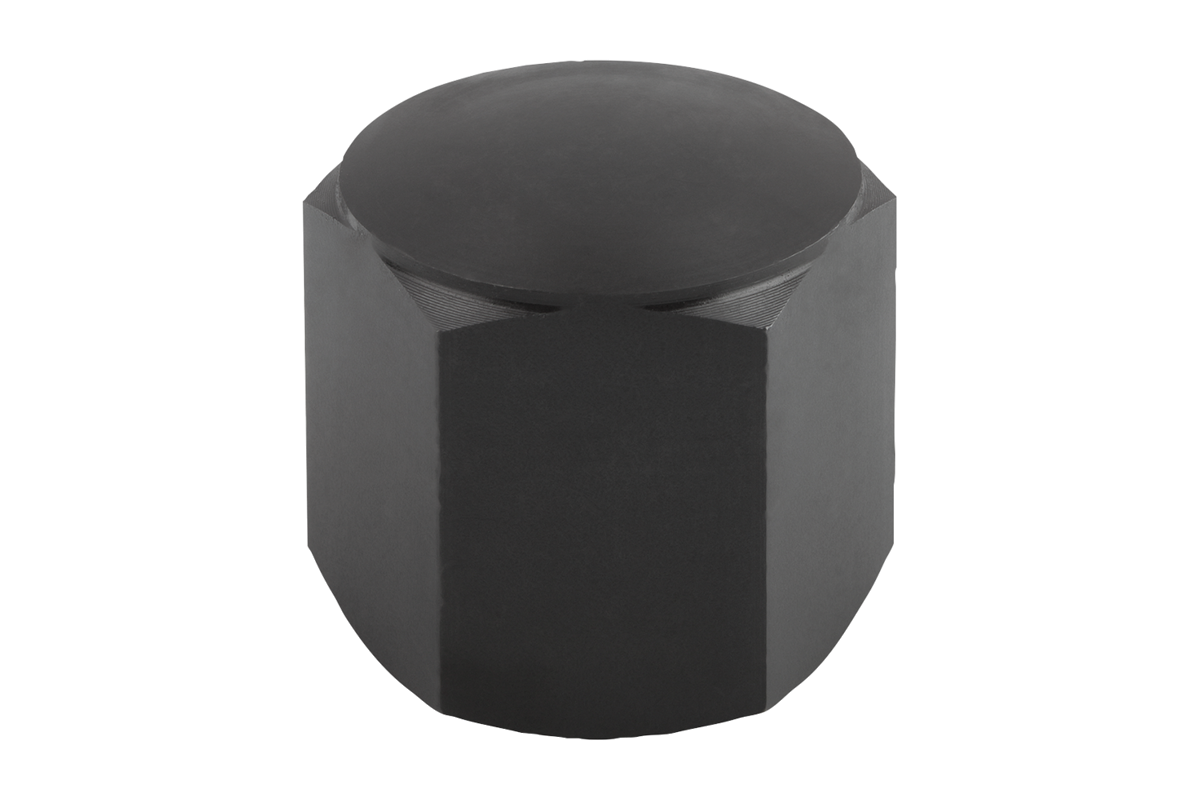

DescriptionMaterial:Steel.Version:Case-hardened and black oxidized.Note:Positioning feet are used as supports, stops and thrust pads for fixtures and general machine and appliance construction.Drawing reference:

Style E: Internal thread and spherical face

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0298_E Positioning Feet with internal thread and convex face, Style E

185 kB

Drawings

Item selection/filter

Item No.	style	G	H	T	E	SW	Price
K0298.510	E	M6	10	6	14,4	13	15.93 $ (USD)
K0298.5151	E	M6	15	10	14,4	13	16.87 $ (USD)
K0298.515	E	M8	15	6	19,4	17	20.97 $ (USD)
K0298.5251	E	M8	25	16	19,4	17	21.73 $ (USD)
K0298.5101	E	M8	10	6	19,4	17	17.84 $ (USD)
K0298.5201	E	M10	20	10	21,9	19	21.13 $ (USD)
K0298.5302	E	M10	30	15	21,9	19	21.96 $ (USD)
K0298.5401	E	M10	40	15	21,9	19	23.35 $ (USD)
K0298.520	E	M12	20	10	25,2	22	23.11 $ (USD)
K0298.525	E	M12	25	15	25,2	22	23.25 $ (USD)
K0298.530	E	M12	30	20	25,2	22	24.13 $ (USD)
K0298.540	E	M12	40	25	25,2	22	25.67 $ (USD)
K0298.550	E	M12	50	25	25,2	22	26.82 $ (USD)
K0298.5301	E	M16	30	20	33	30	45.38 $ (USD)
K0298.5501	E	M16	50	25	33	30	47.61 $ (USD)
