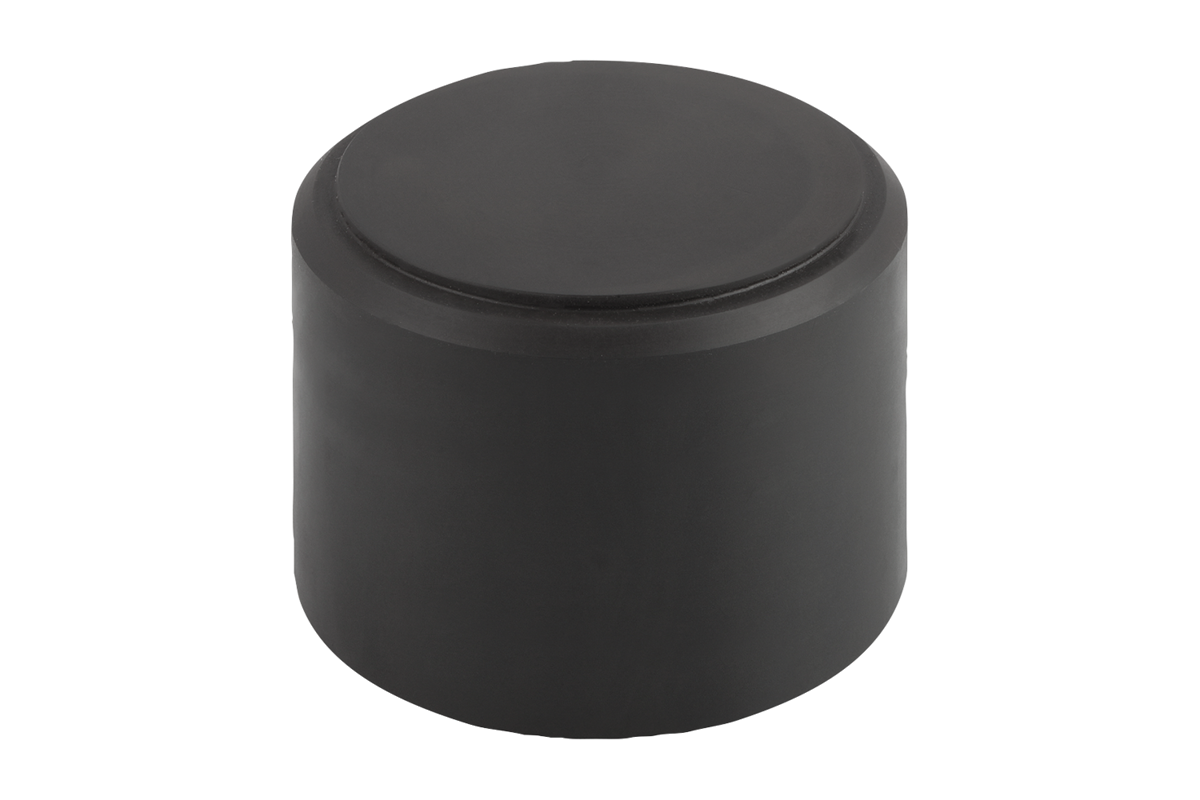

Self-aligning pads, auto-return, style C, smooth face

go back

Item description/product images

DescriptionMaterial:Carbon steel.Version:Hardened, black oxidized.Note:Self-aligning pads are used to support and clamp unmachined and machined workpieces.
They also serve as stops, supports and thrust pads in fixtures and toolmaking.
Applications:– The built-in O-ring prevents dirt and foreign particles from entering.

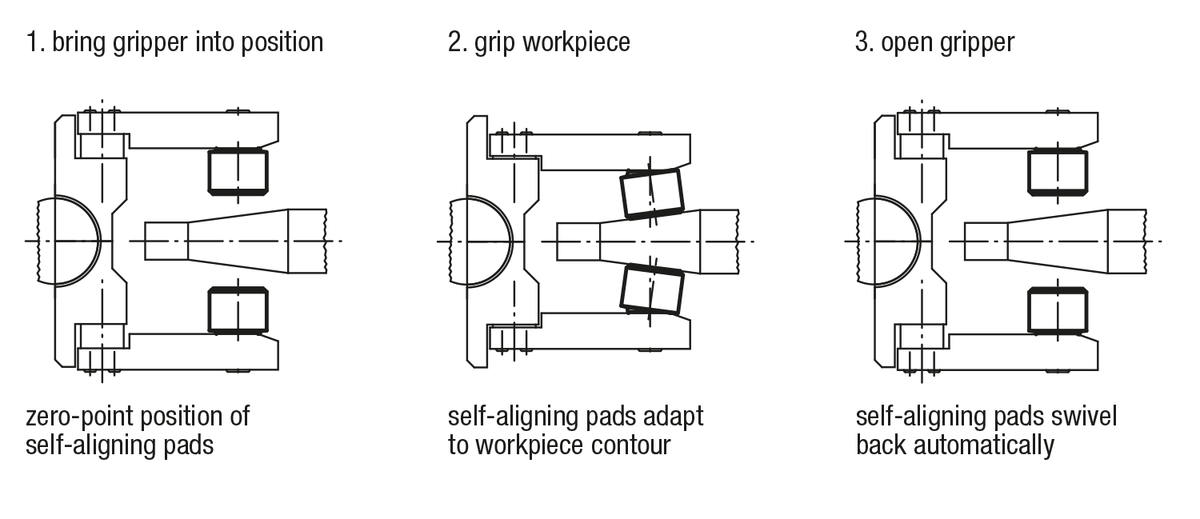

– The clamping surface swivels back automatically after clamping.
– High load rating and small size.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0286_C Self-aligning pads, auto-return, style C, smooth face 172 kB

Drawings

Self-aligning pads, auto-return, style C, smooth face

Item selection/filter

Order No.styleD1D2D3D4D5HH1H2TT1L6Load rating
max. kN
(static load only)
CADAcc.PriceOrder
K0286.105C18M51571,8142,10,8534,630 76.05 $ (USD)
K0286.106C22M61882,816,52,51645,650 83.78 $ (USD)
K0286.108C28M823113,321,53,41,3857,590 83.78 $ (USD)
K0286.110C34M1029134,4274,21,61069,2140 100.86 $ (USD)
K0286.112C40M1235165,4325212811,3220 119.46 $ (USD)
