Product groups

Item description/product images

DescriptionMaterial:Steel.
Polyamide PA 6.
Version:Black oxide finish.
Black polyamide.
Drawing reference:
1) thrust face
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0393 Thrust Pads 241 kB

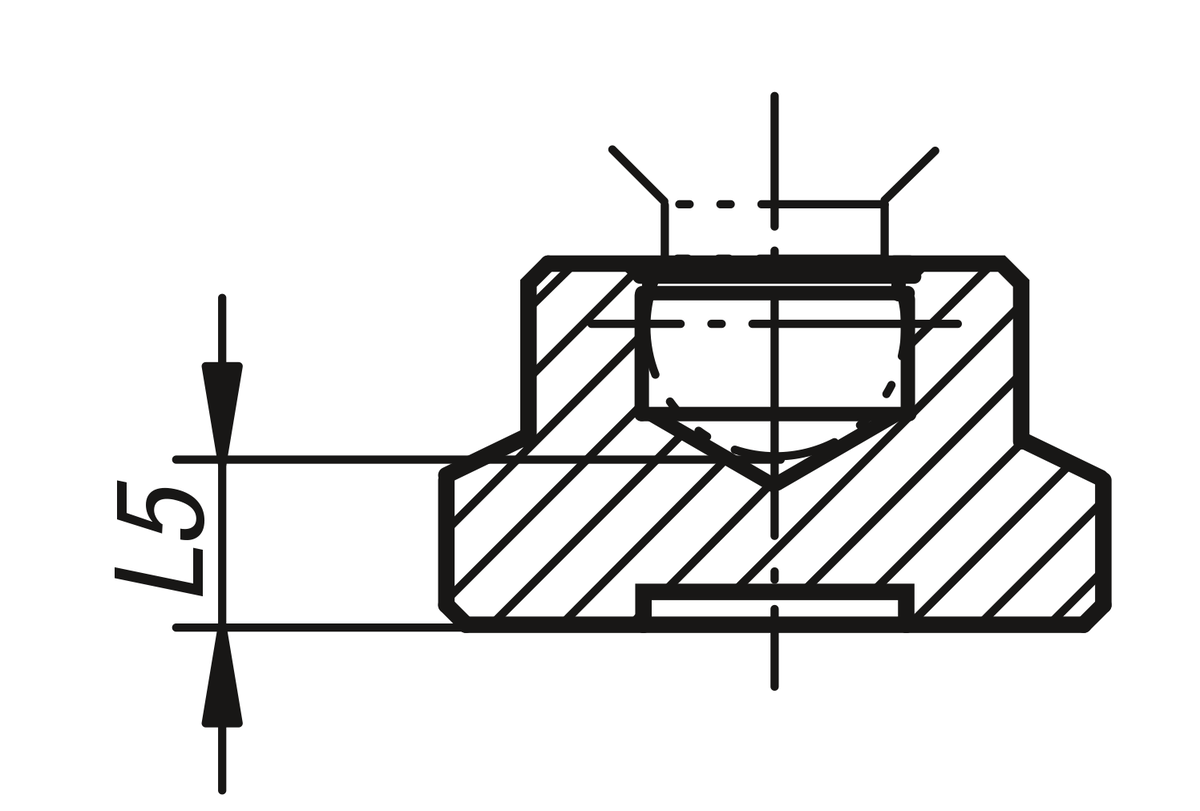

Drawings

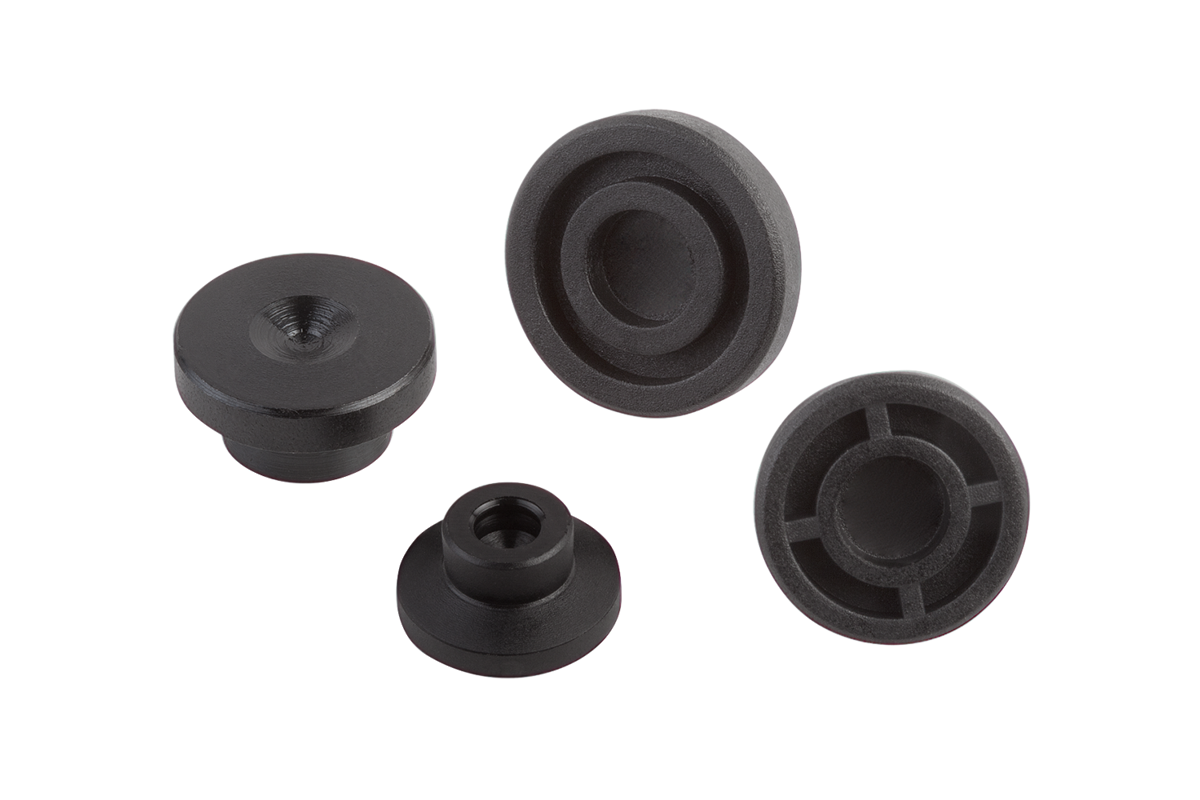

Thrust Pads
Thrust Pads

Item selection/filter

Item No.

StyleMain
material
D1D2D4H1H2L5Suitable
for
Grub Screws
CADAcc.PriceOrder
K0393.06Asteel154,48,67,62,53,8M6 1.76 $ (USD)
K0393.08Asteel185,91293,54,4M8 1.84 $ (USD)
K0393.10Asteel217,9151145M10 2.11 $ (USD)
K0393.12Asteel257,9181356,9M12 2.57 $ (USD)
K0393.206Apolyamide154,48,67,62,53,8M6 0.72 $ (USD)
K0393.208Bpolyamide185,91293,54,4M8 0.86 $ (USD)
K0393.210Cpolyamide217,9151145M10 0.94 $ (USD)
K0393.212Cpolyamide257,9181356,9M12 1.26 $ (USD)
