Magnets shallow pot with internal thread, hard ferrite with stainless-steel housing
Item description/product images
DescriptionMaterial:Housing stainless steel 1.4016 (AISI 430 equivalent).
Screw stainless steel 1.4305 (AISI 303 equivalent).

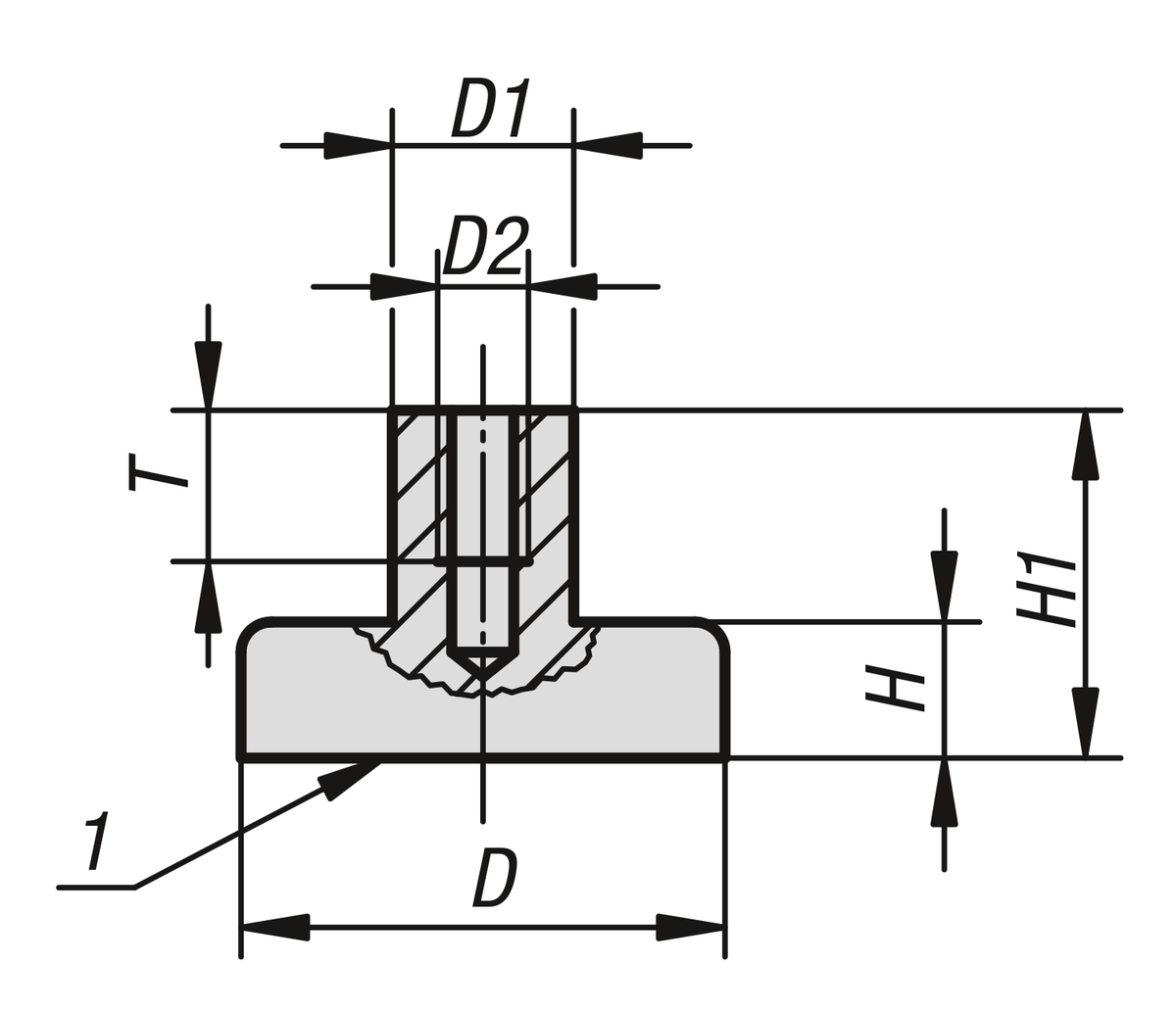

Magnetic core hard ferrite.Version:Bright.Note:Shallow pot magnets, shielded system.Temperature range:max. 220°C.Assembly:The magnets can be mounted by press-fit, screwing-in or gluing.Drawing reference:
1) magnetic face
Special features:
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
