Magnets raw, NdFeB, disc style

K1404

Magnets raw, NdFeB, disc style

Products
- Magnets
  - Magnets raw, NdFeB, disc style

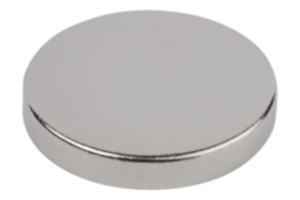

Item description/product images

DescriptionMaterial:NdFeB N35 (neodymium).Version:nickel-plated.Note:Unshielded system.Temperature range:max. 80°C.Assembly:The magnets can be mounted by press-fit or gluing.Drawing reference:

1) magnetic face

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1404 Magnets raw, NdFeB, disc style

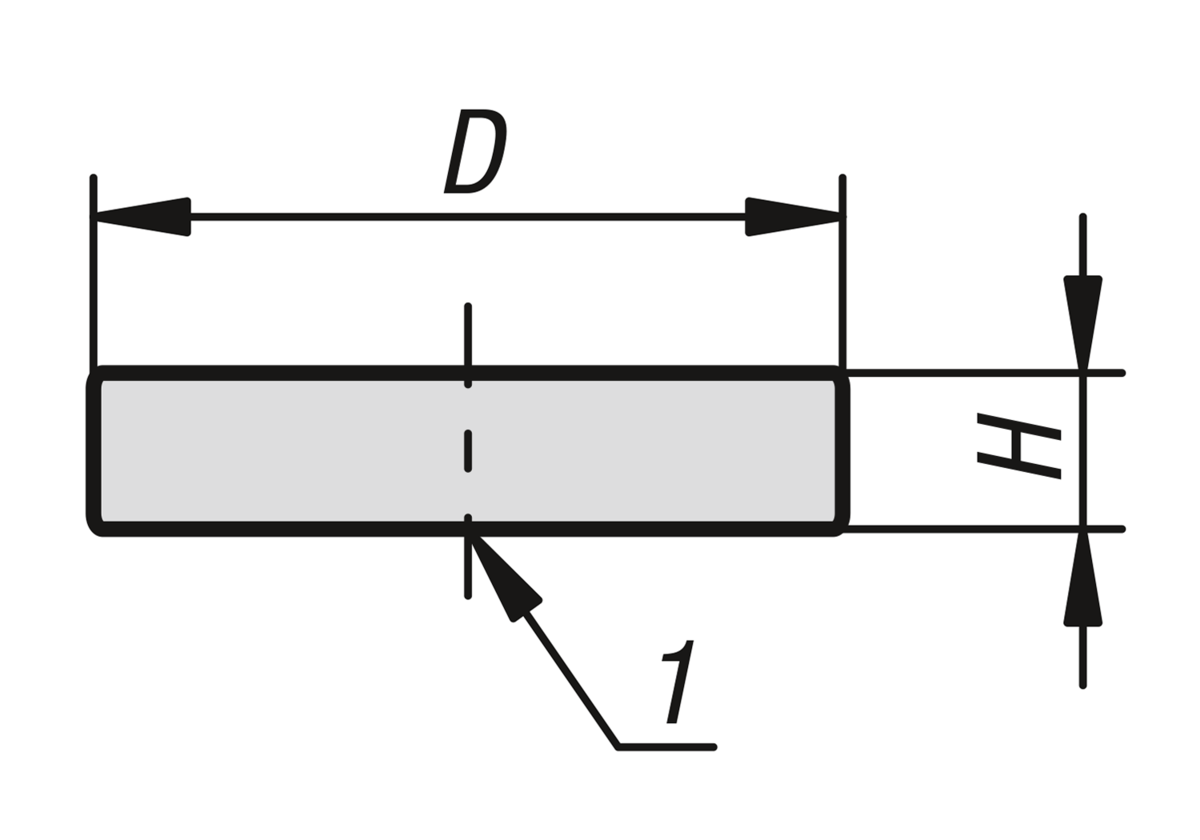

Drawings

Magnets raw, NdFeB, disc style

Item selection/filter

Order No.	D	H	Magnetic force N	CAD	Acc.	Price	Order
K1404.05	5 ±0,1	3 ±0,1	5			1.34 $ (USD)
K1404.06	6 ±0,1	3 ±0,1	7,5			1.41 $ (USD)
K1404.08	8 ±0,1	4 ±0,1	13			1.79 $ (USD)
K1404.10	10 ±0,1	3 ±0,1	15			2.27 $ (USD)
K1404.12	12 ±0,1	3 ±0,1	20			2.75 $ (USD)
K1404.15	15 ±0,1	3 ±0,1	25			3.09 $ (USD)
K1404.18	18 ±0,1	3 ±0,1	33			4.00 $ (USD)
K1404.24	24 ±0,1	3 ±0,1	39			6.32 $ (USD)
