Magnets shallow pot with counterbore, SmCo with stainless-steel housing

K1399

Magnets shallow pot with counterbore, SmCo with stainless-steel...

Products
- Magnets
  - Magnets shallow pot with counterbore, SmCo with stainless-steel housing

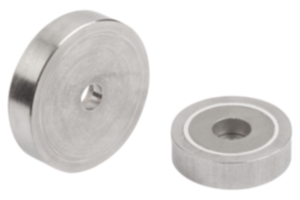

Item description/product images

DescriptionMaterial:Housing stainless steel 1.4104 (AISI 430F equivalent).
Magnetic core SmCo (samarium cobalt).Note:Shielded system.Temperature range:max. 350°C.Assembly:The magnets can be mounted by press-fit, screwing-in or gluing.Drawing reference:

1) magnetic face

Special features:

Stainless steel

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1399 Magnets shallow pot with counterbore, SmCo with stainless-steel housing

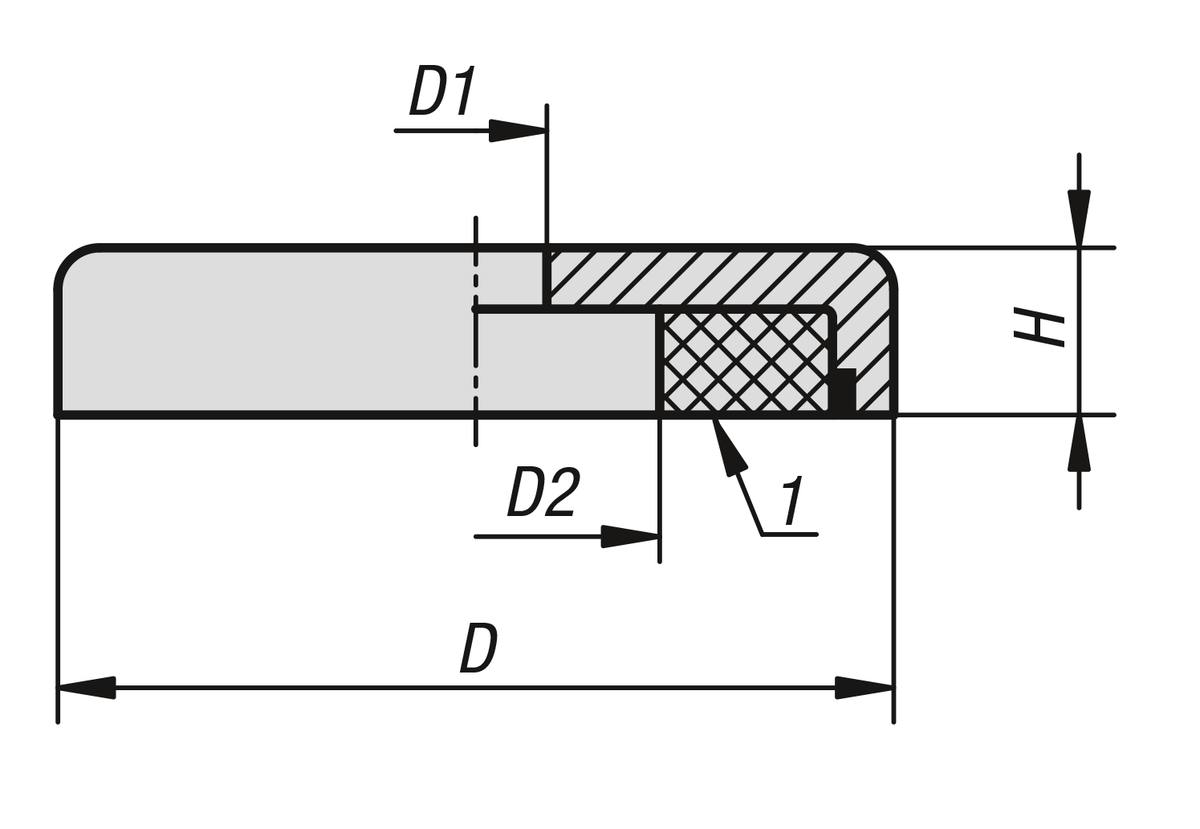

Drawings

Magnets shallow pot with counterbore, SmCo with stainless-steel housing

Item selection/filter

Order No.	D	D1	D2	H	Magnetic force N	CAD	Acc.	Price	Order
K1399.120	20 ±0,15	4,5	8	6	60			30.05 $ (USD)
K1399.125	25 ±0,15	4,5	8	7	80			35.61 $ (USD)
K1399.132	32 ±0,2	5,5	11	7	200			42.48 $ (USD)
K1399.140	40 ±0,2	5,5	10,5	8	420			73.40 $ (USD)
