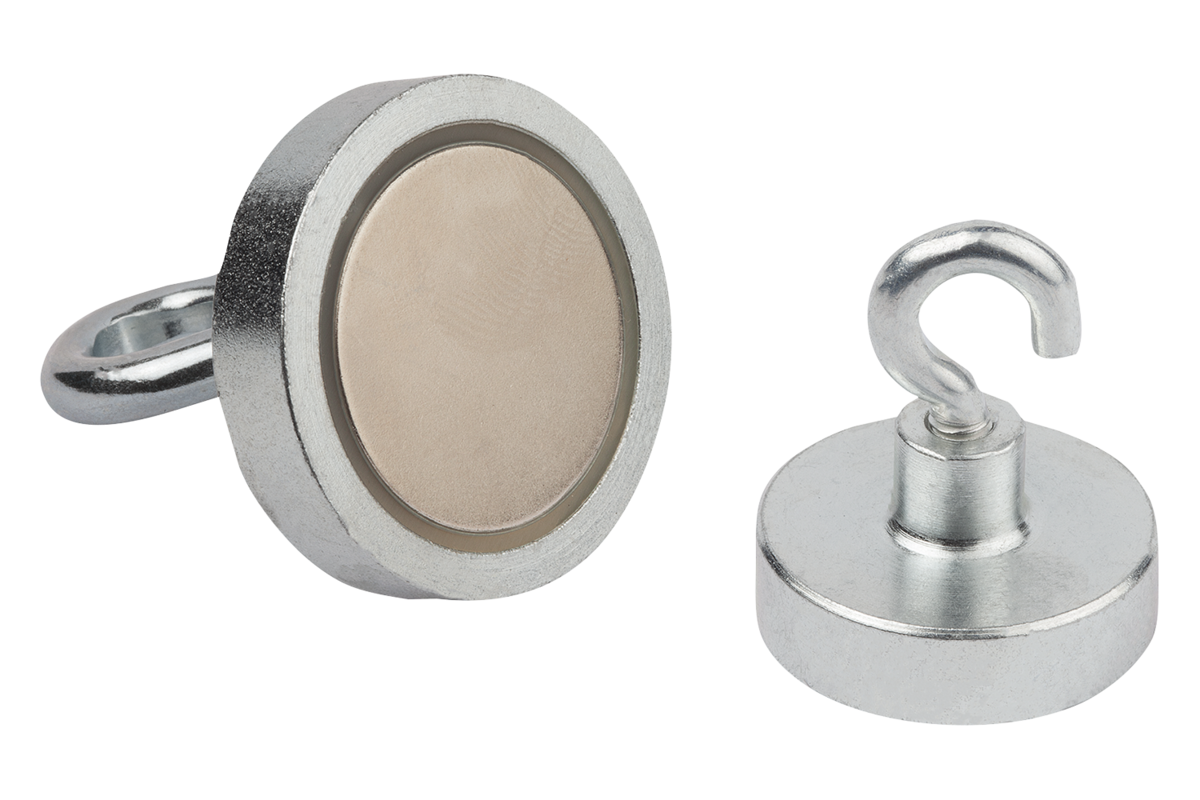

Magnets shallow pot with hook, NdFeB

K1402

Magnets shallow pot with hook, NdFeB

Products
- Magnets
  - Magnets shallow pot with hook, NdFeB

Item description/product images

DescriptionMaterial:Housing and hook steel.
Magnetic core NdFeB (neodymium).Version:Housing and hook electro zinc-plated.Note:Shielded system. With the permanent magnetic material NdFeB the attracive force increases by ca. 10-20 % compared with SmCo. Temperature range:max. 80°C.Drawing reference:

1) magnetic face

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1402 Magnets shallow pot with hook, NdFeB

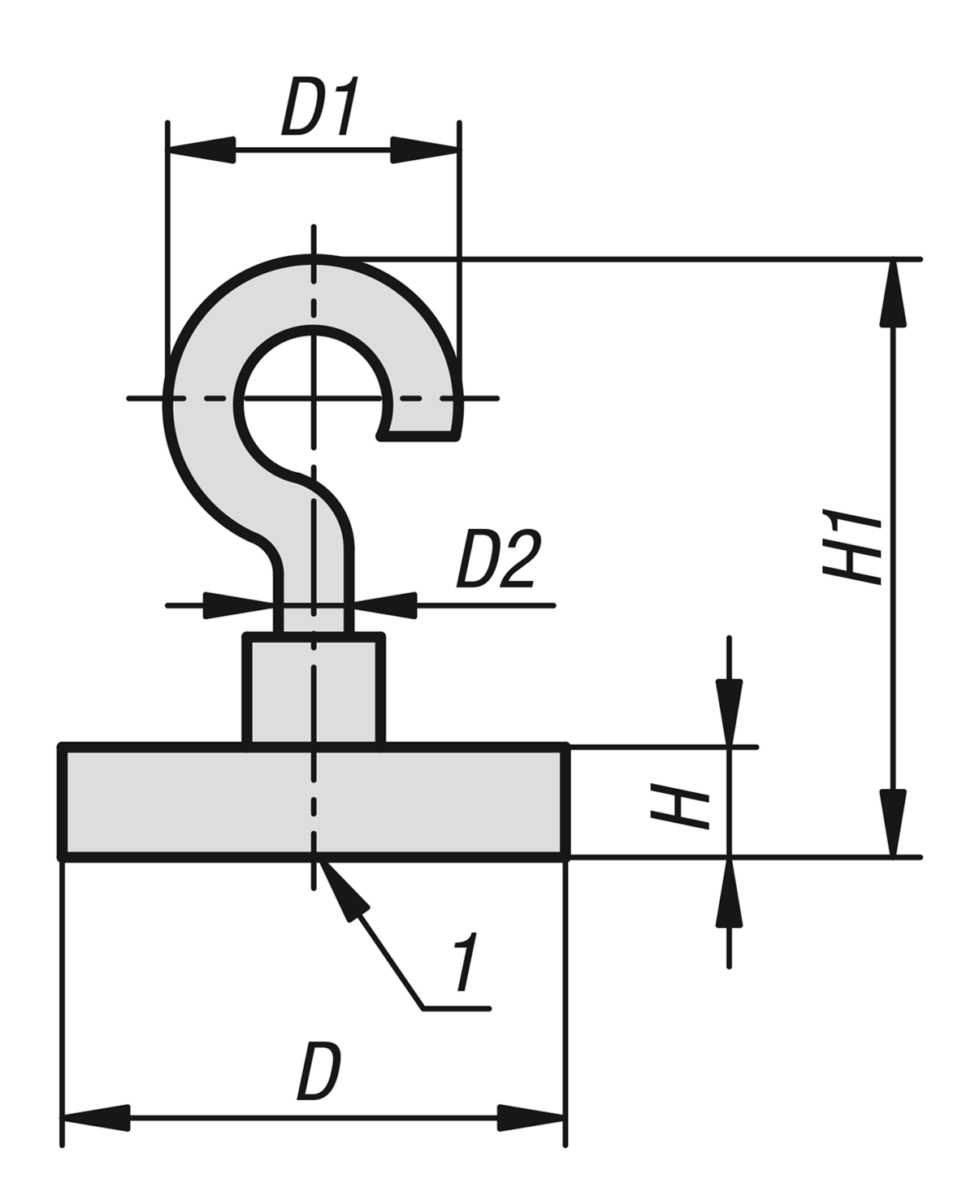

Drawings

Magnets shallow pot with hook, NdFeB

Item selection/filter

Order No.	D	D1	D2	H	H1	Magnetic force N	CAD	Acc.	Price	Order
K1402.10	10	10	3	4,5	24	25			5.70 $ (USD)
K1402.13	13	10	3	4,5	24	60			6.05 $ (USD)
K1402.16	16	13	3,5	4,5	27	95			7.34 $ (USD)
K1402.20	20	13	3,5	6	27,5	140			10.48 $ (USD)
K1402.25	25	13	3,5	7	28	200			14.96 $ (USD)
K1402.32	32	18,5	4,5	7	38	350			21.22 $ (USD)

Other items in this category

<< | < | 1-10 | 11-20 | 21-30 | 31-36 | > | >>

Magnets raw, NdFeB, disc style

K1404

Magnets raw, NdFeB, disc style

Magnets raw with hole, NdFeB, disc form

K1405

Magnets raw with hole, NdFeB, disc form

Magnets raw, NdFeB, block style

K1406

Magnets raw, NdFeB, block style

Magnets raw, AlNiCo, bar type

K1407

Magnets raw, AlNiCo, bar type

Magnets deep pot AlNiCo with fitting tolerance

K0545

Magnets deep pot AlNiCo with fitting tolerance

Magnets deep pot AlNiCo without fitting tolerance

K0546

Magnets deep pot AlNiCo without fitting tolerance

Magnets deep pot with pin AlNiCo

K0547

Magnets deep pot with pin AlNiCo

Magnets shallow pot hard ferrite

K0548

Magnets shallow pot hard ferrite

Magnets shallow pot with thread hard ferrite

K0549

Magnets shallow pot with thread hard ferrite

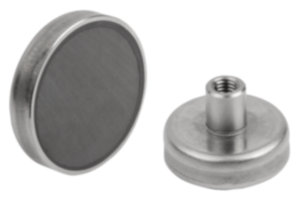

Magnets shallow pot with internal thread, hard ferrite with stainless-steel housing
