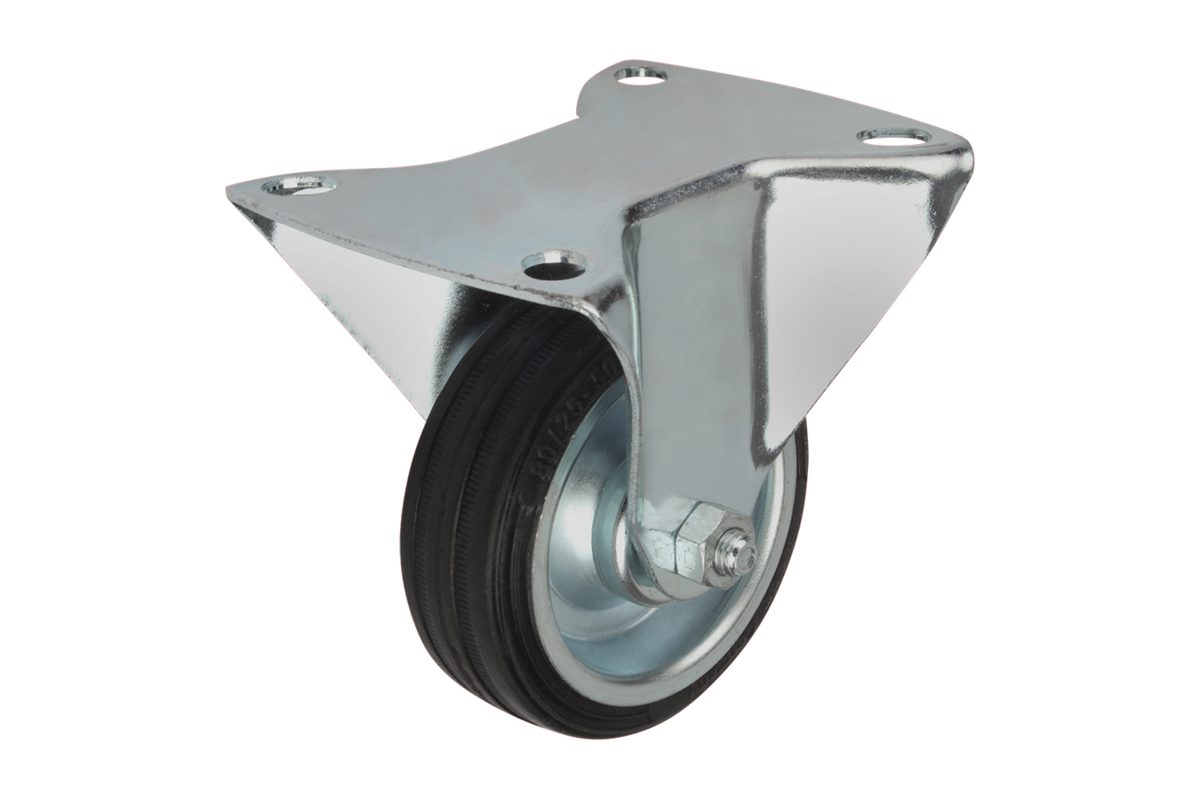

Item description/product images

DescriptionMaterial:Housing steel plate.
Wheels with thermoplastic rubber tread.
Wheel body polypropylene.Version:Housing press formed.
Wheels with plain bearings.Note:Wheel axle threaded. Swivel and fixed casters with mounting plate. Electrically conductive wheels, non-marking gray. The ohmic resistance of the wheel is less than 10⁴Ω.Application:Electrically conductive wheels on swivel and fixed casters are used to protect against electrostatic discharge generated by transport equipment or the transported goods. Damage to sensitive goods and painful electrostatic shocks to the personal is so prevented.Temperature range:-20 °C to +60 °C.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1761_B Fixed casters, electrically conductive

195 kB

Drawings

Item selection/filter

Order No.	Version 1	Wheel bearing	B	B1	B2	B3	D	D1	L	L1	H	L2	Permissible load kg	Price
K1761.11080321	without locking system	plain bearing	32	55	60	85	80	9	100	80	102	76	65	32.20 $ (USD)
K1761.11100321	without locking system	plain bearing	32	55	60	85	100	9	100	80	125	76	70	40.75 $ (USD)
K1761.11125321	without locking system	plain bearing	32	55	60	85	125	9	100	80	150	76	80	50.54 $ (USD)
K1761.11160401	without locking system	plain bearing	40	75	80	110	160	11	140	105	195	-	130	130.10 $ (USD)
K1761.11200401	without locking system	plain bearing	40	75	80	110	200	11	140	105	235	-	160	149.76 $ (USD)
