Item description/product images

DescriptionMaterial:Housing thick steel plate.
Wheels PA 6.
Version:Housing press formed.

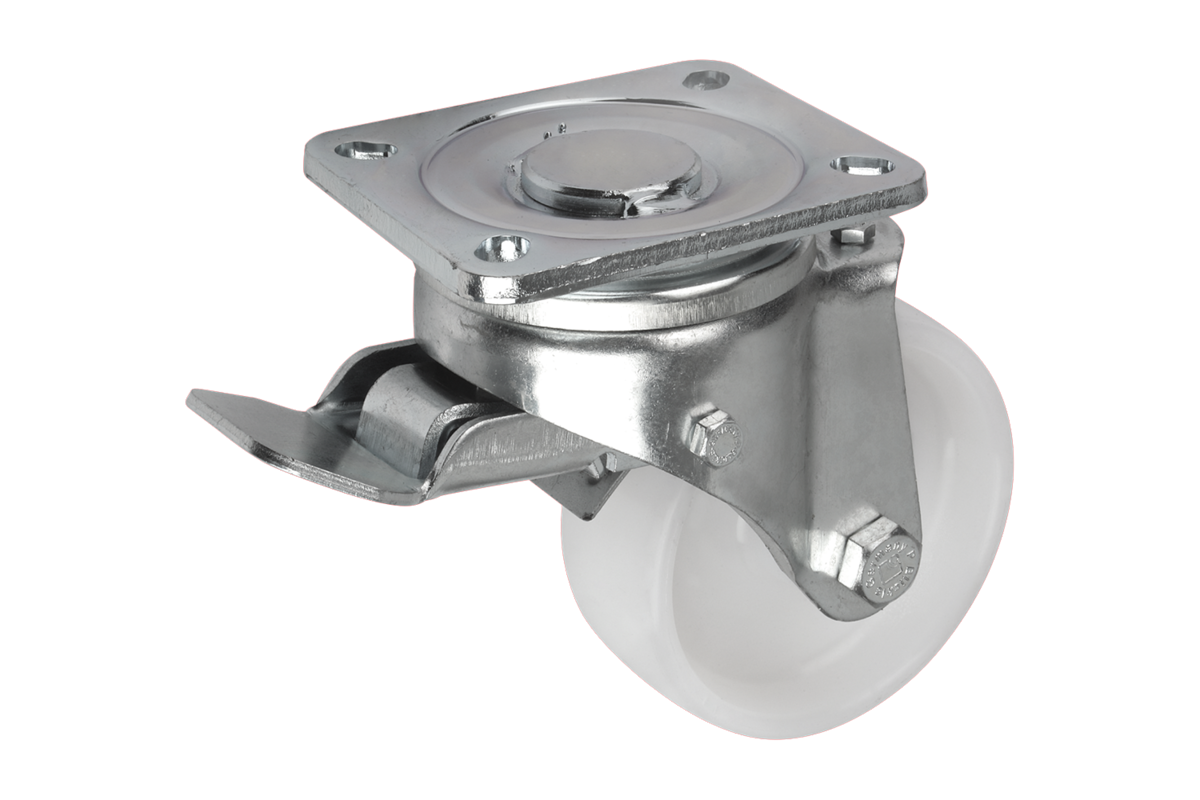

Swivel caster housing with strong fork and base plate, very robust center pin bolted and secured. The swivel head is additionally reinforced with specially formed and hardened bearing shells.
Plain bearings in the wheels.
Note:Wheel axle bolted. The wheels are particularly shock and impact proof and have high abrasion resistance.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1771_LST Swivel casters with stop top 257 kB

Drawings

Swivel casters with stop top
Swivel casters with stop top

Item selection/filter

Order No.ItemVersion 1Wheel
bearing
ABB1B2B3DD1HLL1RPermissible
load
kg
CADAcc.PriceOrder
K1771.100372Swivel casterwith stop-top locking systemplain bearing453760-8510091401008095280 162.97 $ (USD)
K1771.125402Swivel casterwith stop-top locking systemplain bearing454060-85125916510080107,5300 169.82 $ (USD)
K1771.150502Swivel casterwith stop-top locking systemplain bearing6550807511015011197140105140400 210.38 $ (USD)
K1771.200502Swivel casterwith stop-top locking systemplain bearing7050807511020011245140105170600 249.34 $ (USD)
