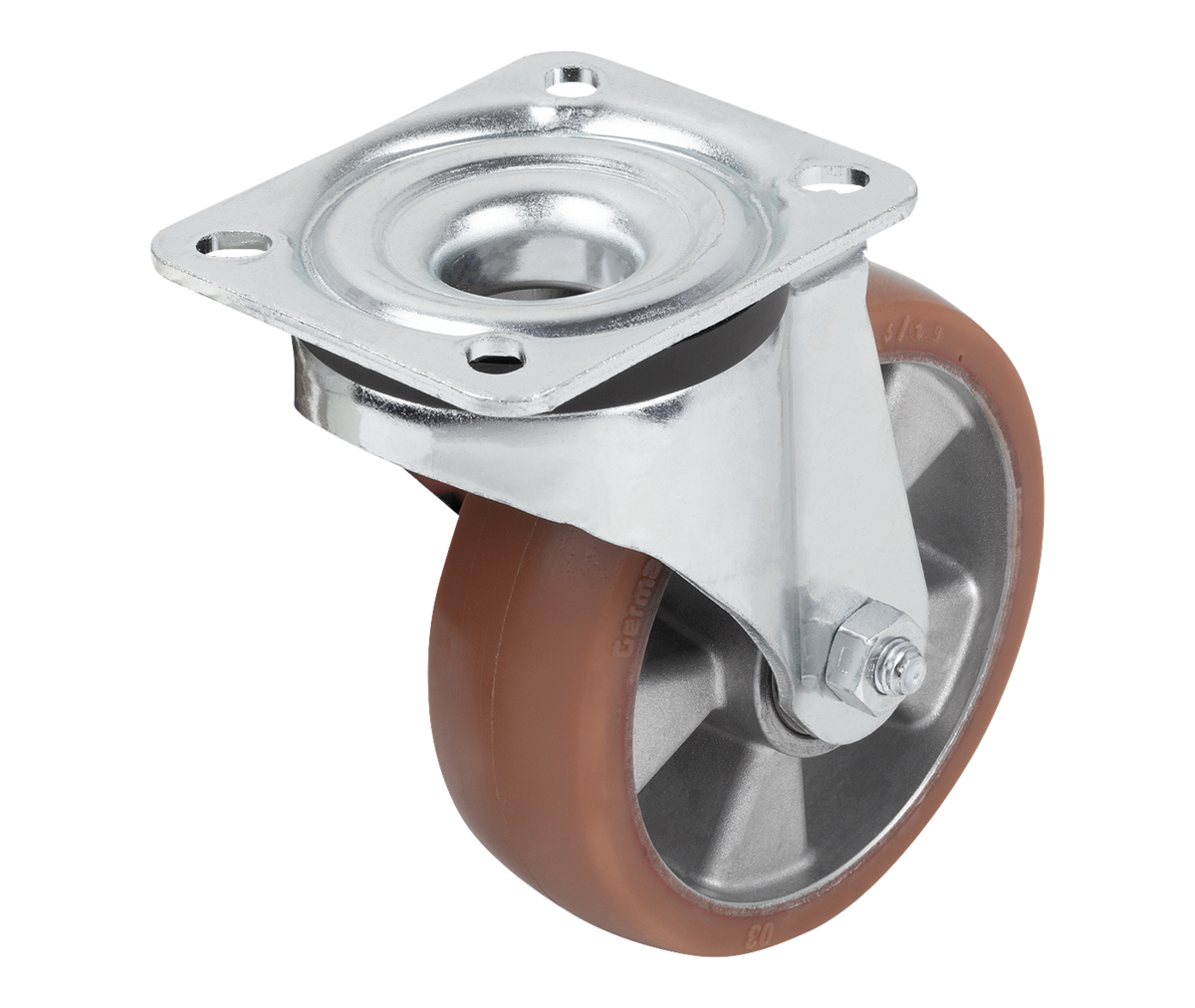

Item description/product images

DescriptionMaterial:Housing, steel plate.
Wheel tread, high quality polyurethane elastomere.
Wheel rims, die-cast aluminum.Version:Housing, press-formed.
Swivel housing, double-row ball bearings in a swivel head.
Ball bearing wheel axle bearings.Note:Wheel axle bolted.
Swivel and fixed casters with mounting plate.Application:Heavy loads can be easily transported using this load handling equipment. The roll and swivel resistance is reduced with this new wheel series designed for intralogistic heavy load applications.Temperature range:-25 °C to +70 °CSpecial features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1788_L Swivel casters

273 kB

Drawings

Item selection/filter

Order No.	Item	Wheel bearing	A	B	B1	B2	B3	D	D1	H	L	L1	L2	Permissible load kg	Price
K1788.101000401	Swivel caster	ball bearing	45	40	60	55	85	100	9	130	100	80	76	350	189.34 $ (USD)
K1788.101000403	Swivel caster	ball bearing	45	40	80	75	110	100	11	130	140	105	-	350	193.46 $ (USD)
K1788.101250401	Swivel caster	ball bearing	48	40	60	55	85	125	9	155	100	80	76	350	211.87 $ (USD)
K1788.101250403	Swivel caster	ball bearing	48	40	80	75	110	125	11	155	140	105	-	350	217.20 $ (USD)
K1788.10150050	Swivel caster	ball bearing	63	50	80	75	110	150	11	197	140	105	-	500	330.82 $ (USD)
K1788.10160050	Swivel caster	ball bearing	63	50	80	75	110	160	11	202	140	105	-	550	367.58 $ (USD)
K1788.10200050	Swivel caster	ball bearing	65	50	80	75	110	200	11	245	140	105	-	600	430.70 $ (USD)
