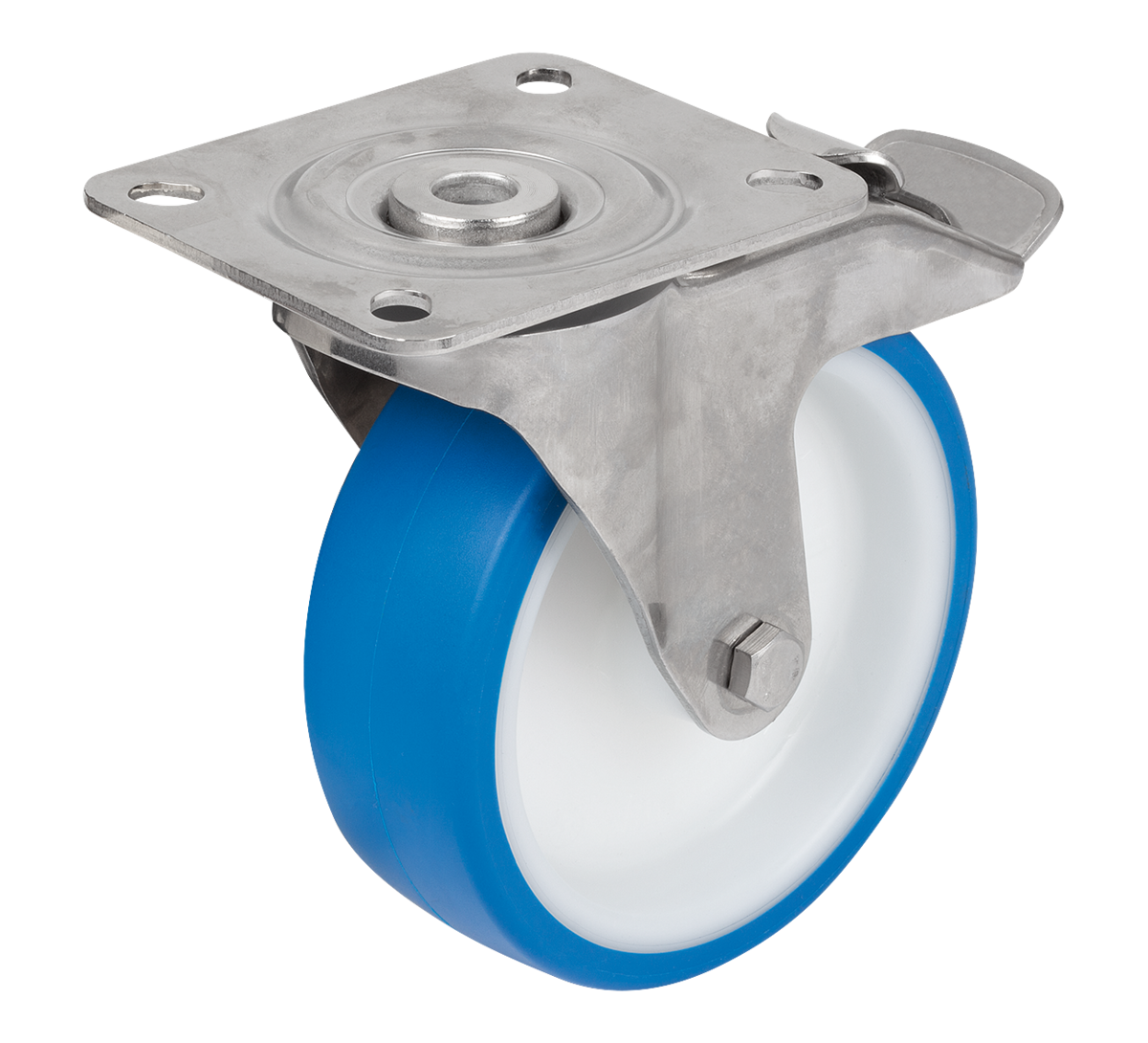

Swivel casters, stainless steel, for sterile areas

go back

Products
- Material handling
  - Wheels and rollers
    - Swivel and fixed casters stainless steel, for sterile areas
      - Swivel casters, stainless steel, for sterile areas

Item description/product images

DescriptionMaterial:Housing stainless steel 1.4301 (AISI 304 equivalent).
Wheel rim, high-quality thermoplastic polyurethane.
Wheel tread, high-quality polyamide.
Version:Housing press styleed.
Double ball bearing in the caster head.
Plain bearing in wheels.Note:Wheel axle bolted.
Swivel and fixed casters with mounting plate.Application:Loads can be transported with low noise and maximum ease in area's with high hygiene requirements.Temperature range:-20 °C - +70 °C.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1790_L Swivel casters, stainless steel, for sterile areas

256 kB

Drawings

Item selection/filter

Order No.	Item	Wheel bearing	A	B	B1	B2	B3	D	D1	H	L	L1	L2	R	Permissible load kg	Price

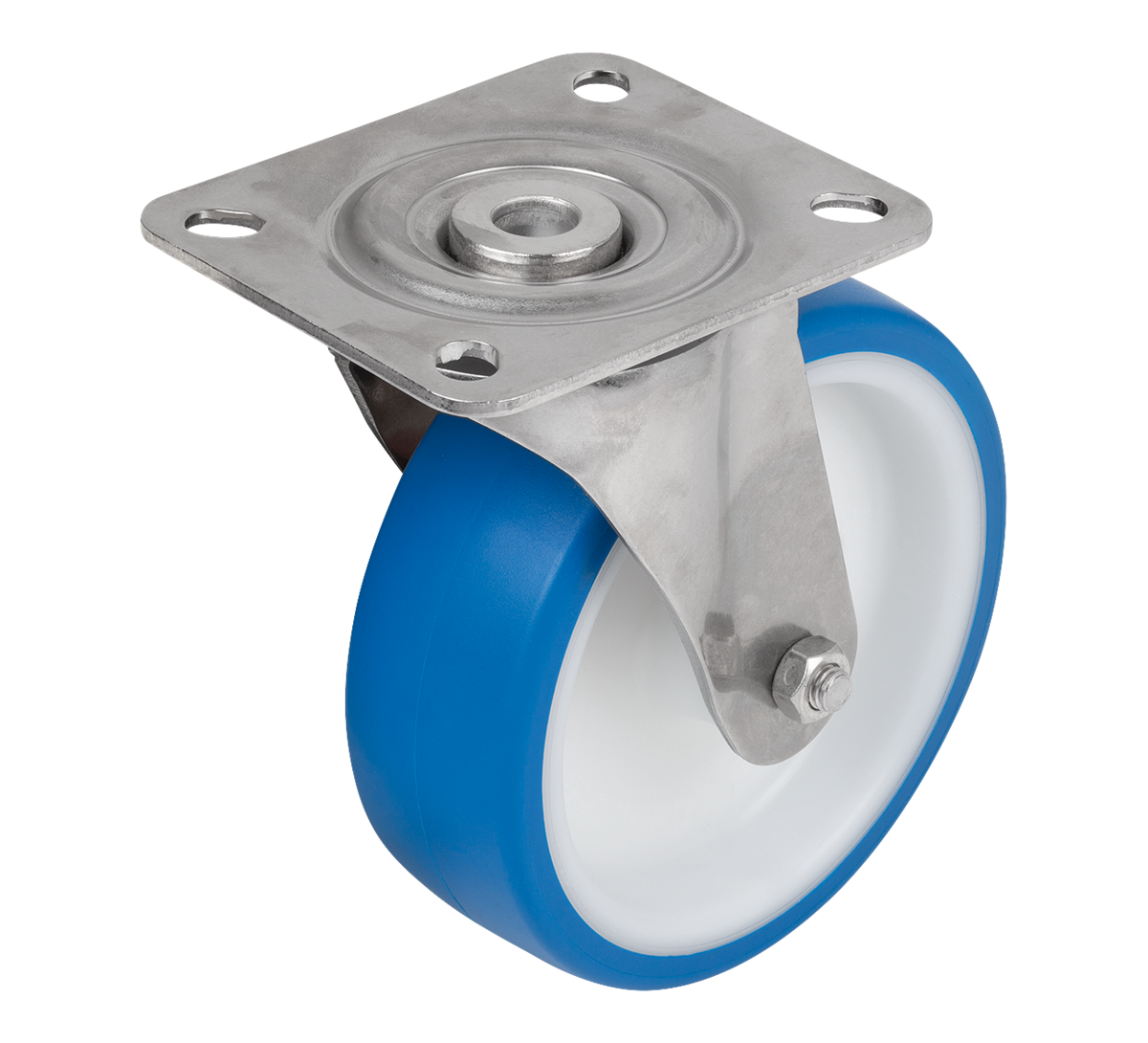

K1790.21100035	Swivel caster	plain bearing	30	35	60	55	85	100	9	125	100	80	76	80	200	174.89 $ (USD)
K1790.21125040	Swivel caster	plain bearing	40	40	60	55	85	125	9	150	100	80	76	102,5	250	207.23 $ (USD)
K1790.21160045	Swivel caster	plain bearing	60	45	80	75	110	160	11	195	140	105	-	140	400	337.96 $ (USD)
K1790.21200050	Swivel caster	plain bearing	65	50	80	75	110	200	11	235	140	105	-	165	400	425.45 $ (USD)
