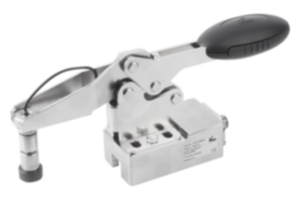

K1463Stainless steel toggle clamp, horizontal with force sensor |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Clamp stainless steel. Grip polyamide. Force sensor stainless steel. Electronics housing stainless steel.

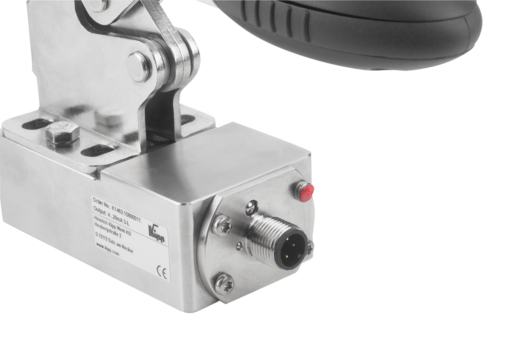

Spacer body stainless steel. Grub screw stainless steel. Protective cap thermoplastic.Version:Stainless steel parts bright. Protective cap black.Note:incl. 1 set clamping elements K1464Technical data:Force sensor: Nom. force Fnom: clamping force F4 Calibration range: 0 - clamping force F4 Overall system accuracy: 5% Fnom Limit force FL: 120% Fnom Breaking force FB: >200% Fnom Nom. temp. range BT,nom: -20 - +60 °C Amplifier electronics: Operating voltage: 10 - 30 V DC Output signal (rated output) Cnom: 4 - 20 mA 3-wire Permitted load: <(Ub- 10V)/0.024 A Electrical connection: M12x1 Pin assignment: 1: UB+ 2: - 3: 0V / S- 4: S+ Protection class: IP66 Application:Toggle clamps are used to hold and clamp workpieces. They are used as mounting and holding fixtures. The toggle clamp with force sensor enables measurement and adjustment of the retaining force. Workpieces can be defined and the retaining force recorded.

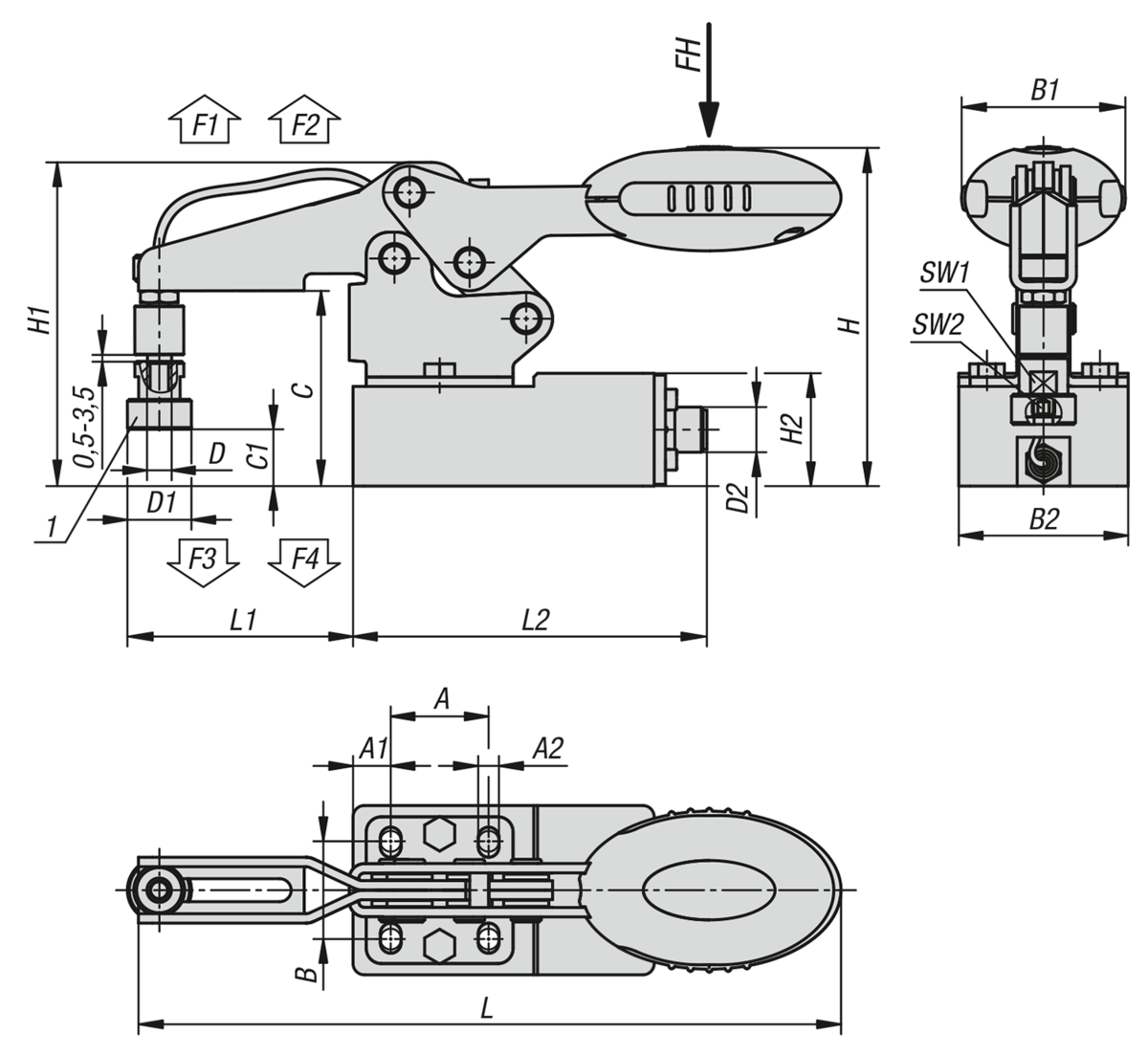

The clamping element is used to adjust the retaining force. Clamping elements with different heights are available for workpieces with different thicknesses.Accessory:K1464Drawing reference:1) Clamping element K1464 Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No. | Component color | A | A1 | A2 | B | B1 | B2 | C | C1 | D | D1 | D2 | H | H1 | H2 | L | L1 | L2 | SW1 | SW2 | CAD | Acc. | Price | Order |
---|
K1463.10600311 | traffic red RAL 3020 | 26 | 10 | 5,5 | 26 | 43,5 | 45 | 51,9 | maks. 16,4 | M6 | 17 | M12x1 | 90,2 | 86,1 | 30 | 186,6 | 60 | 94 | 11 | 3 | | | 1,771.60 $ (USD) | | K1463.10800311 | traffic red RAL 3020 | 26 | 10 | 6,2 | 26 | 41,5 | 45 | 58,7 | maks. 18,4 | M8 | 17 | M12x1 | 100,4 | 96,6 | 30 | 223,1 | 73,5 | 94 | 11 | 4 | | | 1,878.89 $ (USD) | | K1463.10600011 | black gray RAL 7021 | 26 | 10 | 5,5 | 26 | 43,5 | 45 | 51,9 | maks. 16,4 | M6 | 17 | M12x1 | 90,2 | 86,1 | 30 | 186,6 | 60 | 94 | 11 | 3 | | | 1,771.60 $ (USD) | | K1463.10800011 | black gray RAL 7021 | 26 | 10 | 6,2 | 26 | 41,5 | 45 | 58,7 | maks. 18,4 | M8 | 17 | M12x1 | 100,4 | 96,6 | 30 | 223,1 | 73,5 | 94 | 11 | 4 | | | 1,878.89 $ (USD) | |
Order No. | Component color | Opening angle of holding arm | Opening angle of handle | Hand force FH N | Retaining force F1 N | Retaining force F2 N | Clamping force F3 N | Clamping force F4 N | Output signal | CAD | Acc. | Price | Order |
---|
K1463.10600311 | traffic red RAL 3020 | 86° | 67° | 160 | 1350 | 1900 | 720 | 1200 | 4-20mA | | | 1,771.60 $ (USD) | | K1463.10800311 | traffic red RAL 3020 | 86° | 67° | 200 | 2000 | 2800 | 830 | 1400 | 4-20mA | | | 1,878.89 $ (USD) | | K1463.10600011 | black gray RAL 7021 | 86° | 67° | 160 | 1350 | 1900 | 720 | 1200 | 4-20mA | | | 1,771.60 $ (USD) | | K1463.10800011 | black gray RAL 7021 | 86° | 67° | 200 | 2000 | 2800 | 830 | 1400 | 4-20mA | | | 1,878.89 $ (USD) | |
