Indexing plunger with status sensor, Style C

go back

Products
- Product Lines
  - FEATUREgrip
    - Indexing plunger with status sensor
      - Indexing plunger with status sensor, Style C

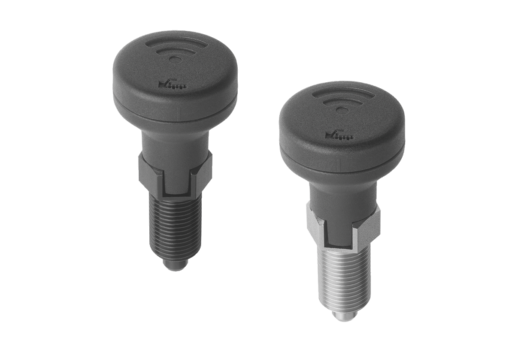

Item description/product images

DescriptionMaterial:Steel version:
Threaded body and indexing pin free-cutting steel.

Stainless-steel version:
Indexing pin hardened:
Threaded body 1.4305 (AISI 303 equivalent).
Indexing pin 1.4034 (AISI 420 equivalent).

Indexing pin not hardened:
Threaded body 1.4305 (AISI 303 equivalent).
Indexing pin 1.4305 (AISI 303 equivalent).

Mushroom knob and cover thermoplastic.Version:Steel version:
Threaded body, black oxidized.
Indexing pin hardened, ground and black oxidized.

Stainless-steel version:
Threaded sleeve bright.
Indexing pin hardened, ground and bright.
Indexing pin not hardened, ground and bright.

Mushroom knob dark gray.
Cover translucent gray.Application:Indexing plungers with status sensor allow actuation-dependent process control. It is also possible to ensure that the indexing pin is in the desired actuation status.Benefits:Wireless transfer of actuation status.
Laborious cable connections no longer necessary.
Intelligent battery management allows long running time
No interfering edges.Accessory:K1494 GatewaySafety:Indexing plungers with status sensor are not suitable for personnel safety functions.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1495_C Indexing plunger with status sensor, Style C

300 kB

Technical note on indexing plungers with status sensor

34,5 kB

Bedienungsanleitung/User manual

1 MB

Konformitätserklärung / EC Declaration of Conformity

1,1 MB

Drawings

Item selection/filter

Order No.	style	Main material	Surface finish body	D	D1	D2	Travel S	L	L1	L2	L3	SW1	Fx30°	Travel S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
K1495.3105	C	steel	hardened	5	M10x1	35	5	57	17	7	15	13	1,3	5	5	12	248.18 $ (USD)
K1495.3206	C	steel	hardened	6	M12x1,5	35	6	62	20	8	17	14	1,8	6	6	14	250.65 $ (USD)
K1495.3308	C	steel	hardened	8	M16x1,5	35	8	76	26	10	23	19	2,3	8	15	35	253.10 $ (USD)
K1495.3410	C	steel	hardened	10	M20x1,5	35	10	82	28	12	25	22	2,8	10	15	34	260.46 $ (USD)
K1495.3412	C	steel	hardened	12	M20x1,5	35	12	86	28	14	25	22	2,8	12	15	39	265.36 $ (USD)
K1495.03105	C	stainless steel	hardened	5	M10x1	35	5	57	17	7	15	13	1,3	5	5	12	262.93 $ (USD)
K1495.03206	C	stainless steel	hardened	6	M12x1,5	35	6	62	20	8	17	14	1,8	6	6	14	265.36 $ (USD)
K1495.03308	C	stainless steel	hardened	8	M16x1,5	35	8	76	26	10	23	19	2,3	8	15	35	272.77 $ (USD)
K1495.03410	C	stainless steel	hardened	10	M20x1,5	35	10	82	28	12	25	22	2,8	10	15	34	277.67 $ (USD)
K1495.03412	C	stainless steel	hardened	12	M20x1,5	35	12	86	28	14	25	22	2,8	12	15	39	282.58 $ (USD)
K1495.13105	C	stainless steel	not hardened	5	M10x1	35	5	57	17	7	15	13	1,3	5	5	12	262.93 $ (USD)
K1495.13206	C	stainless steel	not hardened	6	M12x1,5	35	6	62	20	8	17	14	1,8	6	6	14	265.36 $ (USD)
K1495.13308	C	stainless steel	not hardened	8	M16x1,5	35	8	76	26	10	23	19	2,3	8	15	35	272.77 $ (USD)
K1495.13410	C	stainless steel	not hardened	10	M20x1,5	35	10	82	28	12	25	22	2,8	10	15	34	277.67 $ (USD)
K1495.13412	C	stainless steel	not hardened	12	M20x1,5	35	12	86	28	14	25	22	2,8	12	15	39	282.58 $ (USD)
