Levelling feet in Hygienic DESIGN, style B

go back

Products
- Product Lines
  - NOVOnox hygienic
    - Levelling feet in Hygienic DESIGN
      - Levelling feet in Hygienic DESIGN, style B

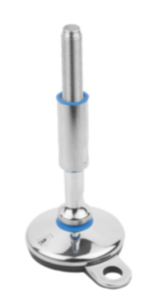

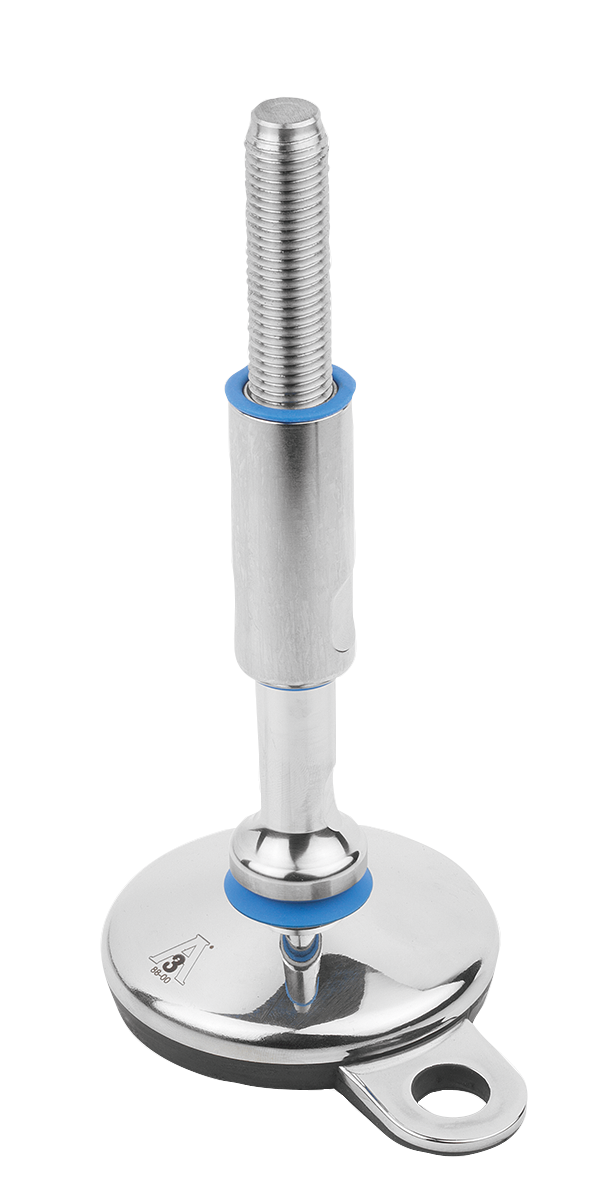

Item description/product images

DescriptionMaterial:Foot plate and threaded spindle stainless steel 1.4301 (AISI 304 equivalent).
Rubber base (NBR) Shore 85 +/-5, FDA tested.
Rubber seal, silicone, FDA tested.Version:Foot plate, high-gloss polished.
Threaded spindle, bright.
Rubber base, black.
Rubber seal, blue.Note:Certified according to 3-A Sanitary Standard.

The high surface quality, the double sealing of the thread and the special seal on the machine foot's spindle joint prevent dirt from sticking and reduce cleaning times to a minimum.

The machine foot is supplied with the 3-A logo.Application:The machine foot is particularly suitable for machines, plants and appliances in the foodstuff industry, breweries, dairies, beverage and pharmaceutical industries.Accessory:Hygienic USIT® sealing and shim washer K1491.
Hexagon cap nut with collar K1493.Drawing reference:

1) Adjustment range

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1303_B Levelling feet in Hygienic DESIGN, style B

209 kB

Drawings

Item selection/filter

Order No.	style	A	D	D1	D2	H	H1	H2	H3	L	L1	L2	L3	SW	SW1	Load rating max. kN (static load only)	Price
K1303.206012X140	B	45	60	M12	24	23	191	51	112	79	60	45	140	13	20	10	119.97 $ (USD)
K1303.206012X190	B	45	60	M12	24	23	241	51	137	104	85	70	190	13	20	10	143.58 $ (USD)
K1303.206016X140	B	45	60	M16	24	23	191	51	112	79	60	45	140	13	20	10	119.97 $ (USD)
K1303.206016X190	B	45	60	M16	24	23	241	51	137	104	85	70	190	13	20	10	143.86 $ (USD)
K1303.208016X140	B	54	80	M16	24	25	193	53	114	79	60	45	140	13	20	20	123.24 $ (USD)
K1303.208016X190	B	54	80	M16	24	25	243	53	139	104	85	70	190	13	20	20	146.79 $ (USD)
K1303.208020X140	B	54	80	M20	30	25	193	53	114	79	60	45	140	17	26	20	129.10 $ (USD)
K1303.208020X190	B	54	80	M20	30	25	243	53	139	104	85	70	190	17	26	20	148.09 $ (USD)
K1303.208024X140	B	54	80	M24	35	25	193	53	114	79	60	45	140	20	30	20	139.86 $ (USD)
K1303.208024X190	B	54	80	M24	35	25	243	53	139	104	85	70	190	20	30	20	157.81 $ (USD)
K1303.210016X140	B	69	100	M16	24	28	196	56	117	79	60	45	140	13	20	25	130.40 $ (USD)
K1303.210016X190	B	69	100	M16	24	28	246	56	142	104	85	70	190	13	20	25	153.95 $ (USD)
K1303.210020X140	B	69	100	M20	30	28	196	56	117	79	60	45	140	17	26	25	136.26 $ (USD)
K1303.210020X190	B	69	100	M20	30	28	246	56	142	104	85	70	190	17	26	25	155.25 $ (USD)
K1303.210024X140	B	69	100	M24	35	28	196	56	117	79	60	45	140	20	30	25	147.05 $ (USD)
K1303.210024X190	B	69	100	M24	35	28	246	56	142	104	85	70	190	20	30	25	164.95 $ (USD)
