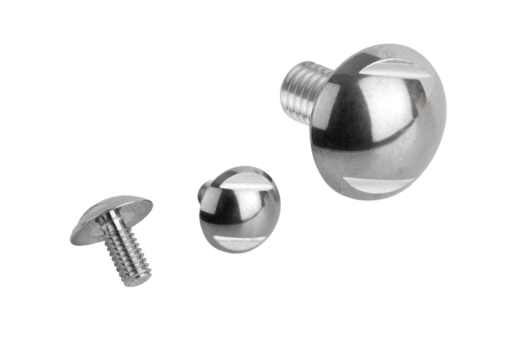

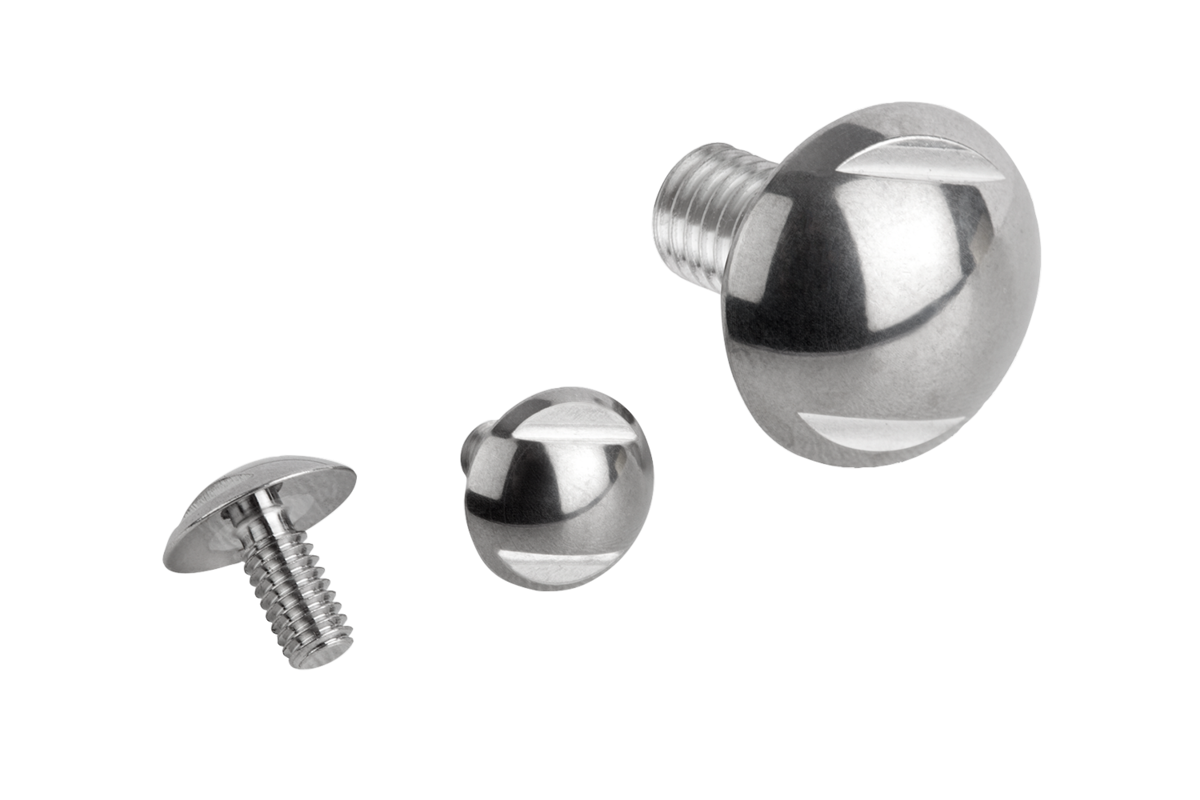

K1329Ball head screw in Hygienic DESIGN |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Stainless steel 1.4404 (AISI 316L equivalent).Version:Polished.Note:Ideal elements for fastening cladding panels, Plexiglas covers etc. The oversized flange and the thread undercut ensure a stress-free, unistyle force distribution on the respective surfaces. Projecting edges are kept to a minimum by the head height being kept as low as possible. An open-end spanner is used to screw the fastener in.
The surface of the ball head screw is polished and, with regard to design optimised for the use in hygienic environments. The surface is polished to a surface finish of less than Ra 0.8 µm. Dirt and residue from products or cleaners seldom adheres and easy cleaning is ensured.Accessory:For damage-free tightening and loosening of the screw we recommend the open-end spanners together with the protective caps (K1362).Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

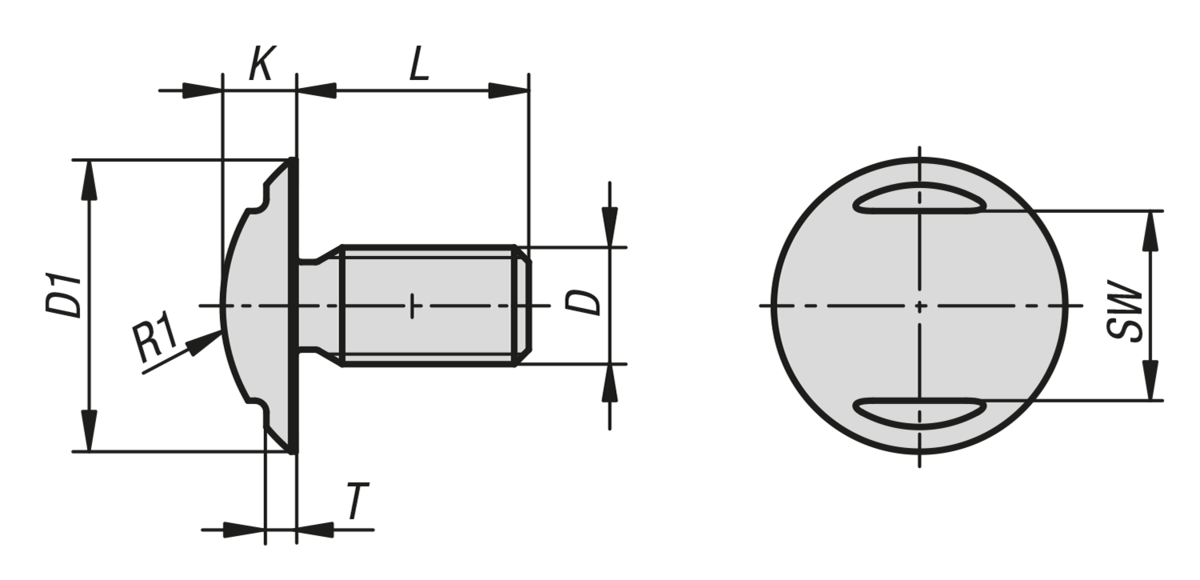

| Order No. | D
| D1 | K | T | SW | R1 | L | CAD | Acc. | Price | Order |
|---|
| K1329.03X4 | M3 | 8 | 2 | 0,6 | 5 | 5,2 | 4 |  | | 8.59 $ (USD) | | | K1329.03X5 | M3 | 8 | 2 | 0,6 | 5 | 5,2 | 5 | | | 8.59 $ (USD) | | | K1329.03X6 | M3 | 8 | 2 | 0,6 | 5 | 5,2 | 6 | | | 8.75 $ (USD) | | | K1329.03X8 | M3 | 8 | 2 | 0,6 | 5 | 5,2 | 8 | | | 8.82 $ (USD) | | | K1329.03X10 | M3 | 8 | 2 | 0,6 | 5 | 5,2 | 10 | | | 8.98 $ (USD) | | | K1329.03X12 | M3 | 8 | 2 | 0,6 | 5 | 5,2 | 12 | | | 9.94 $ (USD) | | | K1329.03X16 | M3 | 8 | 2 | 0,6 | 5 | 5,2 | 16 | | | 10.29 $ (USD) | | | K1329.03X20 | M3 | 8 | 2 | 0,6 | 5 | 5,2 | 20 | | | 10.72 $ (USD) | | | K1329.03X25 | M3 | 8 | 2 | 0,6 | 5 | 5,2 | 25 | | | 11.12 $ (USD) | | | K1329.03X30 | M3 | 8 | 2 | 0,6 | 5 | 5,2 | 30 | | | 11.63 $ (USD) | | | K1329.04X6 | M4 | 11 | 3 | 1 | 6 | 6,7 | 6 | | | 8.94 $ (USD) | | | K1329.04X5 | M4 | 11 | 3 | 1 | 6 | 6,7 | 5 | | | 8.94 $ (USD) | | | K1329.04X8 | M4 | 11 | 3 | 1 | 6 | 6,7 | 8 | | | 9.12 $ (USD) | | | K1329.04X10 | M4 | 11 | 3 | 1 | 6 | 6,7 | 10 | | | 9.20 $ (USD) | | | K1329.04X12 | M4 | 11 | 3 | 1 | 6 | 6,7 | 12 | | | 9.23 $ (USD) | | | K1329.04X16 | M4 | 11 | 3 | 1 | 6 | 6,7 | 16 | | | 11.28 $ (USD) | | | K1329.04X20 | M4 | 11 | 3 | 1 | 6 | 6,7 | 20 | | | 11.68 $ (USD) | | | K1329.04X25 | M4 | 11 | 3 | 1 | 6 | 6,7 | 25 | | | 12.18 $ (USD) | | | K1329.04X30 | M4 | 11 | 3 | 1 | 6 | 6,7 | 30 | | | 12.70 $ (USD) | | | K1329.05X6 | M5 | 14 | 4 | 1 | 8 | 8,6 | 6 | | | 9.44 $ (USD) | | | K1329.05X8 | M5 | 14 | 4 | 1 | 8 | 8,6 | 8 | | | 9.76 $ (USD) | | | K1329.05X10 | M5 | 14 | 4 | 1 | 8 | 8,6 | 10 | | | 9.92 $ (USD) | | | K1329.05X12 | M5 | 14 | 4 | 1 | 8 | 8,6 | 12 | | | 10.14 $ (USD) | | | K1329.05X16 | M5 | 14 | 4 | 1 | 8 | 8,6 | 16 | | | 10.35 $ (USD) | | | K1329.05X20 | M5 | 14 | 4 | 1 | 8 | 8,6 | 20 | | | 12.85 $ (USD) | | | K1329.05X25 | M5 | 14 | 4 | 1 | 8 | 8,6 | 25 | | | 13.38 $ (USD) | | | K1329.05X30 | M5 | 14 | 4 | 1 | 8 | 8,6 | 30 | | | 13.98 $ (USD) | | | K1329.06X8 | M6 | 17 | 5 | 1,5 | 10 | 10 | 8 | | | 10.19 $ (USD) | | | K1329.06X10 | M6 | 17 | 5 | 1,5 | 10 | 10 | 10 | | | 10.48 $ (USD) | | | K1329.06X12 | M6 | 17 | 5 | 1,5 | 10 | 10 | 12 | | | 10.75 $ (USD) | | | K1329.06X16 | M6 | 17 | 5 | 1,5 | 10 | 10 | 16 | | | 11.15 $ (USD) | | | K1329.06X20 | M6 | 17 | 5 | 1,5 | 10 | 10 | 20 | | | 11.44 $ (USD) | | | K1329.06X25 | M6 | 17 | 5 | 1,5 | 10 | 10 | 25 | | | 15.17 $ (USD) | | | K1329.06X30 | M6 | 17 | 5 | 1,5 | 10 | 10 | 30 | | | 15.79 $ (USD) | | | K1329.08X10 | M8 | 20 | 5 | 1,5 | 13 | 13 | 10 | | | 10.58 $ (USD) | | | K1329.08X12 | M8 | 20 | 5 | 1,5 | 13 | 13 | 12 | | | 10.88 $ (USD) | | | K1329.08X16 | M8 | 20 | 5 | 1,5 | 13 | 13 | 16 | | | 11.39 $ (USD) | | | K1329.08X20 | M8 | 20 | 5 | 1,5 | 13 | 13 | 20 | | | 11.78 $ (USD) | | | K1329.08X25 | M8 | 20 | 5 | 1,5 | 13 | 13 | 25 | | | 11.92 $ (USD) | | | K1329.08X30 | M8 | 20 | 5 | 1,5 | 13 | 13 | 30 | | | 17.28 $ (USD) | | | K1329.08X35 | M8 | 20 | 5 | 1,5 | 13 | 13 | 35 | | | 18.00 $ (USD) | | | K1329.08X40 | M8 | 20 | 5 | 1,5 | 13 | 13 | 40 | | | 18.78 $ (USD) | | | K1329.10X12 | M10 | 22 | 6 | 1,5 | 15 | 13,5 | 12 | | | 13.92 $ (USD) | | | K1329.10X16 | M10 | 22 | 6 | 1,5 | 15 | 13,5 | 16 | | | 14.29 $ (USD) | | | K1329.10X20 | M10 | 22 | 6 | 1,5 | 15 | 13,5 | 20 | | | 14.74 $ (USD) | | | K1329.10X25 | M10 | 22 | 6 | 1,5 | 15 | 13,5 | 25 | | | 15.09 $ (USD) | | | K1329.10X30 | M10 | 22 | 6 | 1,5 | 15 | 13,5 | 30 | | | 15.41 $ (USD) | | | K1329.10X35 | M10 | 22 | 6 | 1,5 | 15 | 13,5 | 35 | | | 17.47 $ (USD) | | | K1329.10X37 | M10 | 22 | 6 | 1,5 | 15 | 13,5 | 37 | | | 17.73 $ (USD) | | | K1329.10X40 | M10 | 22 | 6 | 1,5 | 15 | 13,5 | 40 | | | 18.62 $ (USD) | | | K1329.12X16 | M12 | 27 | 7,5 | 1,5 | 19 | 16,3 | 16 | | | 16.58 $ (USD) | | | K1329.12X20 | M12 | 27 | 7,5 | 1,5 | 19 | 16,3 | 20 | | | 17.10 $ (USD) | | | K1329.12X25 | M12 | 27 | 7,5 | 1,5 | 19 | 16,3 | 25 | | | 18.00 $ (USD) | | | K1329.12X30 | M12 | 27 | 7,5 | 1,5 | 19 | 16,3 | 30 | | | 18.74 $ (USD) | | | K1329.12X35 | M12 | 27 | 7,5 | 1,5 | 19 | 16,3 | 35 | | | 19.50 $ (USD) | | | K1329.12X40 | M12 | 27 | 7,5 | 1,5 | 19 | 16,3 | 40 | | | 22.35 $ (USD) | | | K1329.16X20 | M16 | 36 | 9 | 1,5 | 24 | 23 | 20 | | | 21.82 $ (USD) | | | K1329.16X25 | M16 | 36 | 9 | 1,5 | 24 | 23 | 25 | | | 23.04 $ (USD) | | | K1329.16X30 | M16 | 36 | 9 | 1,5 | 24 | 23 | 30 | | | 24.21 $ (USD) | | | K1329.16X35 | M16 | 36 | 9 | 1,5 | 24 | 23 | 35 | | | 26.11 $ (USD) | | | K1329.16X40 | M16 | 36 | 9 | 1,5 | 24 | 23 | 40 | | | 26.80 $ (USD) | |
