Item description/product images

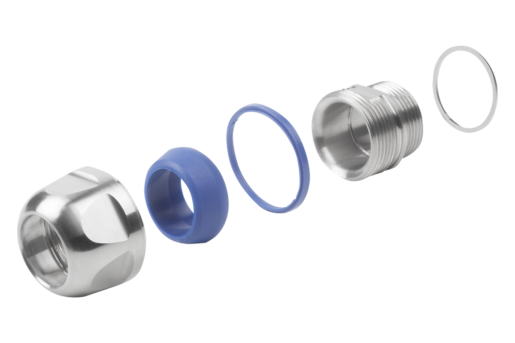

DescriptionMaterial:Stainless steel cable gland: Outer part 1.4404 (AISI 316L equivalent) Inner part 1.4305 (AISI 303 equivalent)
Plastic cable gland: Polyamide. Cable gland seal: TPU. Hose: Polyamide.Version:Cable gland: bright stainless steel, transparent plastic.
Hose: coatedNote:Washers supplied.
EN 60423 metric thread.
IP rating 66, 68 up to 15 bar, 69K.
Tension relief corresponds to EU standard 62444.
EHEDG certified.
Seal insert ADI - free
Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1453 Cable glands, stainless steel or plastic, in Hygienic DESIGN

412 kB

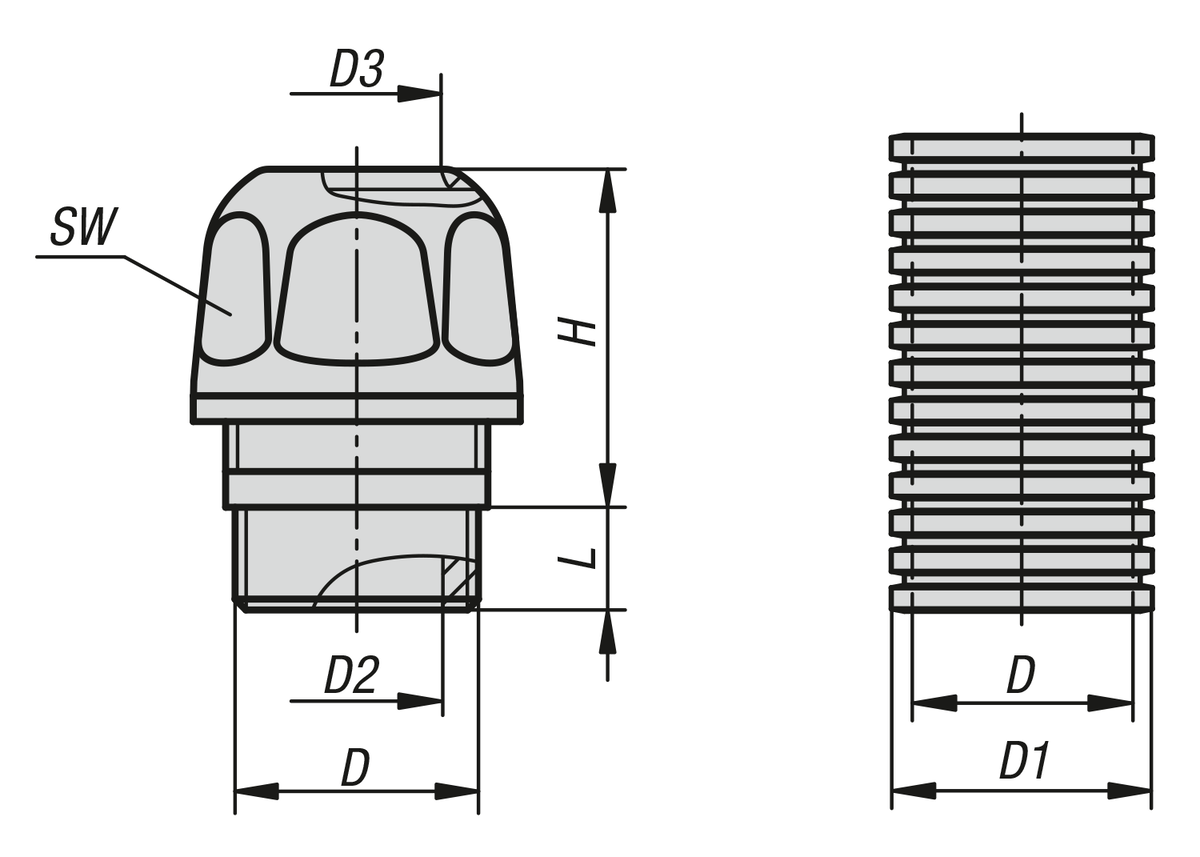

Drawings

Item selection/filter

Order No.	Item	Main material	D	D1=Outside diameter	D2	D3	H=Height	SW=key width	L=thread length	Price
K1453.12150	Cable gland	stainless steel	M12X1,5	-	8	7-5	19	17	7	77.96 $ (USD)
K1453.16150	Cable gland	stainless steel	M16x1,5	-	10	9-7	21	20	9	83.47 $ (USD)
K1453.20150	Cable gland	stainless steel	M20X1,5	-	12,5	12-9	27	24	9	91.87 $ (USD)
K1453.25150	Cable gland	stainless steel	M25x1,5	-	18,5	18-15	27	30	10	102.38 $ (USD)
K1453.32150	Cable gland	stainless steel	M32x1,5	-	25,3	23-20	27	36	11	114.98 $ (USD)
K1453.16151	Cable gland	plastic	M16x1,5	-	10	9-7	25	22	9	17.60 $ (USD)
K1453.20151	Cable gland	plastic	M20X1,5	-	12,5	12-9	29	26	9	19.30 $ (USD)
K1453.25151	Cable gland	plastic	M25x1,5	-	18,5	18-15	31	32	10	21.06 $ (USD)
K1453.32151	Cable gland	plastic	M32x1,5	-	25,3	23-20	32	38	11	23.24 $ (USD)

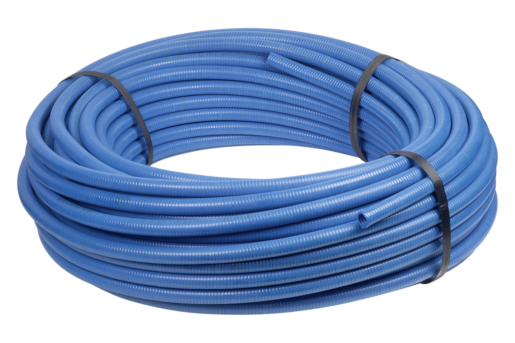

K1461.1250	Hose	plastic	11,8	16	-	-	-	-	50 m	1,374.35 $ (USD)
K1461.1750	Hose	plastic	15,6	21,6	-	-	-	-	50 m	1,469.17 $ (USD)
