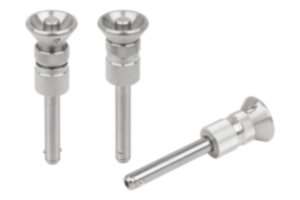

    - Ball lock pins with mushroom grip, stainless steel, with high shear strength, adjustable

Item description/product images

DescriptionMaterial:Mushroom grip, locknut, adjusting nut and push button, 1.4305 (AISI 303 equivalent) stainless steel.
Pin, 1.4542 (AISI "630" equivalent) stainless steel.
Balls, 1.4125 (AISI 440C equivalent) stainless steel.
Compression spring, 1.4310 (AISI 301 equivalent) stainless steel.Version:Bright.Note:Ball lock pins are used for easy fastening or joining of components.

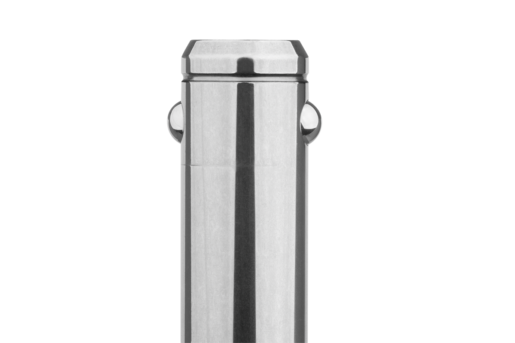

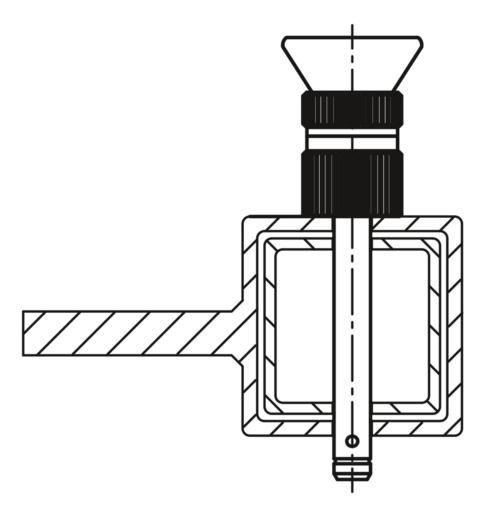

The two balls are disengaged by pressing the push button and the pin can be slipped into holes in the workpieces. When the push button is released, the balls lock the connection securely.

Shear force double shear (F) = S · τ aB max.

The values given for the shear force are the theoretical breaking load.
These are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for instyleation purposes only and do not constitute a legally binding assurance of properties.

The load values have been calculated in accordance with DIN 50141. Each user must determine individually whether the ball lock pin is suitable for the respective application.

Different materials in which the ball lock pins are used, weather conditions and wear can influence the determined values.

Ball lock pins with high shear strength are identified by a groove marking on the pin.Benefits:- Higher loading in comparison to standard ball lock pins.
- The length range is infinitely adjustable using the locknut and adjustment nut. This enables play-free positioning on the workpiece.
- The pins made from 1.4542 stainless steel are hardened, have a higher shear resistance and are extremely durable.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1299 Ball lock pins with mushroom grip, stainless steel, with high shear strength, adjustable

264 kB

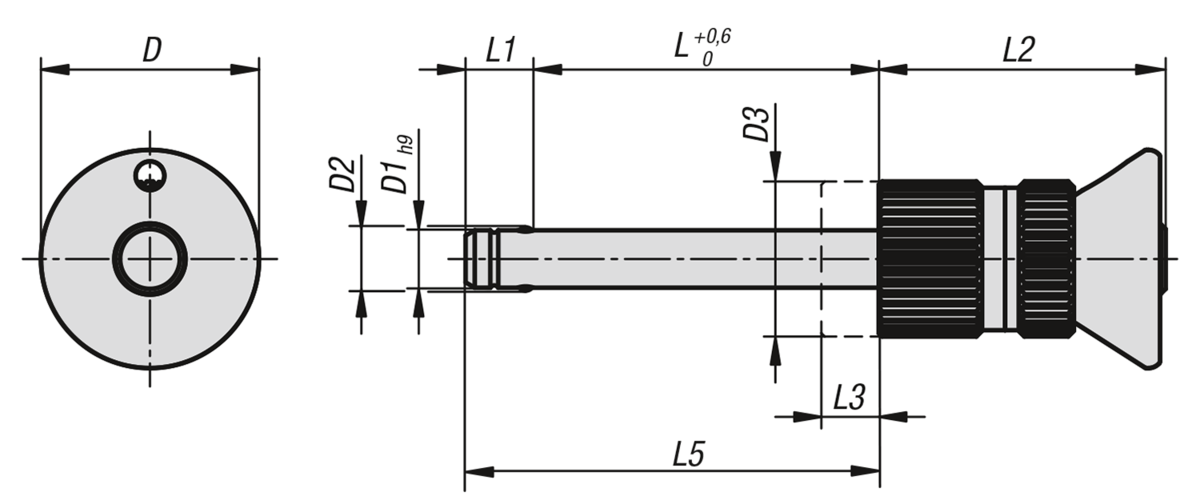

Drawings

Overview of items (compressed)

Item selection/filter

Order No.	D	D1	D2	D3	L	L1	L2	L3	L5	Receiving hole H11	Shearing force double shear max.kN	Price
K1299.11905010	19	5	5,5	13,5	2-10	5,9	25	8	7,9-15,9	5	24	49.82 $ (USD)
K1299.11905015	19	5	5,5	13,5	7-15	5,9	25	8	12,9-20,9	5	24	49.82 $ (USD)
K1299.11905020	19	5	5,5	13,5	12-20	5,9	25	8	17,9-25,9	5	24	49.82 $ (USD)
K1299.11905025	19	5	5,5	13,5	17-25	5,9	25	8	22,9-30,9	5	24	49.82 $ (USD)
K1299.11905030	19	5	5,5	13,5	22-30	5,9	25	8	27,9-35,9	5	24	51.44 $ (USD)
K1299.11906010	19	6	6,85	13,5	2-10	6,8	25	8	8,8-16,8	6	35	50.25 $ (USD)
K1299.11906015	19	6	6,85	13,5	7-15	6,8	25	8	13,8-21,8	6	35	50.25 $ (USD)
K1299.11906020	19	6	6,85	13,5	12-20	6,8	25	8	18,8-26,8	6	35	50.25 $ (USD)
K1299.11906025	19	6	6,85	13,5	17-25	6,8	25	8	23,8-31,8	6	35	50.25 $ (USD)
K1299.11906030	19	6	6,85	13,5	22-30	6,8	25	8	28,8-36,8	6	35	53.07 $ (USD)
K1299.11906035	19	6	6,85	13,5	27-35	6,8	25	8	33,8-41,8	6	35	53.07 $ (USD)
K1299.11906040	19	6	6,85	13,5	32-40	6,8	25	8	38,8-46,8	6	35	53.07 $ (USD)
K1299.11906045	19	6	6,85	13,5	37-45	6,8	25	8	43,8-51,8	6	35	53.07 $ (USD)
K1299.11906050	19	6	6,85	13,5	42-50	6,8	25	8	48,8-56,8	6	35	53.07 $ (USD)
K1299.12508020	25	8	9,5	17	10-20	7,8	33	10	17,8-27,8	8	63	53.30 $ (USD)
K1299.12508025	25	8	9,5	17	15-25	7,8	33	10	22,8-32,8	8	63	53.30 $ (USD)
K1299.12508030	25	8	9,5	17	20-30	7,8	33	10	27,8-37,8	8	63	56.43 $ (USD)
K1299.12508035	25	8	9,5	17	25-35	7,8	33	10	32,8-42,8	8	63	56.43 $ (USD)
K1299.12508040	25	8	9,5	17	30-40	7,8	33	10	37,8-47,8	8	63	56.43 $ (USD)
K1299.12508045	25	8	9,5	17	35-45	7,8	33	10	42,8-52,8	8	63	56.43 $ (USD)
K1299.12508050	25	8	9,5	17	40-50	7,8	33	10	47,8-57,8	8	63	56.43 $ (USD)
K1299.12510020	25	10	12	17	10-20	8,9	33	10	18,9-28,9	10	100	67.37 $ (USD)
K1299.12510025	25	10	12	17	15-25	8,9	33	10	23,9-33,9	10	100	67.37 $ (USD)
K1299.12510030	25	10	12	17	20-30	8,9	33	10	28,9-38,9	10	100	69.45 $ (USD)
K1299.12510035	25	10	12	17	25-35	8,9	33	10	33,9-43,9	10	100	69.45 $ (USD)
K1299.12510040	25	10	12	17	30-40	8,9	33	10	38,9-48,9	10	100	69.45 $ (USD)
K1299.12510045	25	10	12	17	35-45	8,9	33	10	43,9-53,9	10	100	69.45 $ (USD)
K1299.12510050	25	10	12	17	40-50	8,9	33	10	48,9-58,9	10	100	69.45 $ (USD)
K1299.12510060	25	10	12	17	50-60	8,9	33	10	58,9-68,9	10	100	71.72 $ (USD)
K1299.13512025	35	12	14,5	26	13-25	9,9	39,5	12	22,9-34,9	12	144	70.61 $ (USD)
K1299.13512030	35	12	14,5	26	18-30	9,9	39,5	12	27,9-39,9	12	144	72.36 $ (USD)
K1299.13512035	35	12	14,5	26	13-35	9,9	39,5	12	22,9-44,9	12	144	72.36 $ (USD)
K1299.13512040	35	12	14,5	26	28-30	9,9	39,5	12	37,9-39,9	12	144	72.36 $ (USD)
K1299.13512045	35	12	14,5	26	33-45	9,9	39,5	12	42,9-54,9	12	144	72.36 $ (USD)
K1299.13512050	35	12	14,5	26	38-50	9,9	39,5	12	47,9-59,9	12	144	72.36 $ (USD)
K1299.13512060	35	12	14,5	26	48-60	9,9	39,5	12	57,9-69,9	12	144	74.61 $ (USD)
K1299.13512070	35	12	14,5	26	58-70	9,9	39,5	12	67,9-79,9	12	144	74.61 $ (USD)
K1299.13512080	35	12	14,5	26	68-80	9,9	39,5	12	77,9-89,9	12	144	76.80 $ (USD)
K1299.13516030	35	16	19	26	18-30	13,1	39,5	12	31,1-43,1	16	257	103.43 $ (USD)
K1299.13516035	35	16	19	26	23-35	13,1	39,5	12	36,1-48,1	16	257	103.43 $ (USD)
K1299.13516040	35	16	19	26	28-40	13,1	39,5	12	41,1-53,1	16	257	103.43 $ (USD)
K1299.13516045	35	16	19	26	33-45	13,1	39,5	12	46,1-58,1	16	257	103.43 $ (USD)
K1299.13516050	35	16	19	26	38-50	13,1	39,5	12	51,1-63,1	16	257	103.43 $ (USD)
K1299.13516060	35	16	19	26	48-60	13,1	39,5	12	61,1-73,1	16	257	109.05 $ (USD)
K1299.13516070	35	16	19	26	58-70	13,1	39,5	12	71,1-83,1	16	257	109.05 $ (USD)
K1299.13516080	35	16	19	26	68-80	13,1	39,5	12	81,1-93,1	16	257	113.93 $ (USD)
