Ball transfer units with stud
 K1322

Ball transfer units with stud

 go back

Item description/product images
DescriptionMaterial:Balls stainless steel 1.4021 (AISI 420 equivalent).
Housing stainless steel 1.4301 (AISI 304 equivalent).Version:Bright.Note:The ball transfer units has a large support area.
The stud fastening allows for high stability and heavy loading.

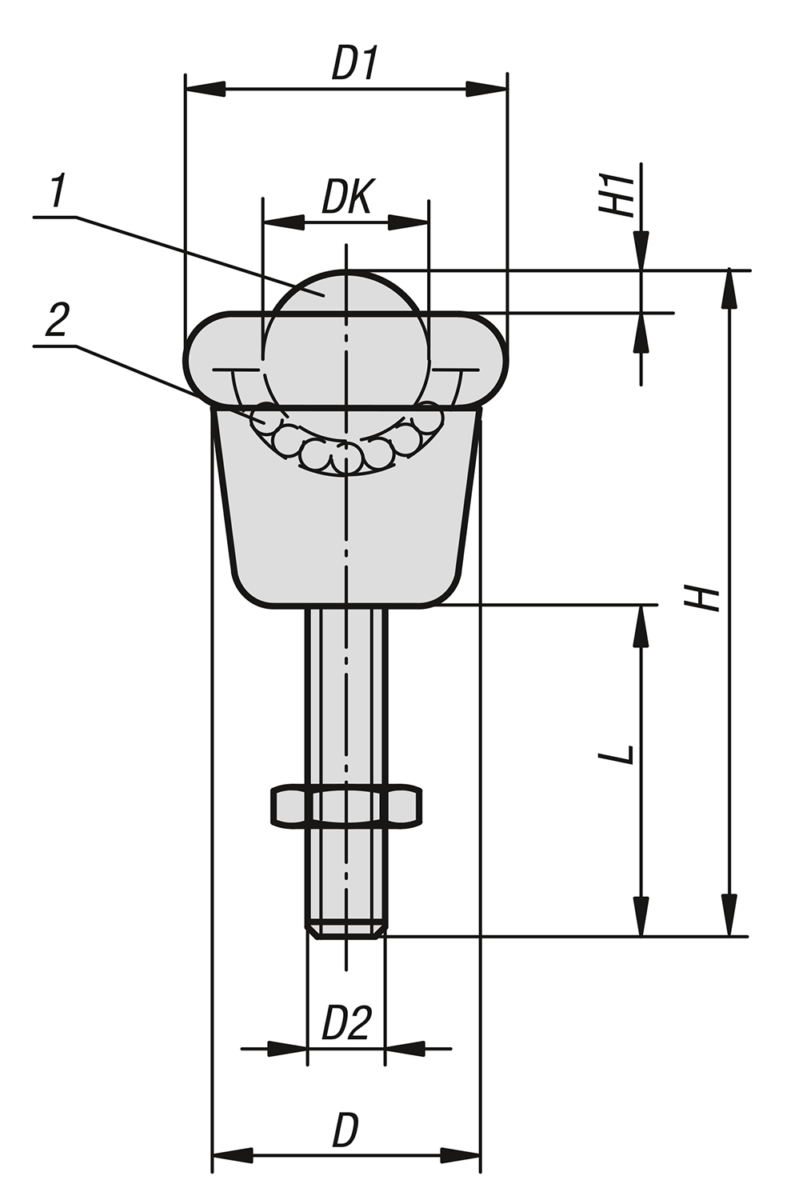

The styleed wiper seal is external.Drawing reference:
1) load ball
2) bearing balls
Special features:
Stainless steelRoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet K1322 Ball transfer units with stud 154 kB

Drawings

Ball transfer units with stud

Item selection/filter
Order No.DKD

D1D2HH1LTightening
torque of
screws Nm		Load
rating C
(N)		CADAcc.PriceOrder
K1322.1908201925,432,1M850,24,72015250 37.42 $ (USD)
K1322.1908351925,432,1M875,24,74515250 37.42 $ (USD)
