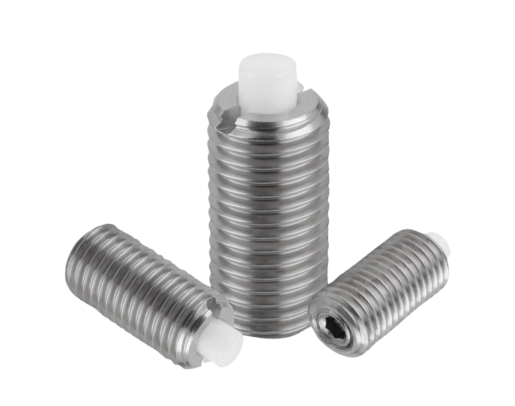

Spring plungers with hexagon socket and flattened POM thrust pin, stainless steel
K1381

Spring plungers with hexagon socket and flattened POM thrust...

go back

Item description/product images

DescriptionMaterial:body 1.4305 (AISI 303 equivalent).
Thrust pin POM.
Spring 1.4310 (AISI 301 equivalent).
Version:Bright.Note:These spring plungers are chiefly used as ejectors and spring stops in machine construction.
The thrust pin is actuated in the axial direction.

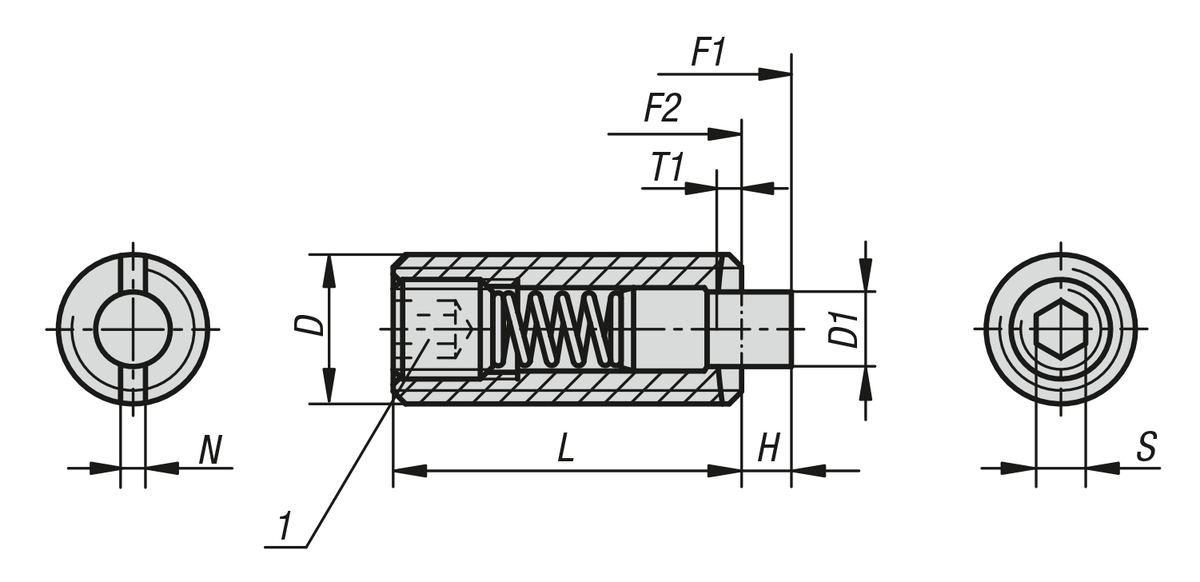

Drawing reference:
1) grub screw glued in
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1381 Spring plungers with hexagon socket and flattened POM thrust pin, stainless steel 276 kB

Drawings

Spring plungers with hexagon socket and flattened POM thrust pin, stainless steel
Spring plungers with hexagon socket and flattened POM thrust pin, stainless steel

Item selection/filter

Item No.

DD1HLTT1NSSpring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
Item No.
Installation
tool
CADAcc.PriceOrder
K1381.05M52,42,31820,80,81,5517K0317.905 10.60 $ (USD)
K1381.06M62,72,5202,5112617K0317.906 10.60 $ (USD)
K1381.08M83,532231,41,22,5729K0317.908 12.20 $ (USD)
K1381.10M1043223,51,41,63831K0317.910 14.81 $ (USD)
K1381.12M12642852241047K0317.912 18.94 $ (USD)
K1381.16M167,553262,52,553885K0317.916 29.89 $ (USD)
