Locating bushings stainless steel for ball lock pins
 K1416

Locating bushings stainless steel for ball lock pins

 go back

Item description/product images
DescriptionMaterial:

Stainless steel 1.4305 (AISI 303 equivalent).

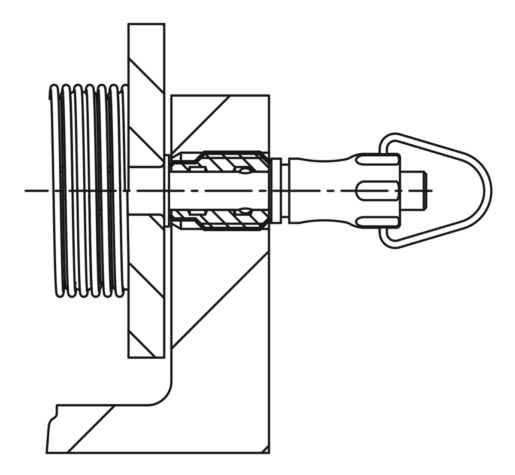

Version:Bright.Note:The locating bushings are ideal for easy and quick positioning of ball lock pins with head-end lock.Benefits:The adapter bushing can be used from both sides.
Additional centering of the adapter bushing is provided by the centering collar (D3).Drawing reference:
1) without centering
2) with centering
Special features:
Stainless steelRoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet K1416 Locating bushings stainless steel for ball lock pins 307 kB

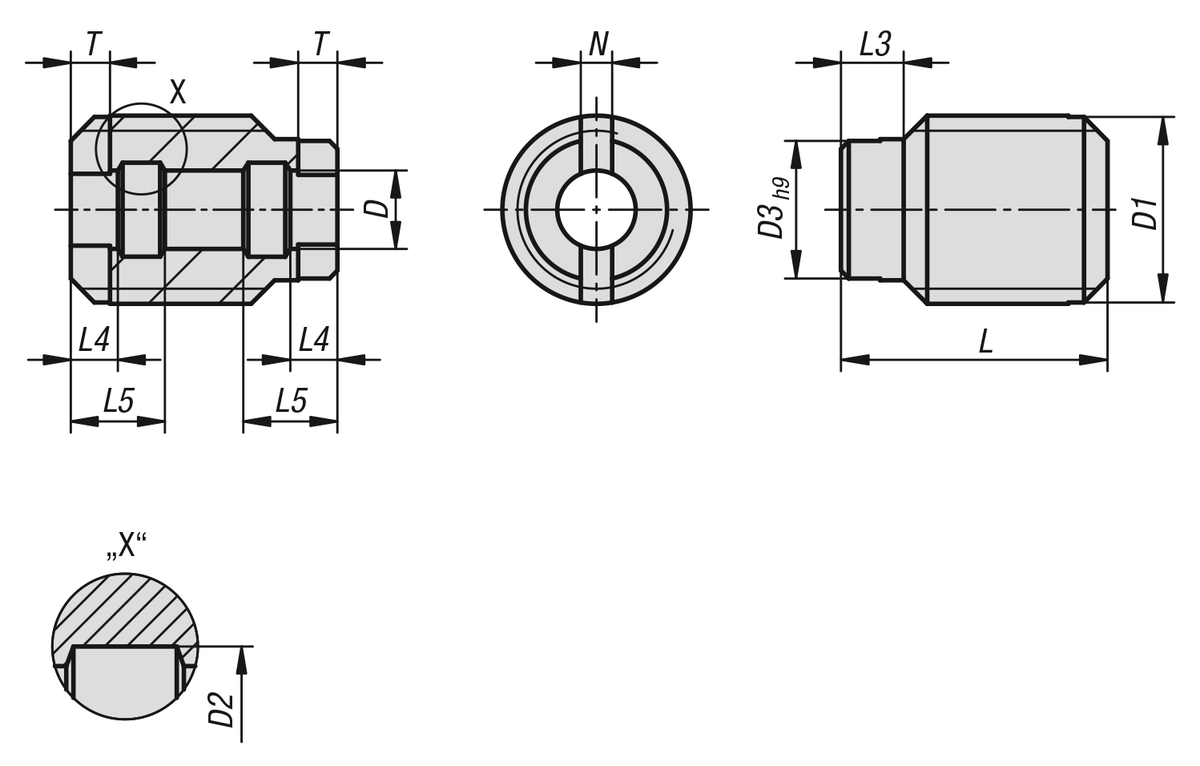

Drawings

Locating bushings stainless steel for ball lock pins

Item selection/filter
Order No.D

D1D2D3LL3L4L5NTCADAcc.PriceOrder
K1416.105125M12691743622,5 10.32 $ (USD)
K1416.106166M167,5121853722,5 11.15 $ (USD)
K1416.108168M16101220,553,58,522,5 11.73 $ (USD)
K1416.1102410M24x1,5131821,553,592,52,5 14.28 $ (USD)
K1416.1123012M30x1,5152422,553,59,52,52,5 17.15 $ (USD)
K1416.1163016M30x1,520242754,111,12,53 19.29 $ (USD)
