Pull Handles oval with thru hole

go back

Products
- Pull Handles
  - Aluminum Handles
    - Pull Handles oval with thru hole

Item description/product images

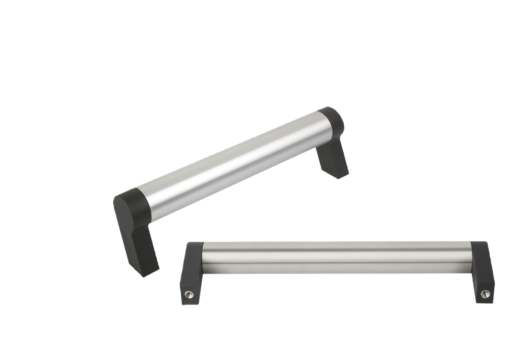

DescriptionMaterial:Oval aluminum EN AW-6060Version:Black or ruby red RAL 3003, powder-coated.Accessory:Use ISO 4762-M5/M6 cap screws for mounting the handles.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0204 Pull Handles oval with thru hole

137 kB

Drawings

Item selection/filter

Order No.	Main color	A	B	B1	D	H	L	T	Load capacity N	Price
K0204.11000105	black	100	21	13	5,5	50	113	13,6	1000	19.07 $ (USD)
K0204.11120105	black	112	21	13	5,5	50	125	13,6	1000	19.52 $ (USD)
K0204.11120106	black	112	25	17	6,6	55	129	11	1000	22.61 $ (USD)
K0204.11200105	black	120	21	13	5,5	50	133	13,6	1000	19.94 $ (USD)
K0204.11200106	black	120	25	17	6,6	55	137	11	1000	23.18 $ (USD)
K0204.11280105	black	128	21	13	5,5	50	141	13,6	1000	20.41 $ (USD)
K0204.11280106	black	128	25	17	6,6	55	145	11	1000	23.46 $ (USD)
K0204.11600105	black	160	21	13	5,5	50	173	13,6	1000	21.89 $ (USD)
K0204.11600106	black	160	25	17	6,6	55	177	11	1000	25.40 $ (USD)
K0204.11800106	black	180	25	17	6,6	55	197	11	1000	25.86 $ (USD)
K0204.11002705	ruby red	100	21	13	5,5	50	113	13,6	1000	19.07 $ (USD)
K0204.11122705	ruby red	112	21	13	5,5	50	125	13,6	1000	19.52 $ (USD)
K0204.11122706	ruby red	112	25	17	6,6	55	129	11	1000	22.61 $ (USD)
K0204.11202705	ruby red	120	21	13	5,5	50	133	13,6	1000	19.94 $ (USD)
K0204.11202706	ruby red	120	25	17	6,6	55	137	11	1000	23.18 $ (USD)
K0204.11282705	ruby red	128	21	13	5,5	50	141	13,6	1000	20.41 $ (USD)
K0204.11282706	ruby red	128	25	17	6,6	55	145	11	1000	23.46 $ (USD)
K0204.11602705	ruby red	160	21	13	5,5	50	173	13,6	1000	21.89 $ (USD)
K0204.11602706	ruby red	160	25	17	6,6	55	177	11	1000	25.40 $ (USD)
K0204.11802706	ruby red	180	25	17	6,6	55	197	11	1000	25.86 $ (USD)
