Item description/product images

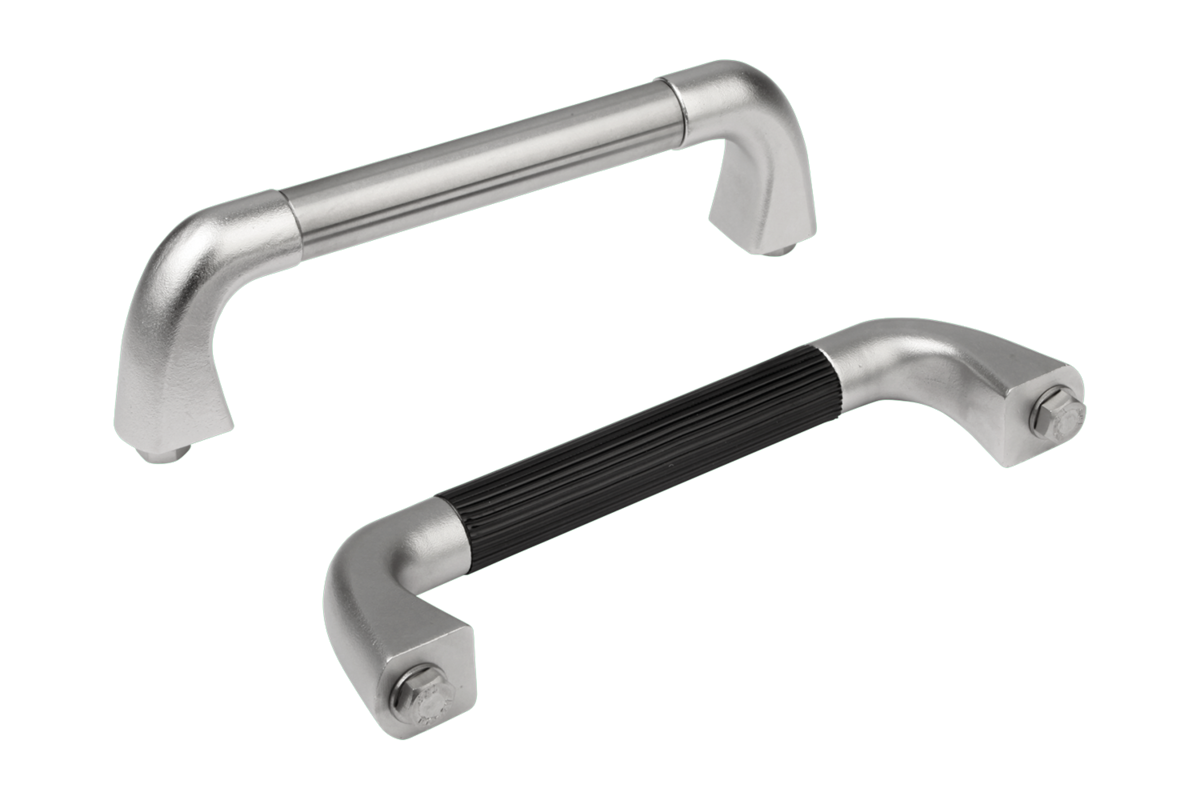

DescriptionMaterial:Grip tube and fasteners stainless steel 1.4301 (AISI 304 equivalent).
Legs investment cast stainless steel 1.4581 (AISI 316Nb equivalent). Version:Grip tube finely ground or with ribbed black plastic sleeve.
Legs abrasive cleaned and matte gloss electropolished.Note:Cap screws with nuts and washers are supplied for Style A handles for mounting from the front.
Hexagon head screws and washers are supplied for Style B handles for mounting from the rear.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0227_B Pull Handles stainless steel, three-piece tube design, Style B

160 kB

Drawings

Item selection/filter

Item No.	Style	Main color	A	B	D	H	L	Load capacity N	Price
K0227.200083	B	Ground	200	26	M8x20	60	226	1000	on request
K0227.300083	B	Ground	300	26	M8x20	60	326	1000	on request
K0227.400083	B	Ground	400	26	M8x20	60	426	1000	on request
K0227.200084	B	black plastic ribbed	200	26	M8x20	60	226	1000	on request
K0227.300084	B	black plastic ribbed	300	26	M8x20	60	326	1000	on request
K0227.400084	B	black plastic ribbed	400	26	M8x20	60	426	1000	on request
