K1364_BGPull handles for Hygienic USIT® sealing and shim washer |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Stainless steel 1.4404 (AISI 316L equivalent).Version:High-gloss polished.Note:Solid pull handles, polished overall to a high gloss. The resulting surface finish of less than Ra 0.8 µm allows residue from products or cleaners to seldom adhere. This, together with the large radii make the handle extremely easy to clean.

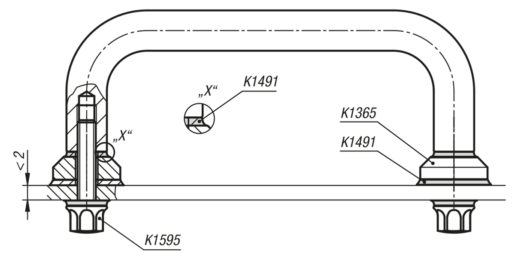

Through the optionally available support disc, the contact surface i.e. the transferable force is considerably increased.

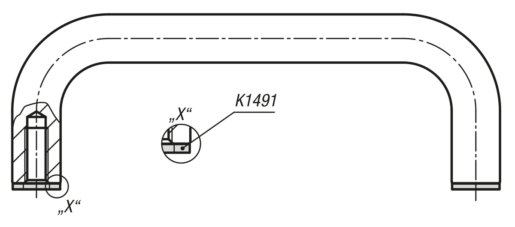

Screwing on directly or using the intermediate support disc is carried out using the Hygienic USIT® sealing washer from Freudenberg Process Seals. The as normal time-consuming welding of the handle, grinding and polishing the weld is not required. All fastening points and the screw-on surface are hygienically handled.On request:External threads, inch threads, longer and higher versions.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | A
| B | D | H | L | R | R1 | T | Status | CAD | Acc. | Price | Order |
|---|
| K1364.12005 | 120 | 11,8 | M5 | 66,8 | 131,8 | 0,5 | 13 | 12,5 | expiring | | | 126.10 $ (USD) | | | K1364.20005 | 200 | 11,8 | M5 | 66,8 | 211,8 | 0,5 | 13 | 12,5 | expiring | | | 131.56 $ (USD) | | | K1364.30005 | 300 | 11,8 | M5 | 66,8 | 311,8 | 0,5 | 13 | 12,5 | expiring | | | 138.13 $ (USD) | | | K1364.12006 | 120 | 14,2 | M6 | 69,2 | 134,2 | 0,55 | 16 | 15 | expiring | | | 131.80 $ (USD) | | | K1364.20006 | 200 | 14,2 | M6 | 69,2 | 214,2 | 0,55 | 16 | 15 | expiring | | | 139.31 $ (USD) | | | K1364.12008 | 120 | 18 | M8 | 73 | 138 | 0,6 | 19 | 20 | expiring | | | 143.09 $ (USD) | | | K1364.30008 | 300 | 18 | M8 | 73 | 318 | 0,6 | 19 | 20 | expiring | | | 168.89 $ (USD) | | | K1364.12010 | 120 | 22,3 | M10 | 77,3 | 142,3 | 0,75 | 23,5 | 25 | expiring | | | 158.86 $ (USD) | | | K1364.20010 | 200 | 22,3 | M10 | 77,3 | 222,3 | 0,75 | 23,5 | 25 | expiring | | | 176.15 $ (USD) | | | K1364.30010 | 300 | 22,3 | M10 | 77,3 | 322,3 | 0,75 | 23,5 | 25 | expiring | | | 197.58 $ (USD) | |
|
|
|
