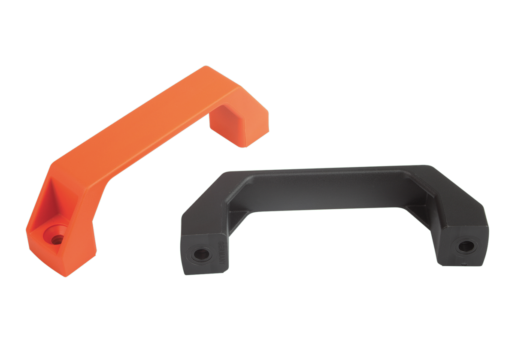

Item description/product images

DescriptionMaterial:Glass bead reinforced thermoplastic.Version:Black RAL 7021 or orange.Note:Dimension “A” applies after mounting. Before mounting it can be up to 2 mm smaller due to the release of the bending stress.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0191_B Pull Handles thermoplastic, Style B

124 kB

Drawings

Item selection/filter

Order No.	style	Main color	A	B	C	D	H	L	L1	Load capacity N	Price
K0191.2120061	B	black gray RAL 7021	120	26	8	6,6	42	138	96	1000	6.47 $ (USD)
K0191.2140061	B	black gray RAL 7021	140	26	8	6,6	42	158	116	1000	8.28 $ (USD)
K0191.2160061	B	black gray RAL 7021	160	28	9	6,6	45	178	136	1000	14.56 $ (USD)
K0191.2120062	B	orange	120	26	8	6,6	42	138	96	1000	6.47 $ (USD)
K0191.2140062	B	orange	140	26	8	6,6	42	158	116	1000	8.28 $ (USD)
K0191.2160062	B	orange	160	28	9	6,6	45	178	136	1000	14.56 $ (USD)
