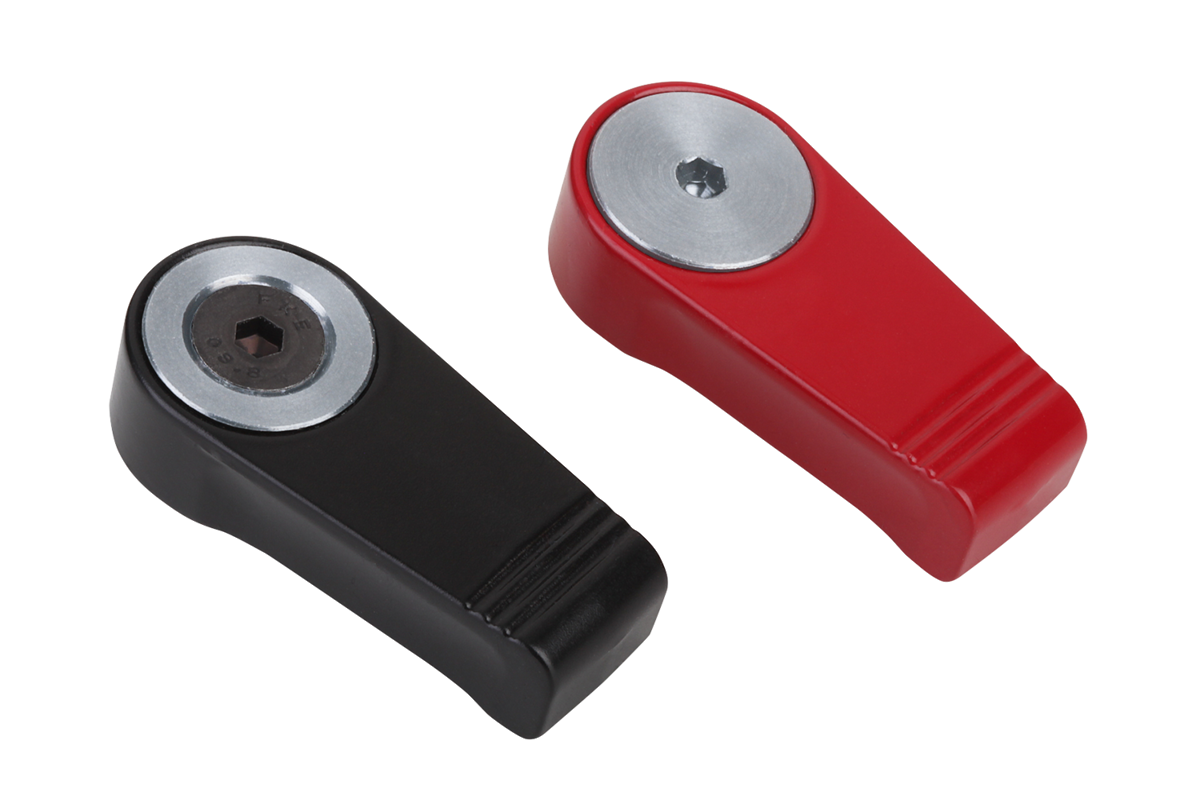

Stop latch

K0271

Stop latch

Products
- Quarter-turn locks, compression latches
  - Stop latch

Item description/product images

DescriptionMaterial:Housing die-cast zinc, powder-coated.
Pin steel.
Washer plastic.
Circlip spring steel.
Countersunk screw steel grade 8.8.Version:Housing black or red.
Pin trivalent blue passivated.
Circlip and countersunk screw, black.Note:Engages every 90°.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0271 Stop latch

Drawings

Stop latch

Item selection/filter

Order No.	Main color	Version	L	D1	CAD	Acc.	Price	Order
K0271.140061	black	internal thread	40	M6			24.34 $ (USD)
K0271.140062	red	internal thread	40	M6			24.34 $ (USD)
K0271.140061X10	black	external thread	40	M6			24.34 $ (USD)
K0271.140062X10	red	external thread	40	M6			24.34 $ (USD)
