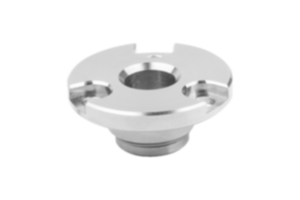

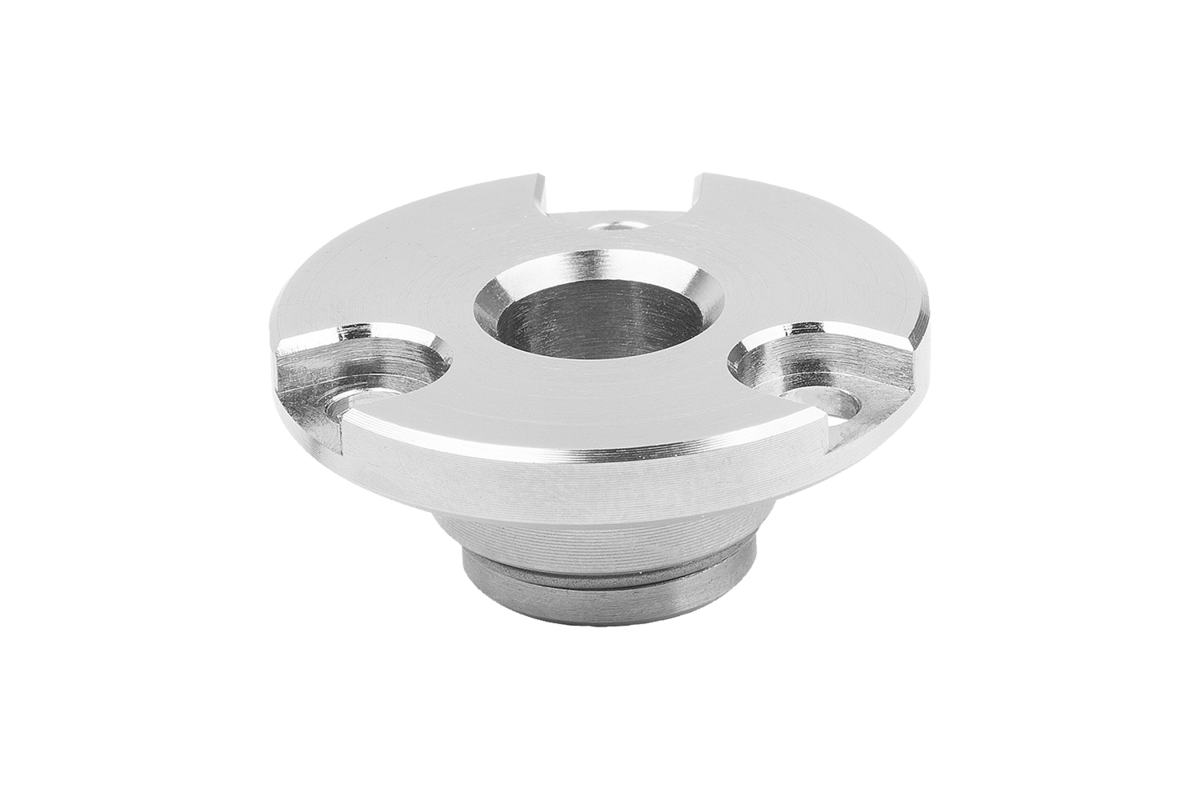

Steel clamping plates for quarter-turn clamp locks

K1560

Steel clamping plates for quarter-turn clamp locks

Products
- Quarter-turn locks, compression latches
  - Steel clamping plates for quarter-turn clamp locks

Item description/product images

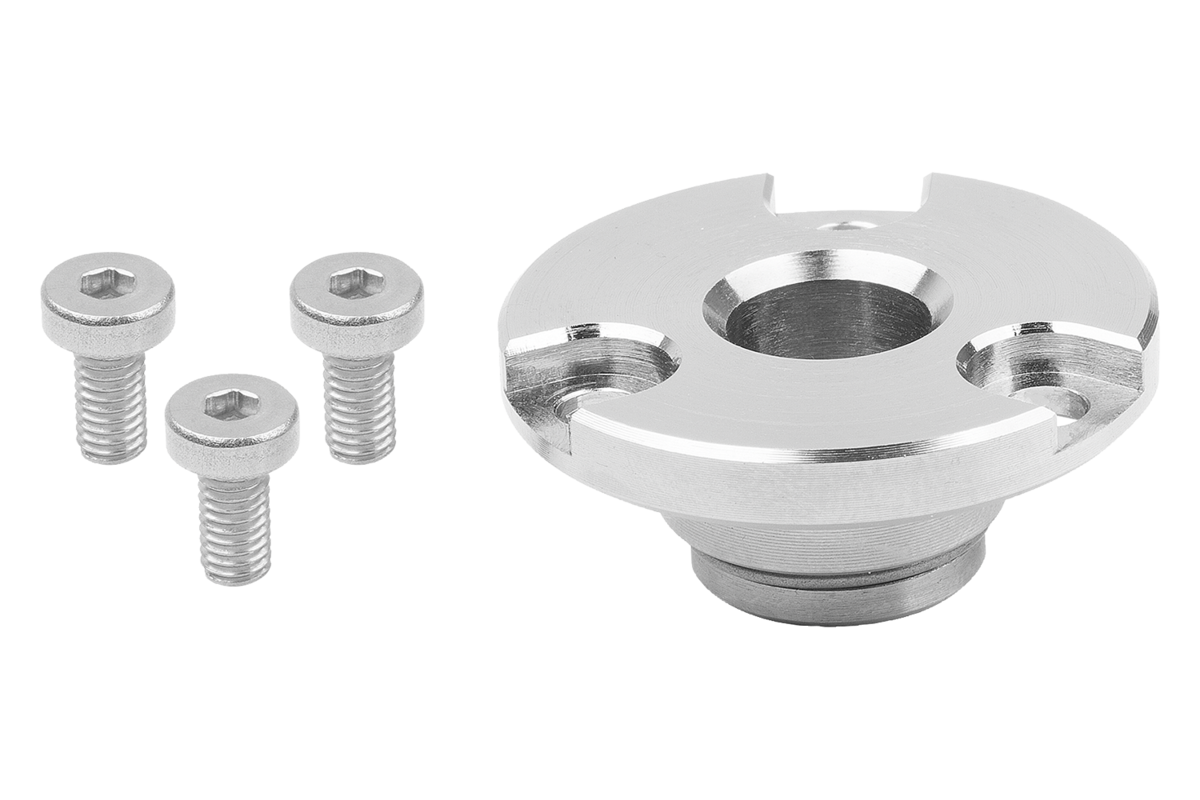

DescriptionMaterial:Housing steel.Version:Housing nickel-plated.Note:Stainless steel M3 fastening screws are included.
Mounting option for plate thickness starting from 9 mm.Accessory:quarter-turn clamp lock K1559.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1560 Steel clamping plates for quarter-turn clamp locks

Drawings

Steel clamping plates for quarter-turn clamp locks

Item selection/filter

Order No.	D	D1	D2	D3	D4	D5	D6	H	H1	H2	L	L1	CAD	Acc.	Price	Order
K1560.801	8	14	26	M3x0,5	20	14,5	26	11,5	3,5	1,5	4	5			26.51 $ (USD)
