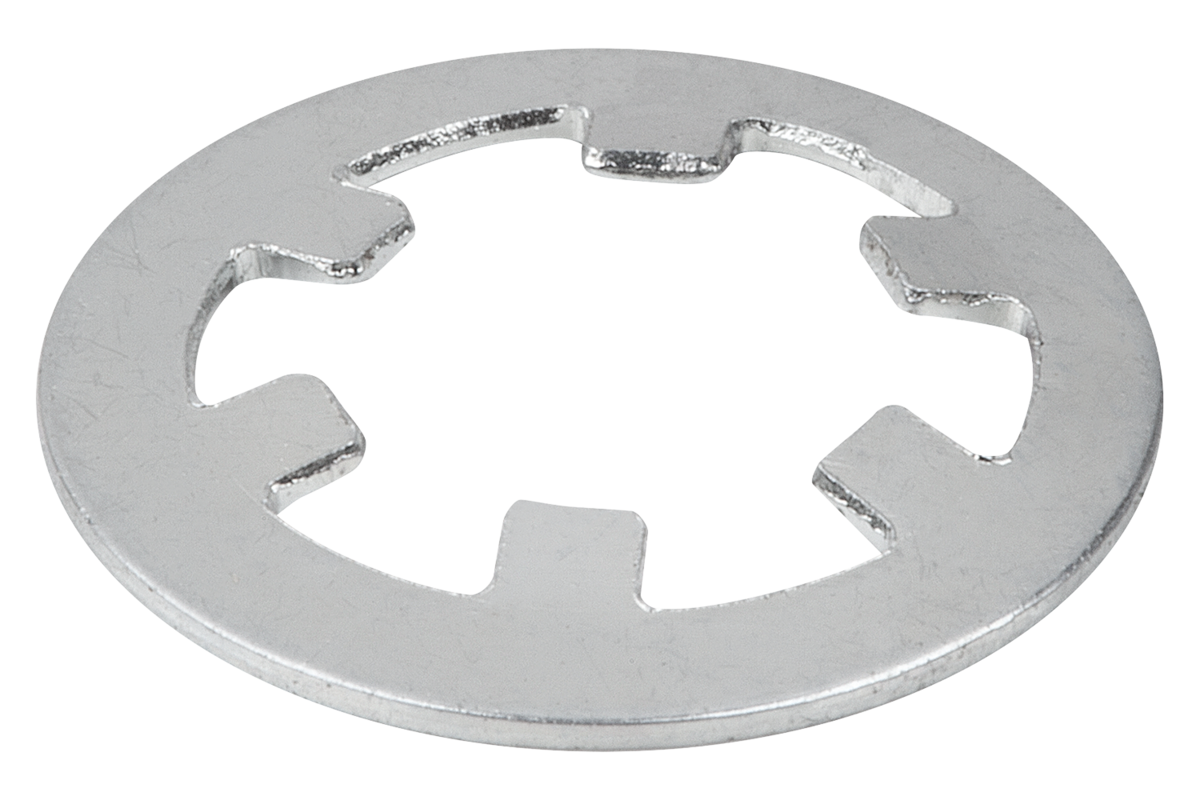

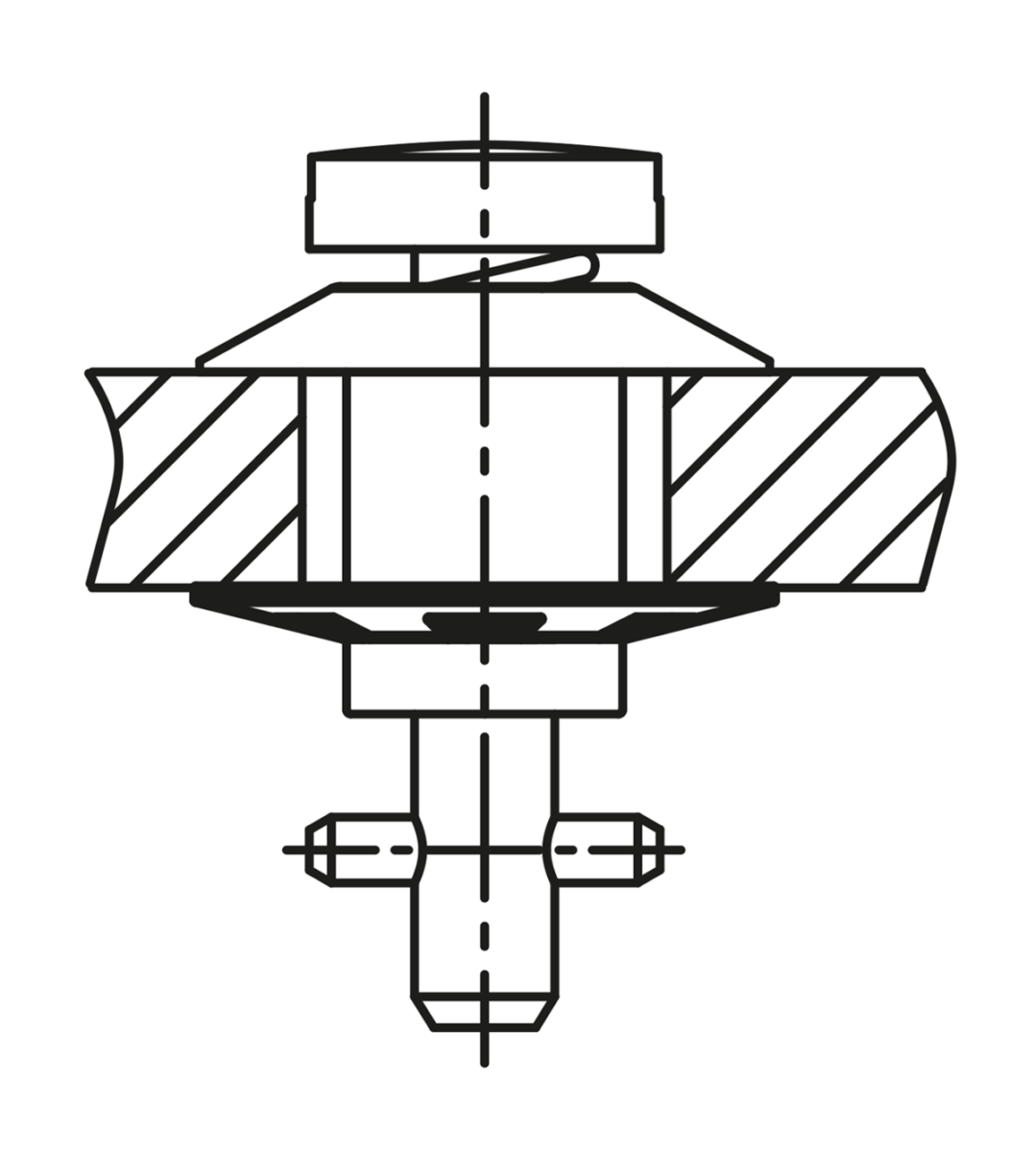

DescriptionMaterial:Spring steelVersion:Electro zinc-plated.Note:Retaining washer for fastening the locking pin. This keeps the locking pin joined captively to the cover.

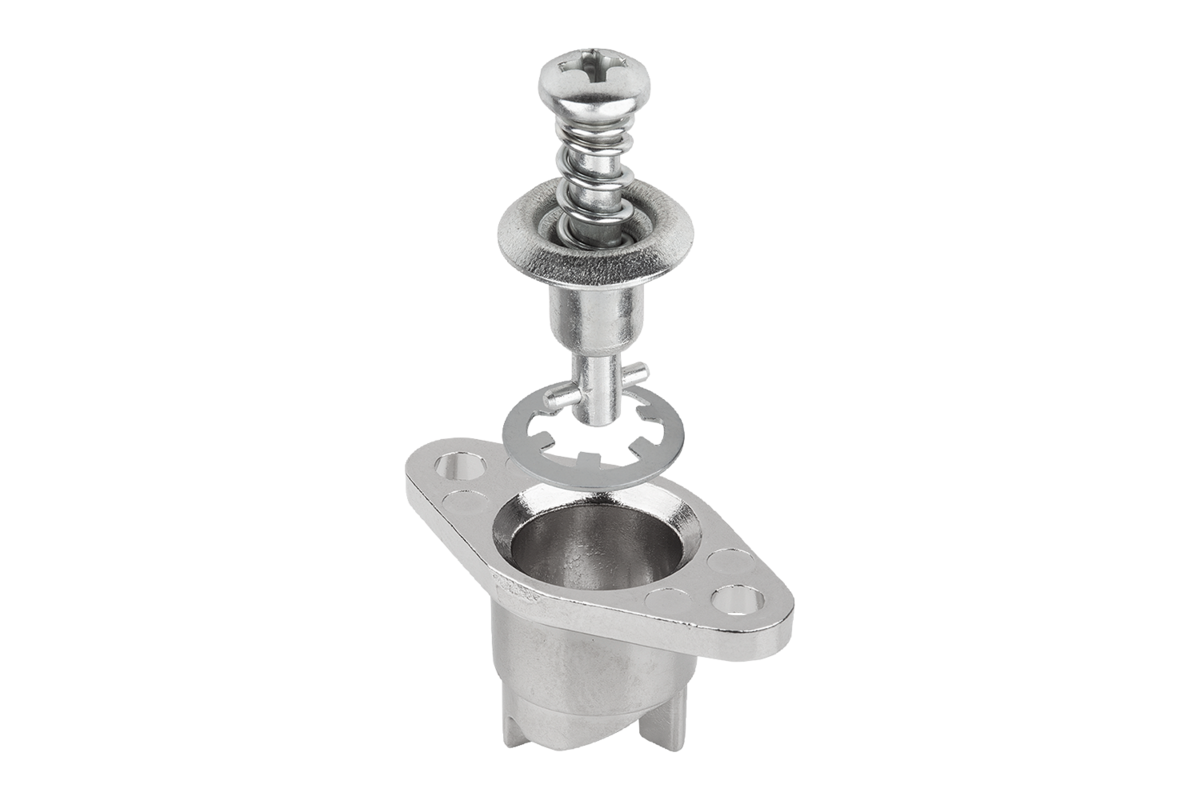

The quarter turn latch always consists of a 1/4 turn lock, retaining washer and lock bottom part.Accessory:Quarter turn latches K1730.Special features:
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
