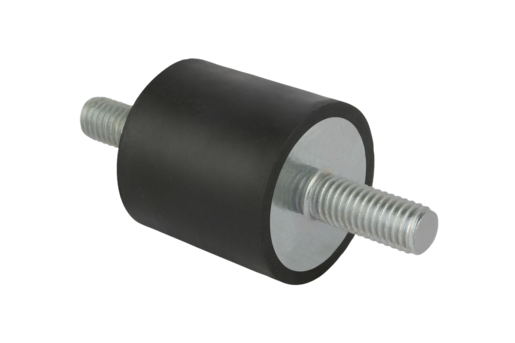

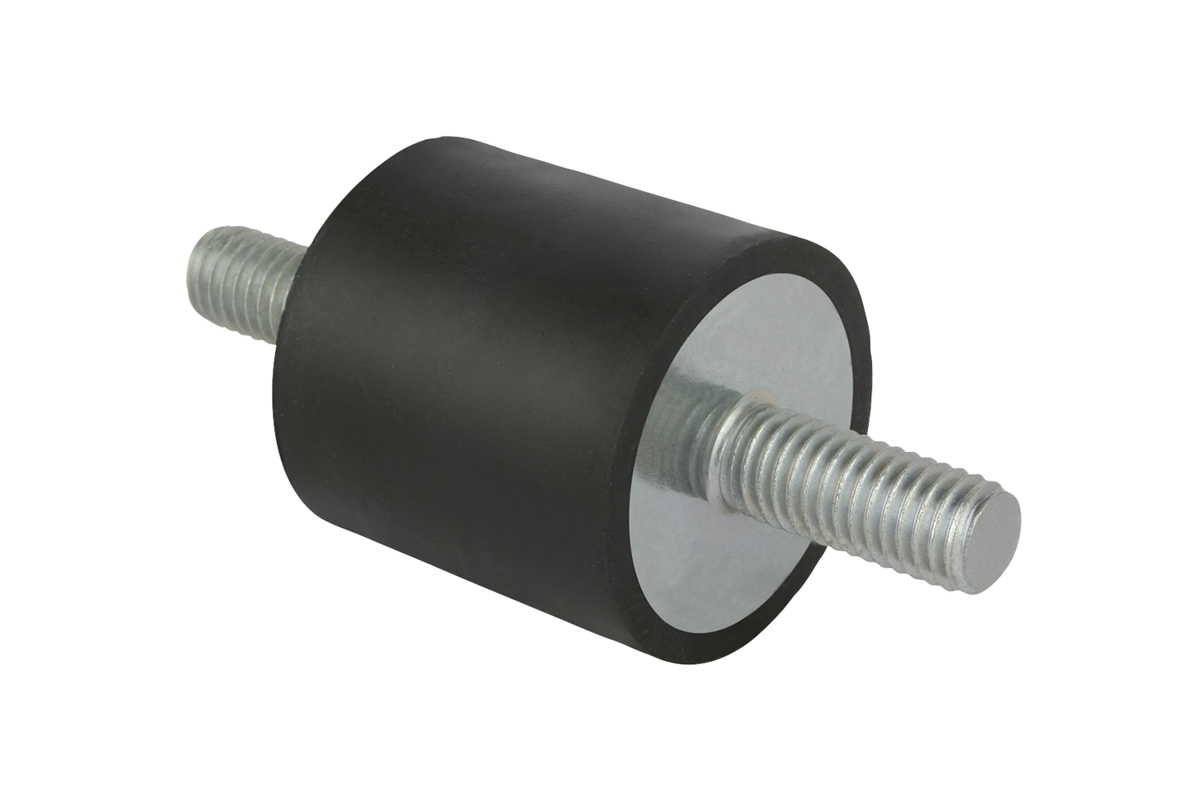

Rubber buffers steel or stainless steel, type A

K0566

Rubber buffers steel or stainless steel, style A

Products
- Rubber Buffers
  - Rubber buffers steel or stainless steel, style A

Item description/product images

DescriptionMaterial:Metal parts steel grade 5.6 or stainless steel.
Elastomer natural rubber, medium hardness, Shore 55A.Version:Steel electro zinc-plated.
Stainless steel bright.Note:The rubber buffers are widely-used construction elements for elastic mounting. They are used, among other things, as mountings for aggregates, motors, compressors, pumps and testing machinery.Temperature range:-30 °C to +80 °COn request:Other Shore grades.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0566 Rubber buffers steel or stainless steel, style A

174 kB

Technical Information Rubber-metal buffers

59,3 kB

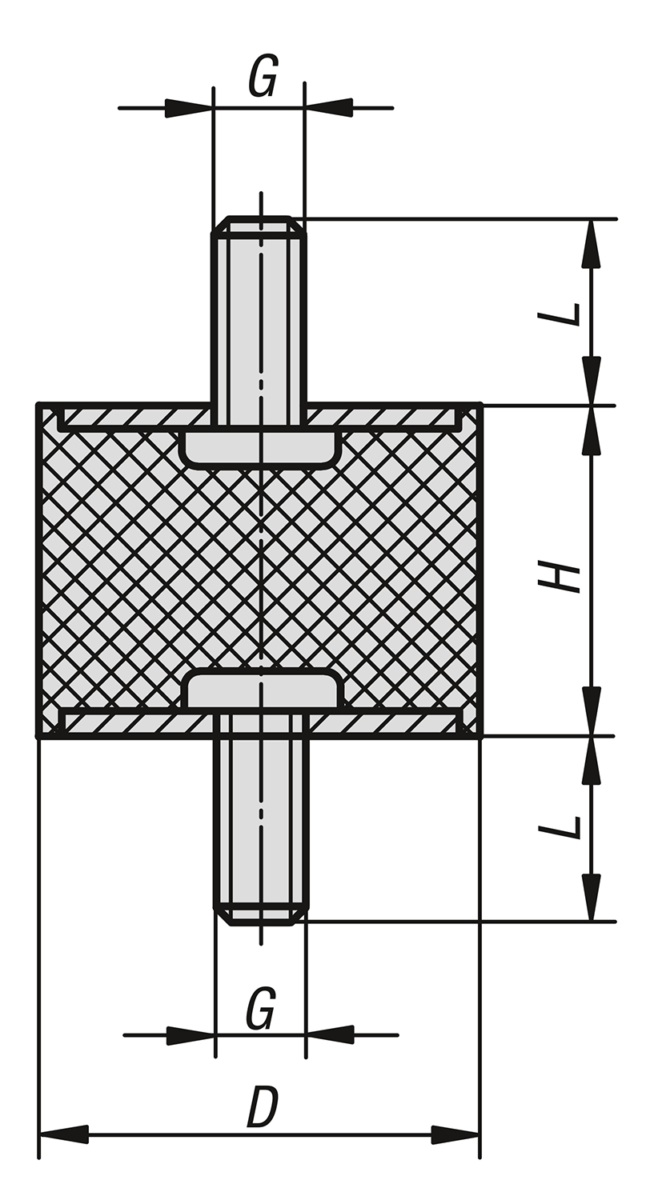

Drawings

Rubber buffers steel or stainless steel, style A

Item selection/filter

Item No.	Main material	D	G	L	H	Spring stiffness N/mm	Load N	Price
K0566.00800855	steel	8	M3	6	8	24	31	1.55 $ (USD)
K0566.01001055	steel	10	M4	10	10	35	32	1.83 $ (USD)
K0566.01001555	steel	10	M4	10	15	50	50	1.97 $ (USD)
K0566.01500855	steel	15	M4	10	8	130	104	1.72 $ (USD)
K0566.01501055	steel	15	M4	10	10	122	122	1.83 $ (USD)
K0566.01501555	steel	15	M4	10	15	59	88	1.89 $ (USD)
K0566.02000855	steel	20	M6	18	8	725	580	2.18 $ (USD)
K0566.02001055	steel	20	M6	18	10	300	300	2.23 $ (USD)
K0566.02001555	steel	20	M6	18	15	200	300	2.56 $ (USD)
K0566.02002055	steel	20	M6	18	20	133	332	2.60 $ (USD)
K0566.02002555	steel	20	M6	18	25	90	270	2.71 $ (USD)
K0566.02501055	steel	25	M6	18	10	800	800	2.37 $ (USD)
K0566.02501555	steel	25	M6	18	15	294	441	2.44 $ (USD)
K0566.02502055	steel	25	M6	18	20	200	500	2.48 $ (USD)
K0566.02502555	steel	25	M6	18	25	94	282	2.60 $ (USD)
K0566.02503055	steel	25	M6	18	30	70	280	2.71 $ (USD)
K0566.03001555	steel	30	M8	23	15	587	880	2.79 $ (USD)
K0566.03002055	steel	30	M8	23	20	318	795	2.84 $ (USD)
K0566.03002555	steel	30	M8	23	25	183	549	2.92 $ (USD)
K0566.03003055	steel	30	M8	23	30	150	600	3.07 $ (USD)
K0566.03004055	steel	30	M8	23	40	77	385	3.76 $ (USD)
K0566.04001555	steel	40	M8	23	15	1250	1875	4.28 $ (USD)
K0566.04002055	steel	40	M8	23	20	565	1412	4.75 $ (USD)
K0566.04003055	steel	40	M8	23	30	300	1200	5.02 $ (USD)
K0566.04004055	steel	40	M8	23	40	189	945	5.31 $ (USD)
K0566.05002055	steel	50	M10	28	20	1300	3250	4.89 $ (USD)
K0566.05002555	steel	50	M10	28	25	667	2000	5.02 $ (USD)
K0566.05003055	steel	50	M10	28	30	500	2000	5.31 $ (USD)
K0566.05004055	steel	50	M10	28	40	300	1500	5.82 $ (USD)
K0566.05005055	steel	50	M10	28	50	193	1153	6.66 $ (USD)
K0566.06004055	steel	60	M10	28	40	377	1885	9.41 $ (USD)
K0566.07004555	steel	70	M10	28	45	410	2255	11.76 $ (USD)
K0566.07502555	steel	75	M12	37	25	1655	4965	10.67 $ (USD)
K0566.07504055	steel	75	M12	37	40	717	3585	13.25 $ (USD)
K0566.07505055	steel	75	M12	37	50	470	2820	13.59 $ (USD)
K0566.07505555	steel	75	M12	37	55	405	2835	13.82 $ (USD)
K0566.015015551	stainless steel	15	M4	12	15	59	88	3.95 $ (USD)
K0566.020015551	stainless steel	20	M6	18	15	200	300	5.54 $ (USD)
K0566.025020551	stainless steel	25	M6	18	20	200	500	5.80 $ (USD)
K0566.030020551	stainless steel	30	M8	23	20	318	795	6.09 $ (USD)
K0566.030025551	stainless steel	30	M8	23	25	183	549	6.26 $ (USD)
K0566.040030551	stainless steel	40	M8	23	30	300	1200	10.75 $ (USD)
