Rubber buffers style C
K0569

Rubber buffers style C

go back

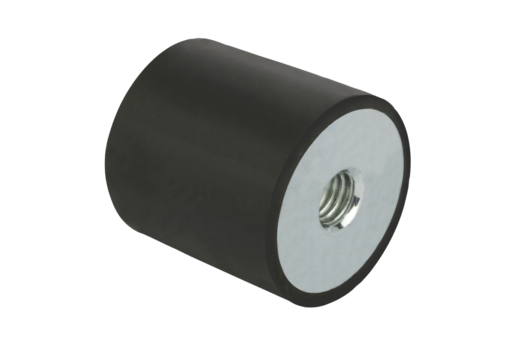

Item description/product images

DescriptionMaterial:Metal parts steel, quality class 5.6.
Elastomer, natural rubber, medium hardness Shore 55A.
Version:Steel electro zinc-plated.Note:The rubber buffers are widely-used construction elements for elastic mounting. They are used, among other things, as mountings for assemblies, motors, compressors, pumps and testing machinery.Temperature range:-30 °C to +80 °C.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0569 Rubber buffers style C 193 kB
 Technical Information Rubber-metal buffers 59,3 kB

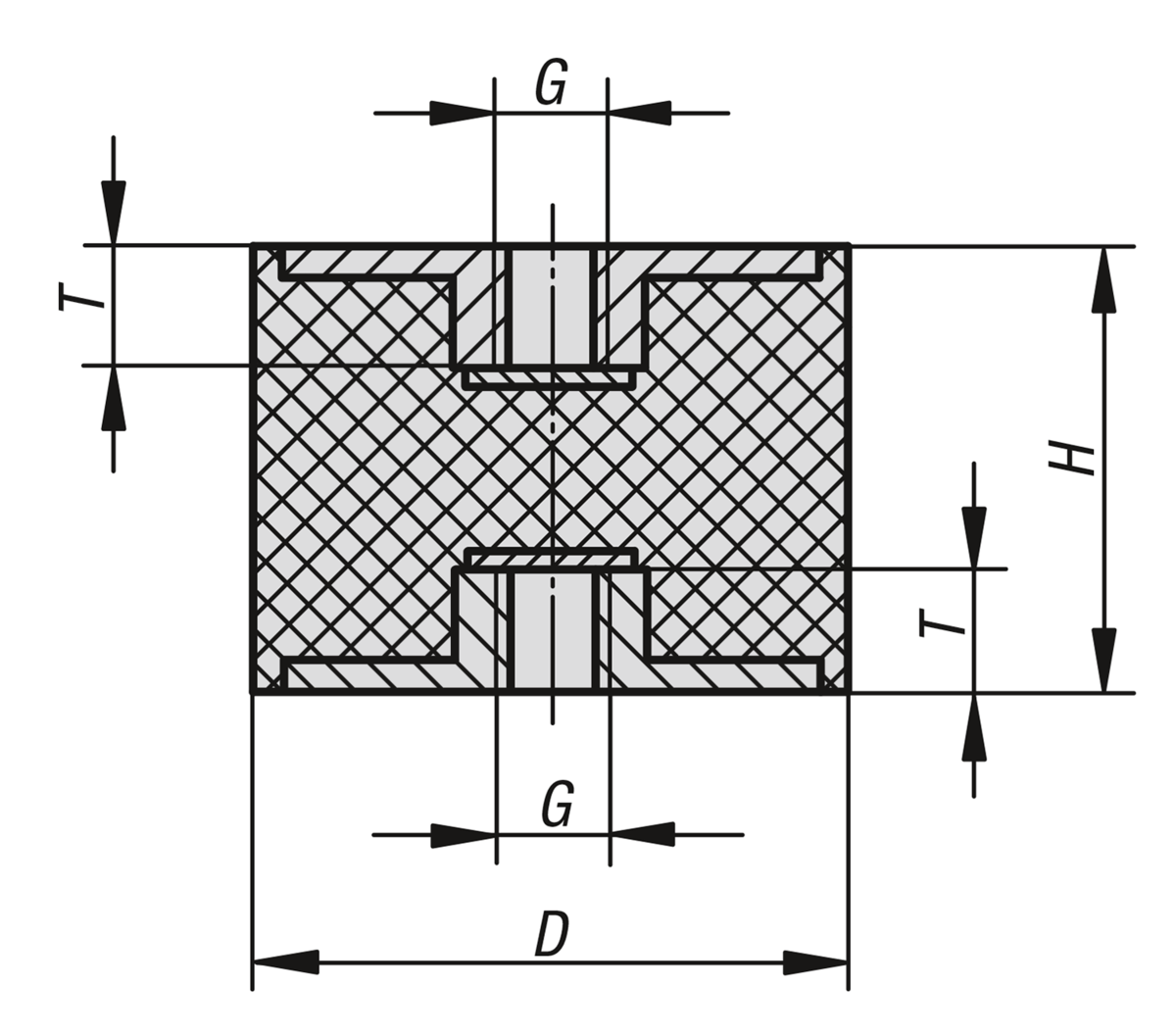

Drawings

Rubber buffers style C

Item selection/filter

Item No.

Main
material
DHGTSpring stiffness
N/mm
Load
N
CADAcc.PriceOrder
K0569.01001055steel1010M4410050 1.64 $ (USD)
K0569.01001555steel1015M445050 1.70 $ (USD)
K0569.01501555steel1515M44100100 1.74 $ (USD)
K0569.02002055steel2020M66230276 2.33 $ (USD)
K0569.02002555steel2025M66120180 2.33 $ (USD)
K0569.02502055steel2520M66230276 2.23 $ (USD)
K0569.02502555steel2525M66110165 2.33 $ (USD)
K0569.02503055steel2530M6680160 2.42 $ (USD)
K0569.03002055steel3020M88425637 2.46 $ (USD)
K0569.03003055steel3030M88175350 2.67 $ (USD)
K0569.03004055steel3040M88133400 3.26 $ (USD)
K0569.04003055steel4030M885301060 4.35 $ (USD)
K0569.04004055steel4040M88222666 4.56 $ (USD)
K0569.05003055steel5030M10106801360 4.62 $ (USD)
K0569.05004055steel5040M10103331000 5.04 $ (USD)
K0569.05005055steel5050M1010190665 5.78 $ (USD)
K0569.07504055steel7540M12127502250 11.51 $ (USD)
K0569.07505055steel7550M12126362225 11.80 $ (USD)
