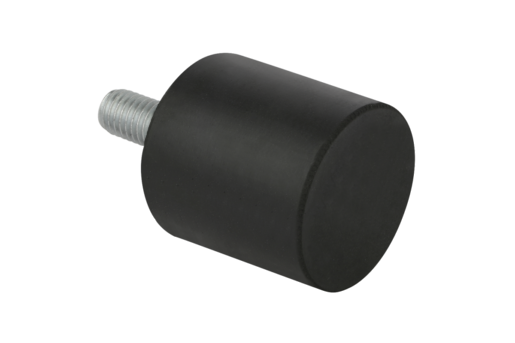

Rubber buffers steel or stainless steel, style D

go back

Products
- Rubber Buffers
  - Rubber buffers steel or stainless steel, style D

Item description/product images

DescriptionMaterial:Metal parts steel grade 5.6 or stainless steel.
Elastomer natural rubber, medium hardness, Shore 55A.Version:Steel electro zinc-plated.
Stainless steel bright.Note:Rubber buffers are used, among other things for mounting aggregates and as elastic buffers to limit the travel of moving masses.
Due to the material composition, rubber buffers are contact-coloring, which can lead to abrasion marks and discoloration on e.g. floors or contact surfaces.
Rubber buffers made of light gray EPDM that are not contact-coloring are available on request.
Temperature range:-30 °C to +80 °COn request:Other Shore grades.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0571 Rubber buffers steel or stainless steel, style D

212 kB

Technical Information Rubber-metal buffers

59,3 kB

Drawings

Rubber buffers steel or stainless steel, style D

Item selection/filter

Item No.	Main material	D	H	G	L	Spring stiffness N/mm	Load N	Price
K0571.00800855	steel	8	8	M3	6	40	40	0.00 $ (USD)
K0571.01001055	steel	10	10	M4	10	35	35	0.00 $ (USD)
K0571.01001555	steel	10	15	M4	10	26	40	0.00 $ (USD)
K0571.01500655	steel	15	6	M4	10	175	88	0.00 $ (USD)
K0571.01500855	steel	15	8	M4	10	187	187	0.00 $ (USD)
K0571.01501055	steel	15	10	M4	10	100	100	0.00 $ (USD)
K0571.01501555	steel	15	15	M4	10	50	100	0.00 $ (USD)
K0571.02000555	steel	20	5	M6	18	135	95	0.00 $ (USD)
K0571.02000855	steel	20	8	M6	18	250	250	0.00 $ (USD)
K0571.02001055	steel	20	10	M6	18	240	240	0.00 $ (USD)
K0571.02001555	steel	20	15	M6	18	110	220	0.00 $ (USD)
K0571.02002055	steel	20	20	M6	18	75	225	0.00 $ (USD)
K0571.02002555	steel	20	25	M6	18	65	227,5	0.00 $ (USD)
K0571.02500855	steel	25	8	M6	18	850	850	0.00 $ (USD)
K0571.02501055	steel	25	10	M6	18	400	400	0.00 $ (USD)
K0571.02501555	steel	25	15	M6	18	210	420	0.00 $ (USD)
K0571.02502055	steel	25	20	M6	18	140	420	0.00 $ (USD)
K0571.02502555	steel	25	25	M6	18	100	350	0.00 $ (USD)
K0571.02503055	steel	25	30	M6	18	79	316	0.00 $ (USD)
K0571.03001555	steel	30	15	M8	23	270	540	0.00 $ (USD)
K0571.03002055	steel	30	20	M8	23	238	714	0.00 $ (USD)
K0571.03002555	steel	30	25	M8	23	153	535,5	0.00 $ (USD)
K0571.03003055	steel	30	30	M8	23	127	508	0.00 $ (USD)
K0571.03004055	steel	30	40	M8	23	88	528	0.00 $ (USD)
K0571.04001555	steel	40	15	M8	23	710	1420	0.00 $ (USD)
K0571.04002055	steel	40	20	M8	23	365	1095	0.00 $ (USD)
K0571.04003055	steel	40	30	M8	23	205	820	0.00 $ (USD)
K0571.04004055	steel	40	40	M8	23	143	858	0.00 $ (USD)
K0571.05002055	steel	50	20	M10	28	646	1938	0.00 $ (USD)
K0571.05003055	steel	50	30	M10	28	354	1416	0.00 $ (USD)
K0571.05004055	steel	50	40	M10	28	230	1380	0.00 $ (USD)
K0571.05005055	steel	50	50	M10	28	160	1280	0.00 $ (USD)
K0571.06004055	steel	60	40	M10	28	317	1902	0.00 $ (USD)
K0571.07002555	steel	70	25	M10	28	980	3430	0.00 $ (USD)
K0571.07004555	steel	70	45	M10	28	438	3066	0.00 $ (USD)
K0571.07502555	steel	75	25	M12	37	1318	4613	0.00 $ (USD)
K0571.07504055	steel	75	40	M12	37	643	3858	0.00 $ (USD)
K0571.07505055	steel	75	50	M12	37	472	3776	0.00 $ (USD)
K0571.07505555	steel	75	55	M12	37	310	3100	0.00 $ (USD)
K0571.008008551	stainless steel	8	8	M3	8	40	40	0.00 $ (USD)
K0571.010010551	stainless steel	10	10	M4	10	35	35	0.00 $ (USD)
K0571.015015551	stainless steel	15	15	M4	10	50	100	0.00 $ (USD)
K0571.020015551	stainless steel	20	15	M6	18	110	220	0.00 $ (USD)
K0571.025020551	stainless steel	25	20	M6	18	140	420	0.00 $ (USD)
K0571.030030551	stainless steel	30	30	M8	23	127	508	0.00 $ (USD)
K0571.040030551	stainless steel	40	30	M8	23	205	820	0.00 $ (USD)
