Rubber buffers style DS suction base

go back

Products
- Rubber Buffers
  - Rubber buffers style DS suction base

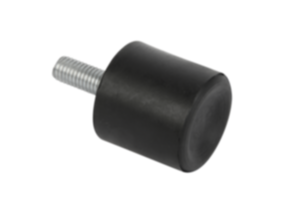

Item description/product images

DescriptionMaterial:Metal parts steel, quality class 5.6.
Elastomer, natural rubber, medium hardness Shore 57A.Version:Steel electro zinc-plated.Note:These Rubber Buffers are used, among other things for mounting assemblies, and as elastic buffers to limit the travel of moving masses.Temperature range:-30 °C to +80 °C.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0572 Rubber buffers style DS suction base

198 kB

Technical Information Rubber-metal buffers

59,3 kB

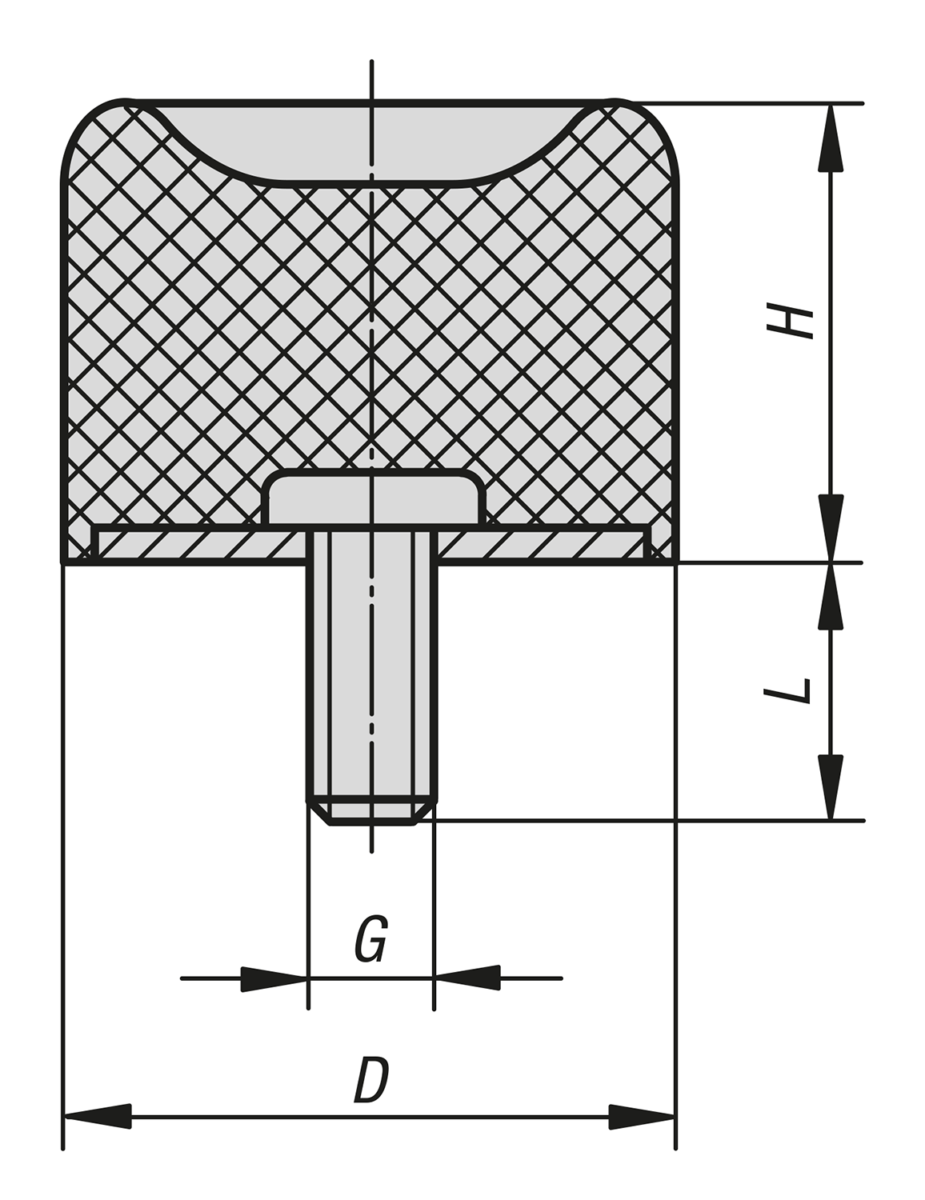

Drawings

Item selection/filter

Item No.	D	H	G	L	Spring stiffness N/mm	Load N	Price
K0572.01501457	15	14	M4	13	50	100	1.74 $ (USD)
K0572.02501857	25	18,5	M6	18	95	285	2.08 $ (USD)
K0572.03002857	30	28,5	M8	23	97	340	2.29 $ (USD)
K0572.04002857	40	28	M8	23	120	480	4.49 $ (USD)
K0572.05002857	50	28	M10	28	220	990	5.04 $ (USD)
K0572.07003057	70	30	M10	28	360	2160	8.82 $ (USD)
K0572.07503757	75	37	M12	37	390	3510	11.28 $ (USD)
K0572.10005057	100	50	M16	42	540	8100	20.62 $ (USD)
