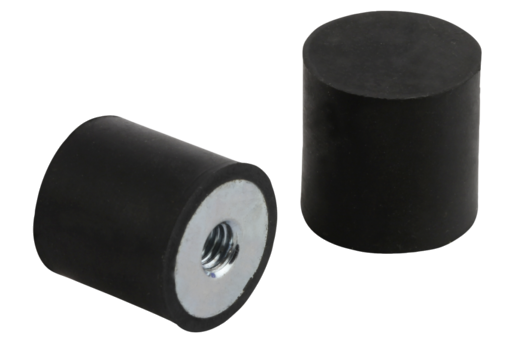

Rubber buffers style E

go back

Products
- Rubber Buffers
  - Rubber buffers style E

Item description/product images

DescriptionMaterial:Metal parts steel, grade 5.6.
Elastomer natural rubber, medium hardness, Shore 55A.Version:Steel electro zinc-plated.Note:The rubber buffers are widely-used construction elements for elastic mounting. They are used, among other things, as mountings for aggregates, motors, compressors, pumps and testing machinery.
Due to the material composition, rubber buffers are contact-coloring, which can lead to abrasion marks and discoloration on e.g. floors or contact surfaces.
Rubber buffers made of light gray EPDM that are not contact-coloring are available on request.

Temperature range:-30 °C to +80 °CSpecial features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0573 Rubber buffers style E

215 kB

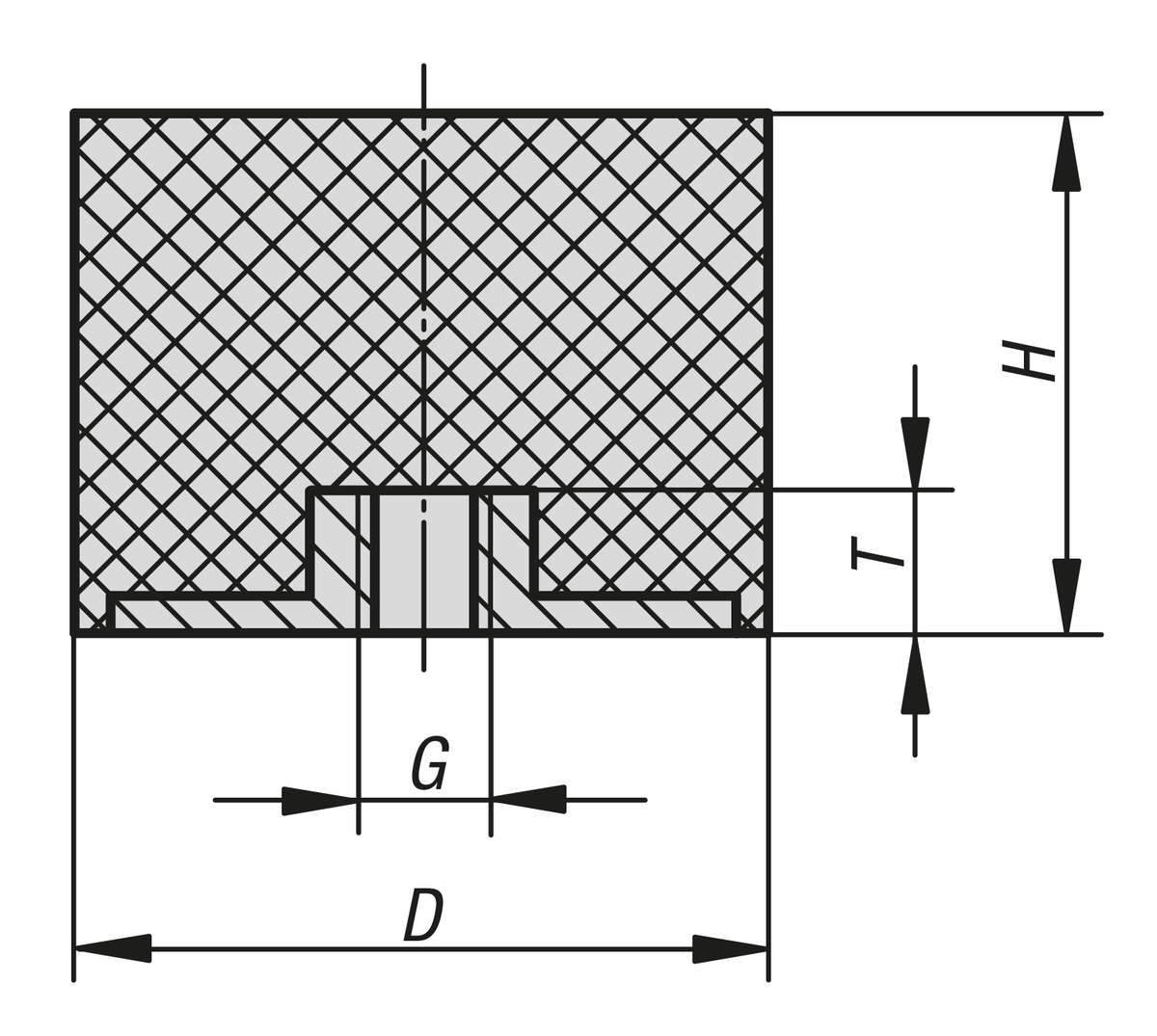

Drawings

Item selection/filter

Order No.	D	H	G	T	Spring stiffness N/mm	Load N	Price
K0573.00800855	8	8	M3	3	88	44	1.87 $ (USD)
K0573.01501255	15	12	M4	4	165	182	1.97 $ (USD)
K0573.01501555	15	15	M4	4	100	130	1.97 $ (USD)
K0573.01502055	15	20	M4	4	75	113	2.14 $ (USD)
K0573.02001555	20	15	M6	6	145	246	2.25 $ (USD)
K0573.02002055	20	20	M6	6	94	216	2.42 $ (USD)
K0573.02002555	20	25	M6	6	65	169	2.52 $ (USD)
K0573.02501555	25	15	M6	6	270	540	2.46 $ (USD)
K0573.02502555	25	25	M6	6	105	315	2.52 $ (USD)
K0573.02503055	25	30	M6	6	85	281	2.69 $ (USD)
K0573.02504055	25	40	M6	6	75	300	3.13 $ (USD)
K0573.03001555	30	15	M8	8	545	491	2.81 $ (USD)
K0573.03002555	30	25	M8	8	160	416	2.94 $ (USD)
K0573.03003055	30	30	M8	8	125	425	3.02 $ (USD)
K0573.03004055	30	40	M8	8	85	315	3.72 $ (USD)
K0573.04002055	40	20	M8	8	550	660	4.70 $ (USD)
K0573.04002555	40	25	M8	8	500	1000	4.89 $ (USD)
K0573.04003055	40	30	M8	8	300	870	5.04 $ (USD)
K0573.04004055	40	40	M8	8	260	1040	5.27 $ (USD)
K0573.05002055	50	20	M10	10	860	860	4.98 $ (USD)
K0573.05002555	50	25	M10	10	700	1400	5.04 $ (USD)
K0573.05003055	50	30	M10	10	450	1575	5.27 $ (USD)
K0573.05004055	50	40	M10	10	350	1400	5.82 $ (USD)
K0573.05005055	50	50	M10	10	170	850	6.66 $ (USD)
K0573.06003055	60	30	M10	10	700	1400	9.53 $ (USD)
K0573.06004055	60	40	M10	10	400	1600	9.98 $ (USD)
K0573.06005055	60	50	M10	10	240	1200	10.48 $ (USD)
K0573.07004255	70	42	M10	10	520	2600	11.78 $ (USD)
K0573.07004555	70	45	M10	10	680	3060	11.99 $ (USD)
K0573.07502555	75	25	M12	12	1211	1816	11.57 $ (USD)
K0573.07503055	75	30	M12	12	1090	2289	12.35 $ (USD)
K0573.07504055	75	40	M12	12	500	2000	13.48 $ (USD)
K0573.07505055	75	50	M12	12	550	2750	13.86 $ (USD)
