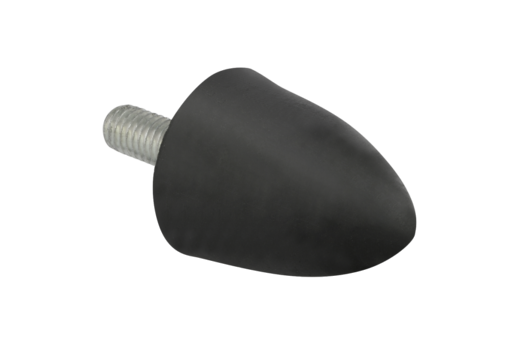

DescriptionMaterial:Metal parts steel, grade 5.6. Elastomer natural rubber, medium hardness, Shore 55A.Version:Steel electro zinc-plated.Note:Rubber buffers are robust and effective elastic cushioning elements and shock absorbers. These rubber buffers are ideal for elastic travel limitation and cushioning knocks by mobile and immobile aggregates and machines and for general use as stops. Due to the material composition, rubber buffers are contact-coloring, which can lead to abrasion marks and discoloration on e.g. floors or contact surfaces. Rubber buffers made of light gray EPDM that are not contact-coloring are available on request. Temperature range:-30 °C to +80 °CSpecial features:
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
