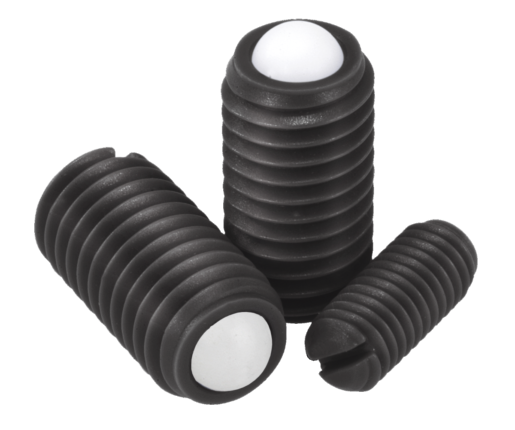

Ball Plungers from KIPP

Made in Germany for high quality, KIPP ball plungers are available in steel or stainless steel. Ball plungers are especially suited to indexing and detent applications, and are available in inch or metric threads with a slotted or hex drive body.

Slotted Ball Plungers

Slotted ball plungers are made with a one piece body with a screwdriver slot on the bottom. The spring and ball are then inserted, and the top is crimped to retain the ball. Because of the one-piece body, they can be manufactured in shorter lengths than hex drive plungers.
  • Steel, stainless steel, or ceramic balls
  • Steel or stainless steel bodies
  • Inch or metric

Hexagon Socket Ball Plungers

Hexagon socket ball plungers are made with a two-piece body: the threaded cylinder of the walls and a hexagon socket that is inserted into the bottom and glued into place. The hexagon socket offers a more secure and precise method of installation (versus a screwdriver slot), but the tradeoff is a plunger with a longer body, due to the added length of the socket.
  • Steel, stainless steel, or plastic pins
  • Steel or stainless steel bodies
  • Inch or metric
Slotted Ball Plungers

Cross Section
Slotted Ball Plunger

Hexagon Socket Ball Plungers

Cross Section
Hexagon Socket Ball Plunger
