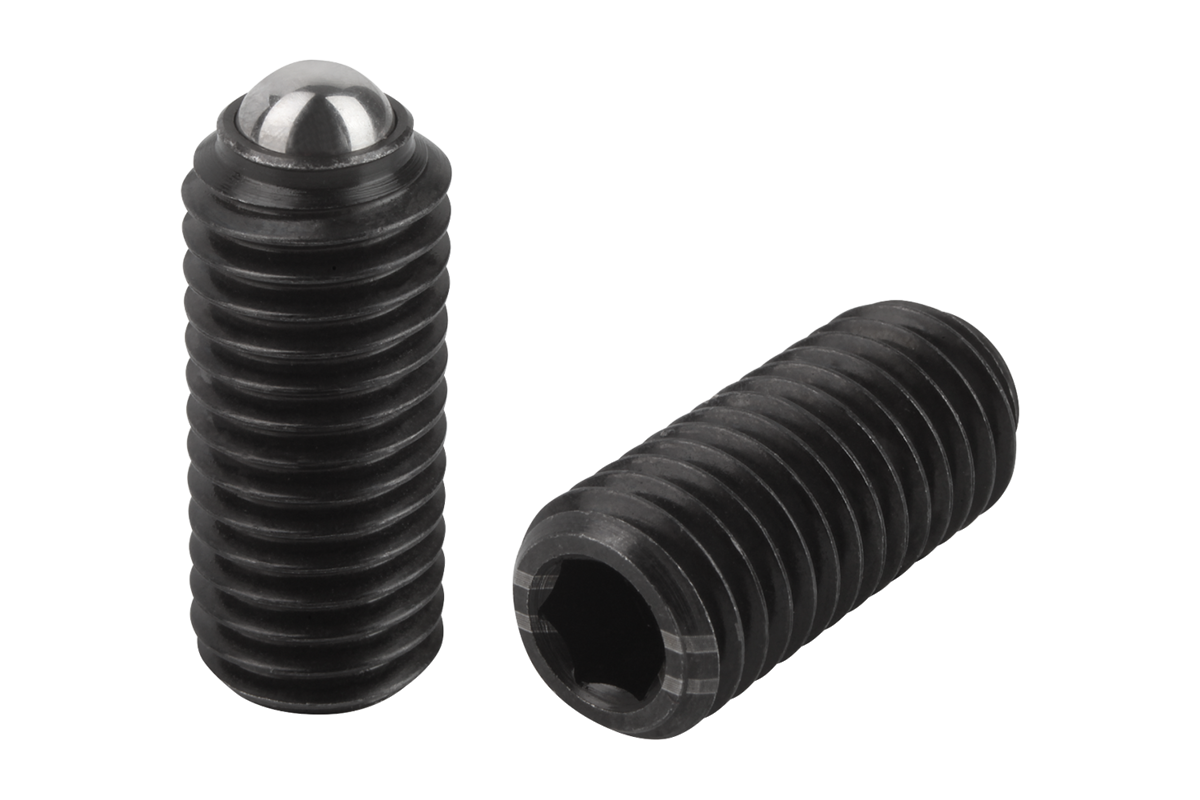

Spring Plungers ball style, hexagon socket, steel, heavy end pressure, inch
K0315 Inch

Spring Plungers ball style, hexagon socket, steel, heavy end...

go back

Item description/product images

DescriptionMaterial:Body steel quality class 5.8.
Ball steel.
Spring Class D steel wire.
Version:Black oxide finish.
Ball hardened.
Note:For the inch series, dimension D and S are in inches, all other dimensions are in mm.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0315 Inch Spring Plungers ball style, hexagon socket, steel, heavy end pressure, inch 226 kB

Drawings

Spring Plungers ball style, hexagon socket, steel, heavy end pressure, inch

Item selection/filter

Item No.

DD1HLSSpring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0315.2AJ1/4-283.51151/82840 on request
K0315.2A21/4-203.51151/82840 on request
K0315.2A35/16-1851.5185/324773 on request
K0315.2A43/8-1662233/1666100 on request
K0315.2A51/2-1382.5267/3266120 on request
K0315.2A65/8-11103.5335/1690180 on request
