Spring Plungers ball style, hexagon socket, steel, standard end pressure, inch

K0315 Inch

Spring Plungers ball style, hexagon socket, steel, standard end...

Products
- Spring Plungers
  - Ball Plungers
    - Spring Plungers ball style, hexagon socket, steel
      - Spring Plungers ball style, hexagon socket, steel, standard end pressure, inch

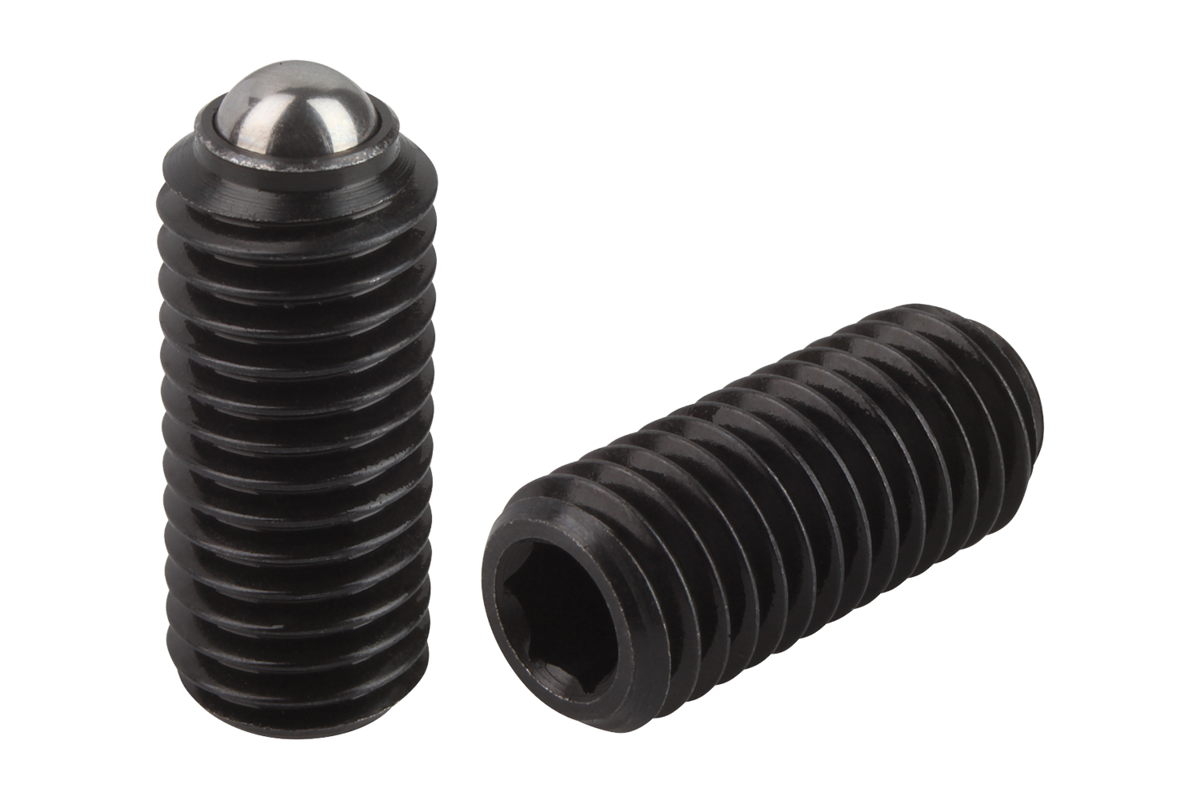

Item description/product images

DescriptionMaterial:body steel grade 5.8.
Ball steel.
Spring grade D steel wire.Version:Black oxidized. Ball hardened.Note:For the inch series, dimension D and S are in inches, all other dimensions are in mm.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0315 Inch Spring Plungers ball style, hexagon socket, steel, standard end pressure, inch

Drawings

Spring Plungers ball style, hexagon socket, steel, standard end pressure, inch

Item selection/filter

Item No.	D	D1	H	L	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	CAD	Acc.	Price	Order
K0315.AJ	1/4-28	3.5	1	15	1/8	9	13			3.15 $ (USD)
K0315.A2	1/4-20	3.5	1	15	1/8	9	13			3.15 $ (USD)
K0315.A3	5/16-18	5	1.5	18	5/32	15	30			4.04 $ (USD)
K0315.A4	3/8-16	6	2	23	3/16	20	40			4.46 $ (USD)
K0315.A5	1/2-13	8	2.5	26	7/32	30	55			6.08 $ (USD)
K0315.A6	5/8-11	10	3.5	33	5/16	65	125			8.13 $ (USD)
