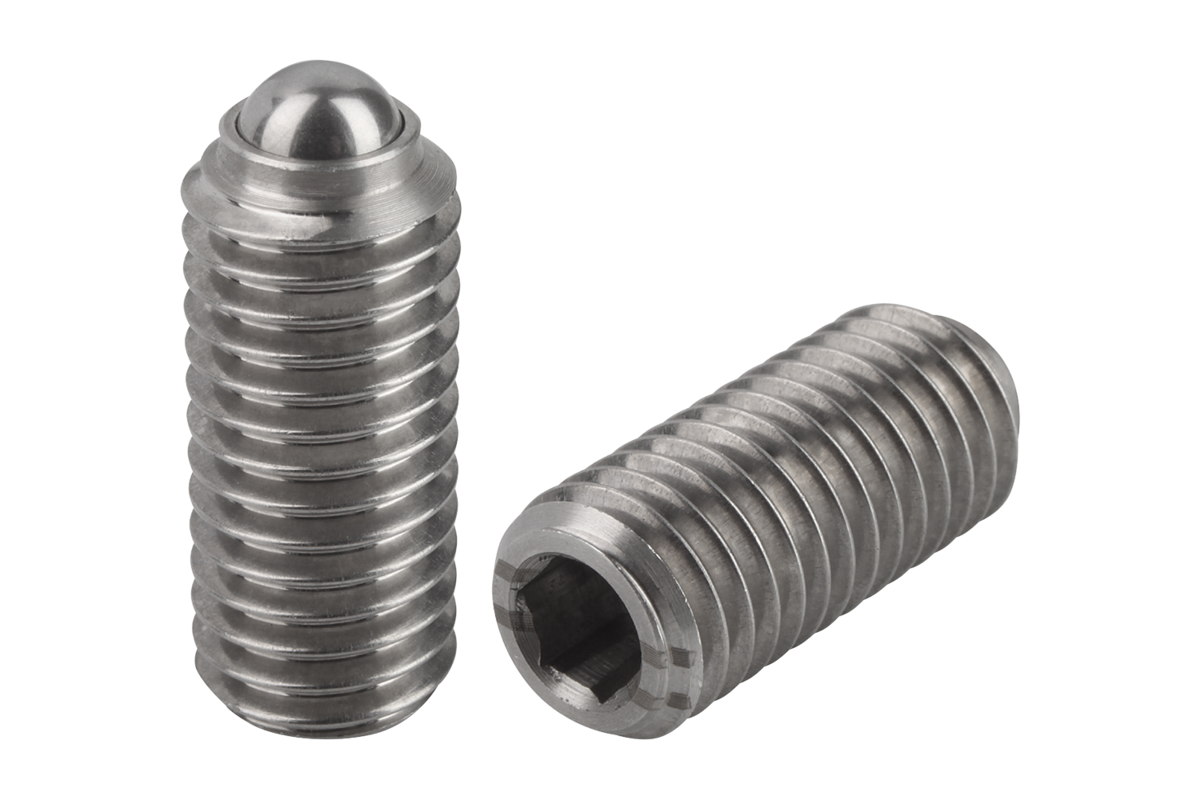

Spring Plungers ball style, hexagon socket, stainless steel, heavy end pressure, inch
K0316 Inch

Spring Plungers ball style, hexagon socket, stainless steel,...

go back

Item description/product images

DescriptionMaterial:Body stainless steel 1.4305 (AISI 303 equivalent).
Ball stainless steel 1.4034 (AISI 420 equivalent).
Spring stainless steel wire 1.4310 (AISI 310 equivalent).
Version:Bright. Ball hardened.Note:For the inch series, dimension D and S are in inches, all other dimensions are in mm.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0316 Inch Spring Plungers ball style, hexagon socket, stainless steel, heavy end pressure, inch 270 kB

Drawings

Spring Plungers ball style, hexagon socket, stainless steel, heavy end pressure, inch

Item selection/filter

Item No.

DD1HLSSpring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0316.2AJ1/4-283.51151/82840 9.57 $ (USD)
K0316.2A21/4-203.51151/82840 9.57 $ (USD)
K0316.2A35/16-1851.5185/324773 10.36 $ (USD)
K0316.2A43/8-1662233/1666100 11.96 $ (USD)
K0316.2A51/2-1382.5267/3266120 16.85 $ (USD)
K0316.2A65/8-11103.5335/1690180 26.61 $ (USD)
