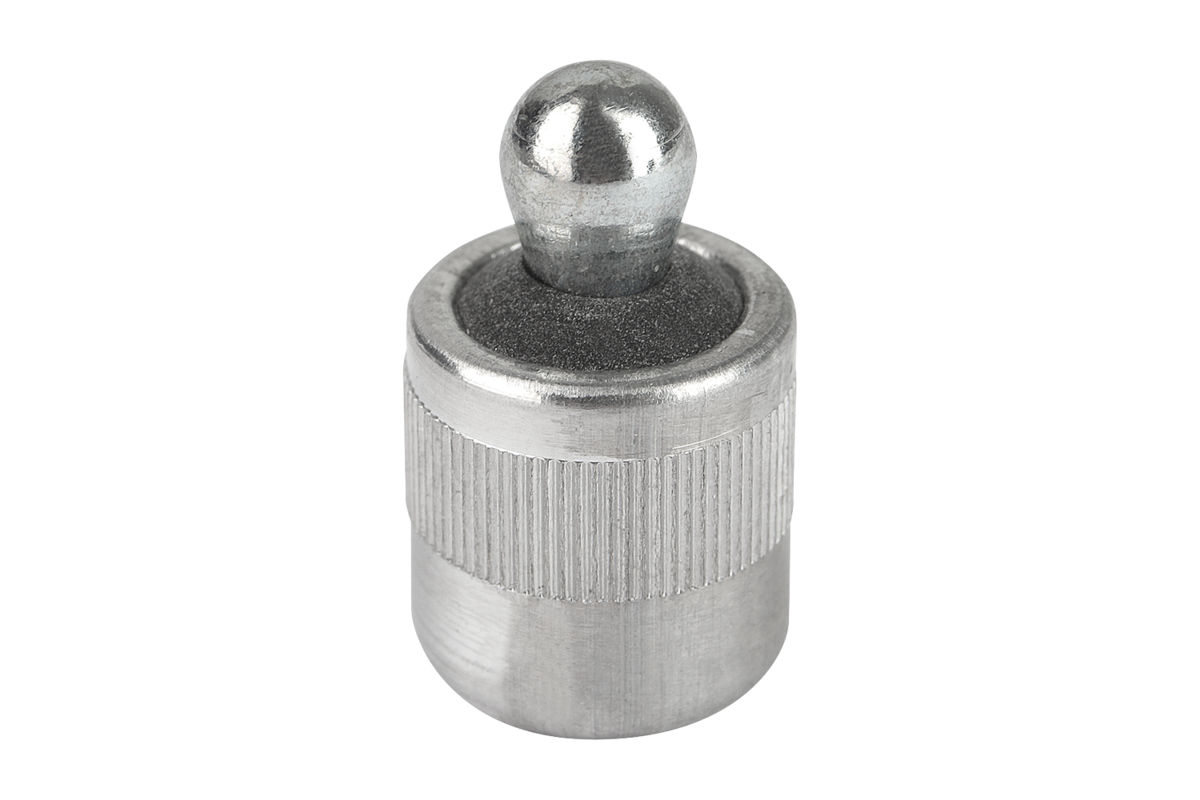

K0368 InchLateral Spring Plungers with seal, pressure pin and spring in... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:body in aluminum; spring in steel; pressure pin in steelVersion:Thrust pin steel, hardened and electro zinc-plated.
body blue electro zinc-plated.Note:For the inch series, dimension D and D2 are in inches, all other dimensions are in mm.Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Item No.
| D | D1 | L | L1 | D2 | ±S | F
ca.N | X if
Y = 1 | X if
Y = 2 | X if
Y = 3 | X if
Y = 4.5
| X if
Y = 6 | X if
Y = 8 | Item No.
installation
tool | CAD | Acc. | Price | Order |
|---|
| K0368.22034CM | 1/4 | 3 | 7 | 4 | 1/4 | 0,5 | 10 | 0,8 | 1 | 1 | 1 | 1 | 1 | K0369.03CM |  | | 8.40 $ (USD) | | | K0368.22036CM | 1/4 | 3 | 7 | 4 | 1/4 | 0,5 | 20 | 0,8 | 1 | 1 | 1 | 1 | 1 | K0369.03CM | | | 8.40 $ (USD) | | | K0368.22038CM | 1/4 | 3 | 7 | 4 | 1/4 | 0,5 | 40 | 0,8 | 1 | 1 | 1 | 1 | 1 | K0369.03CM | | | 8.40 $ (USD) | | | K0368.22054CU | 7/16 | 5 | 12 | 6 | 7/16 | 0,8 | 20 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | K0369.05CU | | | 8.75 $ (USD) | | | K0368.22056CU | 7/16 | 5 | 12 | 6 | 7/16 | 0,8 | 50 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | K0369.05CU | | | 8.75 $ (USD) | | | K0368.22058CU | 7/16 | 5 | 12 | 6 | 7/16 | 0,8 | 100 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | K0369.05CU | | | 8.75 $ (USD) | | | K0368.22064CU | 7/16 | 6 | 12 | 10 | 7/16 | 1 | 40 | - | - | - | 1,7 | 1,9 | 1,9 | K0369.05CU | | | 9.28 $ (USD) | | | K0368.22066CU | 7/16 | 6 | 12 | 10 | 7/16 | 1 | 75 | - | - | - | 1,7 | 1,9 | 1,9 | K0369.05CU | | | 9.28 $ (USD) | | | K0368.22068CU | 7/16 | 6 | 12 | 10 | 7/16 | 1 | 100 | - | - | - | 1,7 | 1,9 | 1,9 | K0369.05CU | | | 9.28 $ (USD) | | | K0368.22084CP | 1/2 | 8 | 14 | 13 | 1/2 | 1,3 | 50 | - | - | - | - | 2,5 | 2,7 | K0369.08CP | | | 9.89 $ (USD) | | | K0368.22086CP | 1/2 | 8 | 14 | 13 | 1/2 | 1,3 | 100 | - | - | - | - | 2,5 | 2,7 | K0369.08CP | | | 9.89 $ (USD) | | | K0368.22088CP | 1/2 | 8 | 14 | 13 | 1/2 | 1,3 | 150 | - | - | - | - | 2,5 | 2,7 | K0369.08CP | | | 9.89 $ (USD) | | | K0368.22104CQ | 5/8 | 10 | 18 | 16 | 5/8 | 1,6 | 100 | - | - | - | - | - | 3,1 | K0369.10CQ | | | 10.66 $ (USD) | | | K0368.22106CQ | 5/8 | 10 | 18 | 16 | 5/8 | 1,6 | 150 | - | - | - | - | - | 3,1 | K0369.10CQ | | | 10.66 $ (USD) | | | K0368.22108CQ | 5/8 | 10 | 18 | 16 | 5/8 | 1,6 | 200 | - | - | - | - | - | 3,1 | K0369.10CQ | | | 10.66 $ (USD) | |
Other items in this category |
|
|
|
Order catalog Interested in our new catalog?
Contact us...more... |
|
|
|
