Lateral Spring Plungers without seal, pressure pin and spring in steel, metric
K0368 Metric

Lateral Spring Plungers without seal, pressure pin and spring in...

go back

Item description/product images

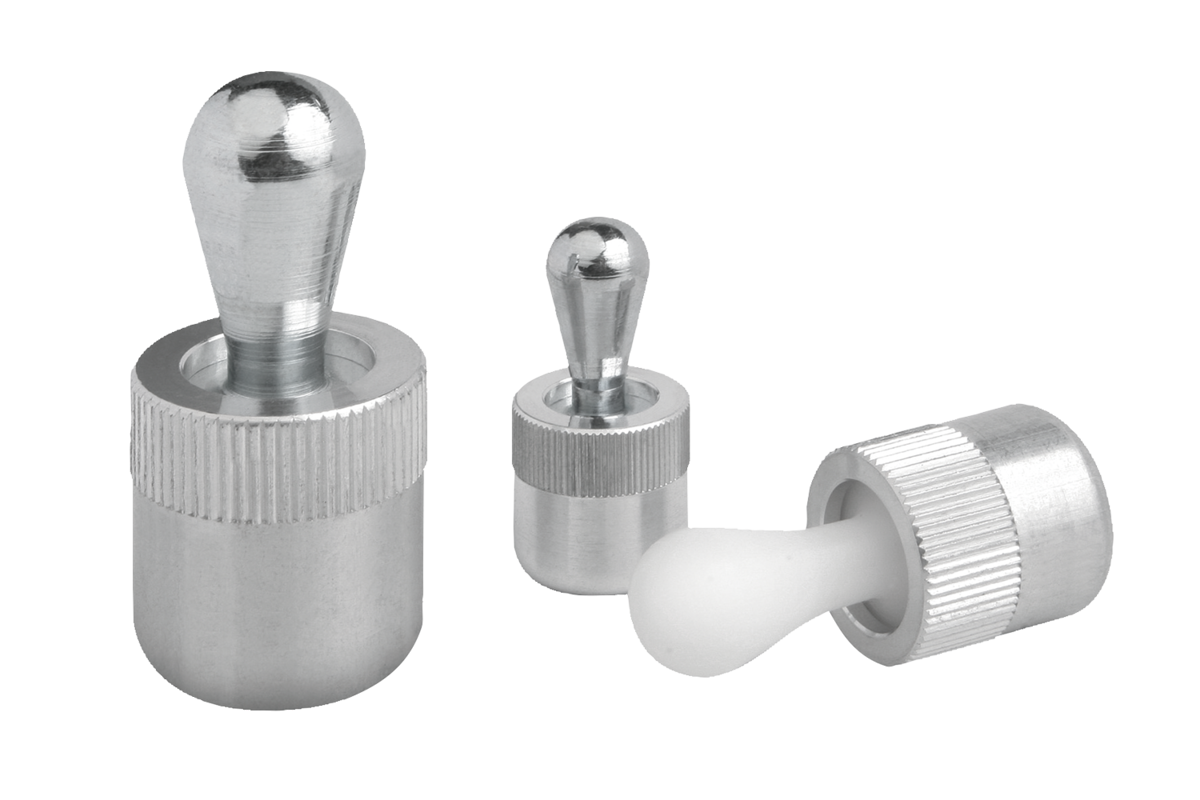

DescriptionMaterial:Body in aluminum; spring in steel; pressure pin in steel Version:Pressure pin (steel) hardened and galvanized.
Body blue galvanized.
Note:Lateral spring plungers are for positioning, clamping, holding and securing workpieces and parts for engraving, labelling, drilling, reaming, tapping, honing, grinding, welding, soldering, assembling, mounting etc.
Suitable eccentric adjustment bush see K0369.
W and Z are customer specified.
Drawing reference:
1) assembly tool
RoHS

Drawings

Lateral Spring Plungers without seal, pressure pin and spring in steel, metric

Item selection/filter

Item No.

DD1LL1D2±SF
ca.N
X if
Y = 1
X if
Y = 2
X if
Y = 3
X if
Y = 4.5
X if
Y = 6
X if
Y = 8
Item No.
assembly
tool
CADAcc.PriceOrder
K0368.21034634760,5100,811111K0369.03  on request
K0368.21036634760,5200,811111K0369.03  on request
K0368.21038634760,5400,811111K0369.03  on request
K0368.210541056,711100,820-1,51,71,71,71,7K0369.05  on request
K0368.210561056,711100,850-1,51,71,71,71,7K0369.05  on request
K0368.210581056,711100,8100-1,51,71,71,71,7K0369.05  on request
K0368.2106410610,71110140---1,71,91,9K0369.05  on request
K0368.2106610610,71110175---1,71,91,9K0369.05  on request
K0368.2106810610,711101100---1,71,91,9K0369.05  on request
K0368.2108412813,913121,350----2,52,7K0369.08  on request
K0368.2108612813,913121,3100----2,52,7K0369.08  on request
K0368.2108812813,913121,3150----2,52,7K0369.08  on request
K0368.21104161016,717161,6100-----3,1K0369.10  on request
K0368.21106161016,717161,6150-----3,1K0369.10  on request
K0368.21108161016,717161,6200-----3,1K0369.10  on request
