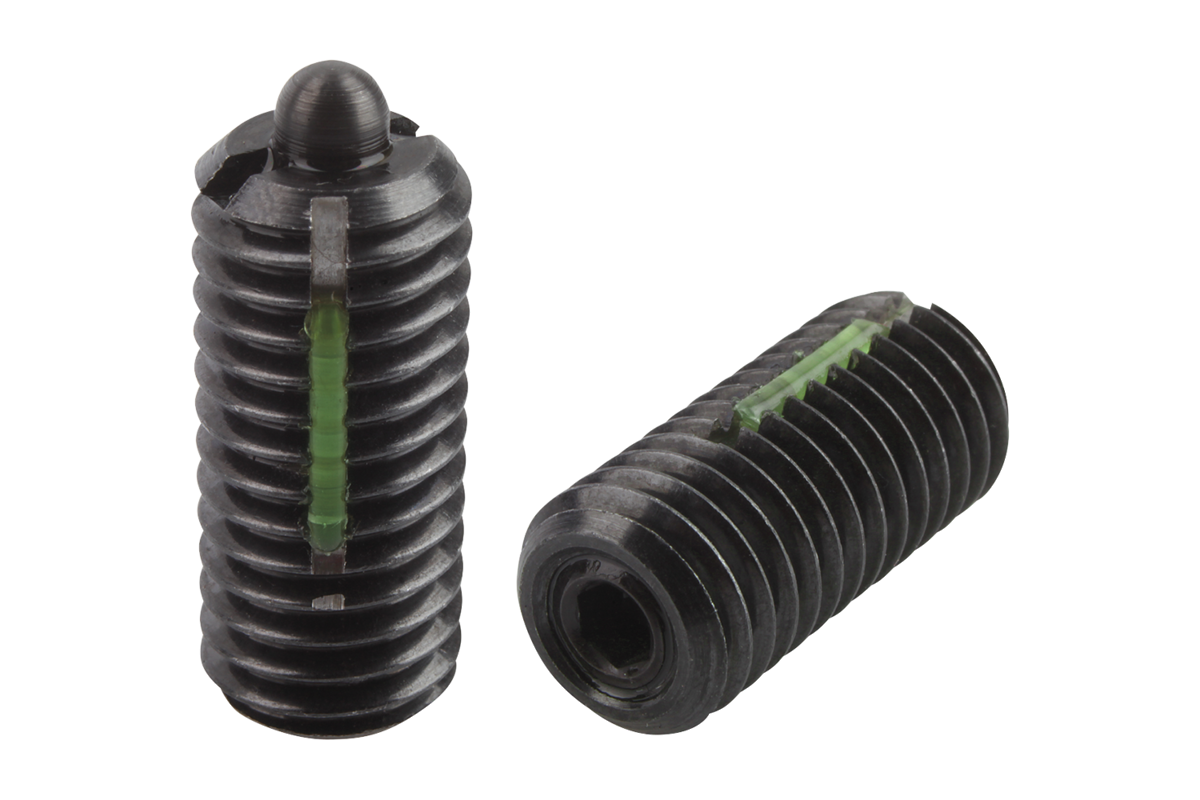

Spring plungers with hex socket and thrust pin, standard spring force, with thread lock - inch
K0327_SF inch

Spring plungers with hex socket and thrust pin, standard spring...

go back

Item description/product images

DescriptionMaterial:Sleeve in steel grade 5.8;
thrust pin in steel.
Spring grade D spring steel wire.

Thread lock nylon.
Version:Black oxidized.
Thrust pin hardened.
Note:For the inch series, dimension D and S are in inches, all other dimensions are in mm.Drawing reference:
L2 = ca. two full threads

1) grub screw glued-in
Special features:
RoHS

Drawings

Spring plungers with hex socket and thrust pin, standard spring force, with thread lock - inch
Spring plungers with hex socket and thrust pin, standard spring force, with thread lock - inch

Item selection/filter

Item No.

DD1HLL1T1NSSpring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
Tightening
torque
approx. Nm
Loosening torque
approx. Nm
Item No.
Installation
tool
CADAcc.PriceOrder
K0327.A21/4-202,72,52071127200,450,22K0317.9066.61 $ (USD)
K0327.A65/8-117,5532142,52,55451003,93K0317.91619.70 $ (USD)
K0327.A110-322,42,31870,80,81,56200,120,08K0317.905 6.43 $ (USD)
K0327.AJ1/4-282,72,52071127200,450,22K0317.9066.61 $ (USD)
K0327.A51/2-13642810224125521,3K0317.91214.16 $ (USD)
K0327.A35/16-183,532281,41,22,59351,050,37K0317.9087.67 $ (USD)
K0327.A43/8-16432291,41,639351,30,6K0317.9108.34 $ (USD)
K0327.AJVPE1/4-282,72,52071127200,450,22K0317.906 6.61 $ (USD)
K0327.A2VPE1/4-202,72,52071127200,450,22K0317.906 6.61 $ (USD)
K0327.A3VPE5/16-183,532281,41,22,59351,050,37K0317.908 7.67 $ (USD)
K0327.A4VPE3/8-16432291,41,639351,30,6K0317.910 8.34 $ (USD)
K0327.A5VPE1/2-13642810224125521,3K0317.912 14.16 $ (USD)
K0327.A6VPE5/8-117,5532142,52,55451003,93K0317.916 19.70 $ (USD)
