Spring plungers with hex socket and flat thrust pin, stainless steel, with thread lock

K1380

Spring plungers with hex socket and flat thrust pin, stainless...

Products
- Spring Plungers
  - Pin Plungers with thread lock
    - Spring plungers with hex socket and flat thrust pin, stainless steel, with thread lock

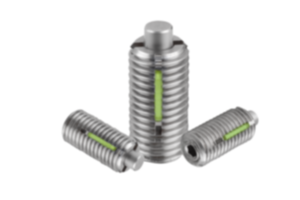

Item description/product images

DescriptionMaterial:

Sleeve 1.4305 (AISI 303 equivalent).
Thrust pin 1.4034 (AISI 420 equivalent).
Spring 1.4310 (AISI 301 equivalent).

Thread lock nylon.

Version:Bright.
Thrust pin hardened.Note:These spring plungers are chiefly used as ejectors and spring stops in machine construction.
The thrust pin is actuated in the axial direction.Drawing reference:

L2 = ca. two full threads

1) grub screw glued-in

Special features:

Stainless steel

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1380 Spring plungers with hex socket and flat thrust pin, stainless steel, with thread lock

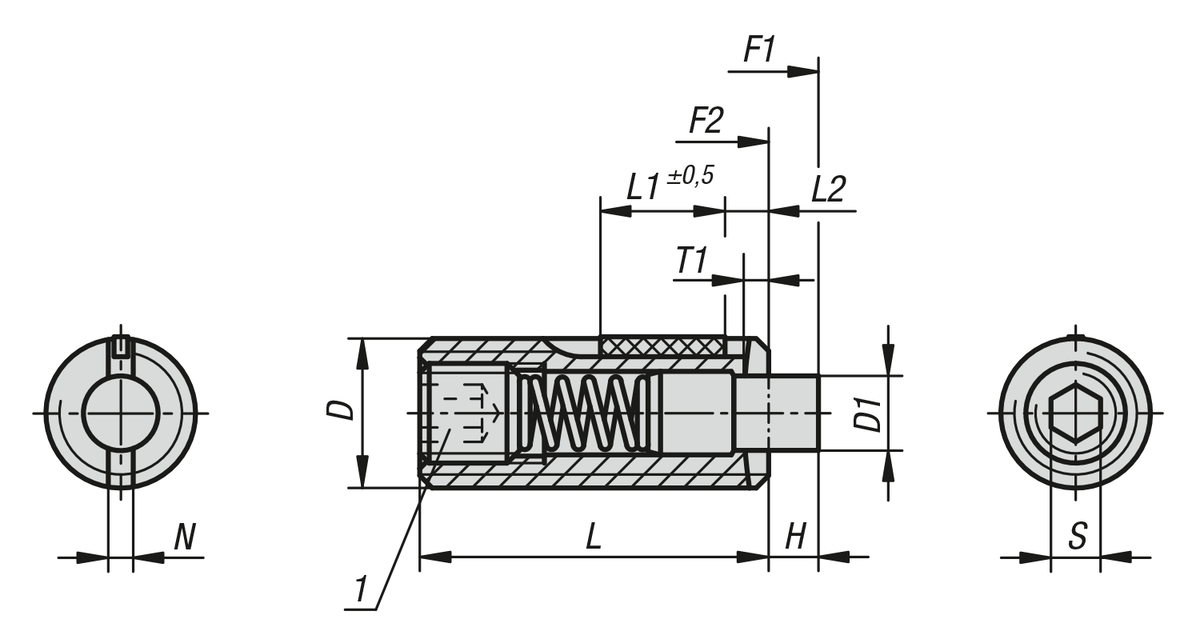

Drawings

Spring plungers with hex socket and flat thrust pin, stainless steel, with thread lock

Spring plungers with hex socket and flat thrust pin, stainless steel, with thread lock

Item selection/filter

Item No.	D	D1	H	L	L1	T1	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Loosening torque approx. Nm	Item No. Installation tool	CAD	Acc.	Price	Order
K1380.05	M5	2,4	2,3	18	7	0,8	0,8	1,5	5	17	0,12	0,08	K0317.905			14.66 $ (USD)
K1380.06	M6	2,7	2,5	20	7	1	1	2	6	17	0,45	0,22	K0317.906			14.66 $ (USD)
K1380.08	M8	3,5	3	22	8	1,4	1,2	2,5	7	29	1,05	0,37	K0317.908			16.36 $ (USD)
K1380.10	M10	4	3	22	9	1,4	1,6	3	8	31	1,3	0,6	K0317.910			19.05 $ (USD)
K1380.12	M12	6	4	28	10	2	2	4	10	47	2	1,3	K0317.912			27.41 $ (USD)
K1380.16	M16	7,5	5	32	14	2,5	2,5	5	38	85	3,9	3	K0317.916			43.06 $ (USD)
