Product groups

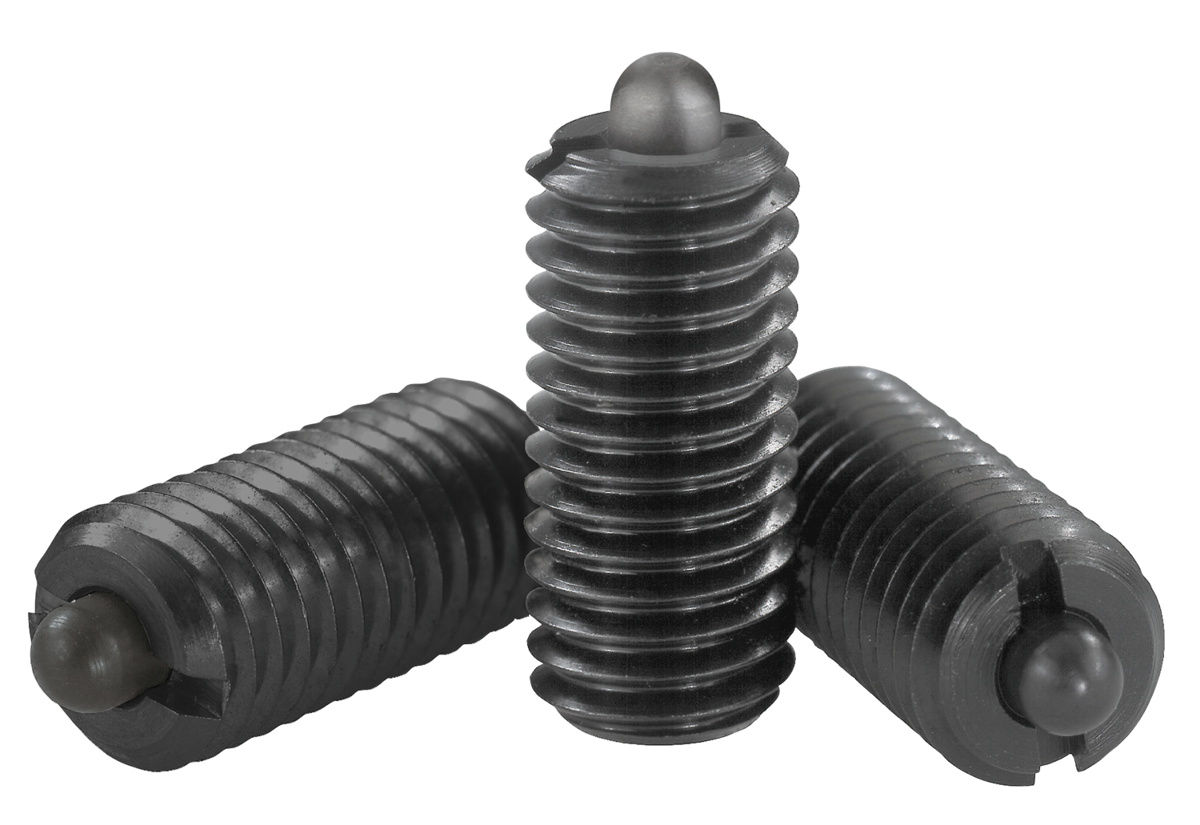

Spring Plungers pin style, hexagon socket, steel pin, standard end pressure, metric
K0317 Metric

Spring Plungers pin style, hexagon socket, steel pin, standard...

go back

Item description/product images

DescriptionMaterial:body steel grade 5.8.
Thrust pin steel.
Spring steel wire grade D.
Version:Black oxidized.
Thrust pin hardened.
Drawing reference:
1) grub screw glued in
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0317 Metric Spring Plungers pin style, hexagon socket, steel pin, standard end pressure, metric 197 kB

Drawings

Spring Plungers pin style, hexagon socket, steel pin, standard end pressure, metric

Item selection/filter

Item No.

DD1HLT1NSSpring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
Item No.
Installation
tool
CADAcc.PriceOrder
K0317.03M311,51010,40,70,53K0317.903  5.76 $ (USD)
K0317.04M41,51,5150,60,61,3516K0317.904  4.49 $ (USD)
K0317.05M52,42,3180,80,81,5620K0317.905  4.30 $ (USD)
K0317.06M62,72,520112720K0317.906  4.45 $ (USD)
K0317.08M83,53221,41,22,5935K0317.908  5.27 $ (USD)
K0317.10M1043221,41,63935K0317.910  5.87 $ (USD)
K0317.12M1264282241255K0317.912  7.55 $ (USD)
K0317.16M167,55322,52,5545100K0317.916  9.68 $ (USD)
K0317.20M201074032,5660120- 12.41 $ (USD)
K0317.24M2412105232,5880160-21.95 $ (USD)
