Spring plungers with hexagon socket and flattened thrust pin, steel
K1370

Spring plungers with hexagon socket and flattened thrust pin,...

go back

Item description/product images

DescriptionMaterial:body steel grade 5.8.
Thrust pin steel.
Spring steel wire grade D.
Version:Black oxidized.
Thrust pin hardened.
Note:These spring plungers are chiefly used as ejectors and spring stops in machine construction.
The thrust pin is actuated in the axial direction.

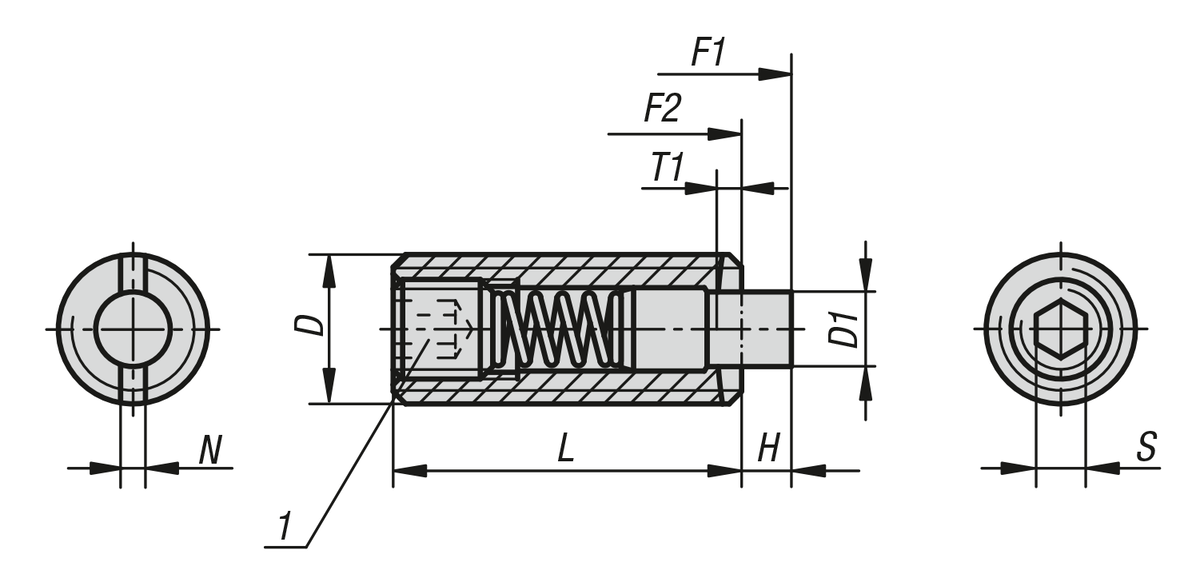

Drawing reference:
1) grub screw glued in
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1370 Spring plungers with hexagon socket and flattened thrust pin, steel 261 kB

Drawings

Spring plungers with hexagon socket and flattened thrust pin, steel
Spring plungers with hexagon socket and flattened thrust pin, steel

Item selection/filter

Item No.

DD1HLTT1NSSpring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
Item No.
Installation
tool
CADAcc.PriceOrder
K1370.05M52,42,31820,80,81,5620K0317.905 3.89 $ (USD)
K1370.06M62,72,5202,5112720K0317.906 4.06 $ (USD)
K1370.08M83,532231,41,22,5935K0317.908 4.90 $ (USD)
K1370.10M1043223,51,41,63935K0317.910 5.47 $ (USD)
K1370.12M12642852241255K0317.912 7.03 $ (USD)
K1370.16M167,553262,52,5545100K0317.916 9.03 $ (USD)
K1370.20M2010740832,5660120- 12.19 $ (USD)
