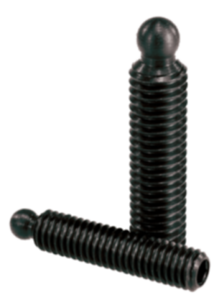

K0391Grub screws with ball thrust point |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel grade 5.8.Version:Black oxidized.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

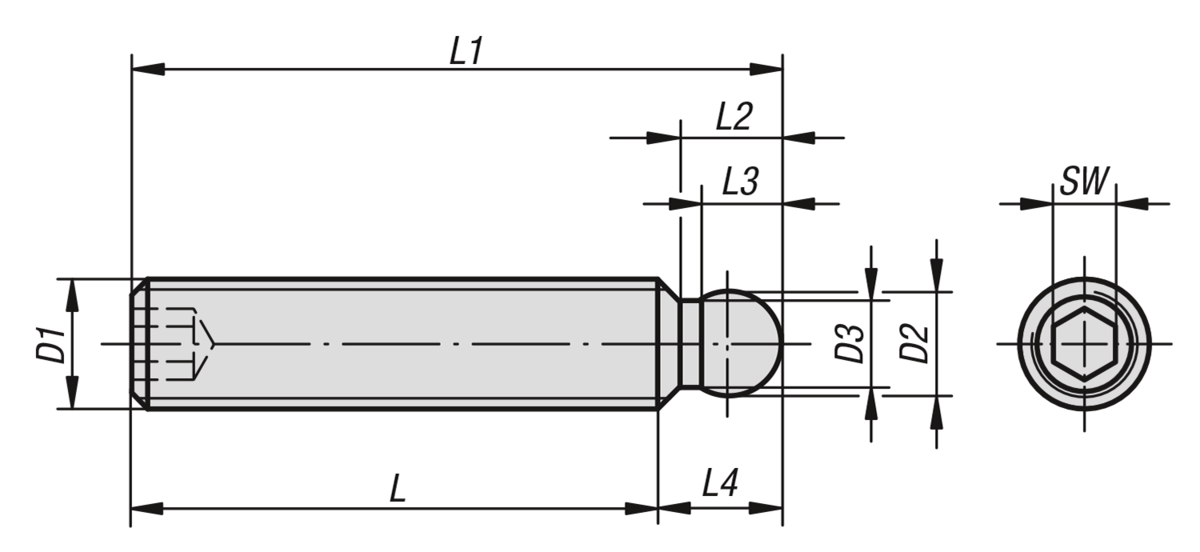

| Order No. | D1 | L1 | D2 | D3 | L | L2 | L3 | L4 | L5 | SW | CAD | Acc. | Price | Order |
|---|
| K0391.06X30 | M6 | 30 | 4,5 | 3,5 | 24,5 | 4,3 | 3,7 | 5,5 | 3,8 | 3 |  |  | 1.37 $ (USD) | | | K0391.06X35 | M6 | 35 | 4,5 | 3,5 | 29,5 | 4,3 | 3,7 | 5,5 | 3,8 | 3 | | | 1.46 $ (USD) | | | K0391.06X40 | M6 | 40 | 4,5 | 3,5 | 34,5 | 4,3 | 3,7 | 5,5 | 3,8 | 3 | | | 1.46 $ (USD) | | | K0391.06X50 | M6 | 50 | 4,5 | 3,5 | 44,5 | 4,3 | 3,7 | 5,5 | 3,8 | 3 | | | 1.46 $ (USD) | | | K0391.08X35 | M8 | 35 | 6 | 4,8 | 27,6 | 5,8 | 4,8 | 7,4 | 4,4 | 4 | | | 1.87 $ (USD) | | | K0391.08X40 | M8 | 40 | 6 | 4,8 | 32,6 | 5,8 | 4,8 | 7,4 | 4,4 | 4 | | | 1.87 $ (USD) | | | K0391.08X45 | M8 | 45 | 6 | 4,8 | 37,6 | 5,8 | 4,8 | 7,4 | 4,4 | 4 | | | 2.03 $ (USD) | | | K0391.08X50 | M8 | 50 | 6 | 4,8 | 42,6 | 5,8 | 4,8 | 7,4 | 4,4 | 4 | | | 2.03 $ (USD) | | | K0391.08X60 | M8 | 60 | 6 | 4,8 | 52,6 | 5,8 | 4,8 | 7,4 | 4,4 | 4 | | | 2.48 $ (USD) | | | K0391.10X50 | M10 | 50 | 8 | 6,5 | 41 | 7,2 | 6,3 | 9 | 5 | 5 | | | 2.90 $ (USD) | | | K0391.10X55 | M10 | 55 | 8 | 6,5 | 46 | 7,2 | 6,3 | 9 | 5 | 5 | | | 3.22 $ (USD) | | | K0391.10X60 | M10 | 60 | 8 | 6,5 | 51 | 7,2 | 6,3 | 9 | 5 | 5 | | | 3.22 $ (USD) | | | K0391.10X65 | M10 | 65 | 8 | 6,5 | 56 | 7,2 | 6,3 | 9 | 5 | 5 | | | 3.22 $ (USD) | | | K0391.10X80 | M10 | 80 | 8 | 6,5 | 71 | 7,2 | 6,3 | 9 | 5 | 5 | | | 3.42 $ (USD) | | | K0391.12X60 | M12 | 60 | 8 | 6,5 | 50,2 | 7,2 | 6,3 | 9,8 | 6,9 | 6 | | | 4.18 $ (USD) | | | K0391.12X65 | M12 | 65 | 8 | 6,5 | 55,2 | 7,2 | 6,3 | 9,8 | 6,9 | 6 | | | 4.18 $ (USD) | | | K0391.12X70 | M12 | 70 | 8 | 6,5 | 60,2 | 7,2 | 6,3 | 9,8 | 6,9 | 6 | | | 4.39 $ (USD) | | | K0391.12X80 | M12 | 80 | 8 | 6,5 | 70,2 | 7,2 | 6,3 | 9,8 | 6,9 | 6 | | | 4.39 $ (USD) | |
