Protective caps

K0106

Protective caps

Products
- Toggle Clamps
  - Accessories
    - Protective caps

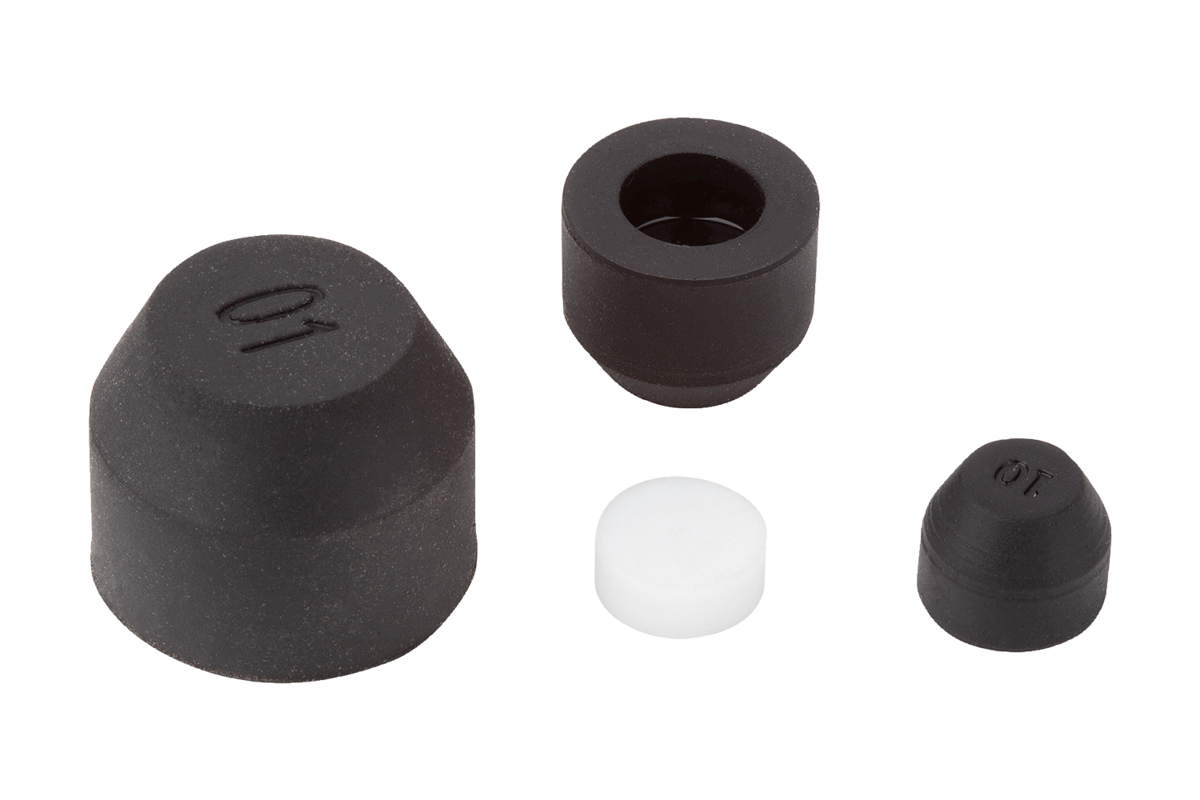

Item description/product images

DescriptionMaterial:K0106.06 is polyamide, all other caps are oil-resistant rubber.Version:Neoprene black, oil resistant, Shore hardness 75A.
Polyamide white.
Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0106 Protective caps

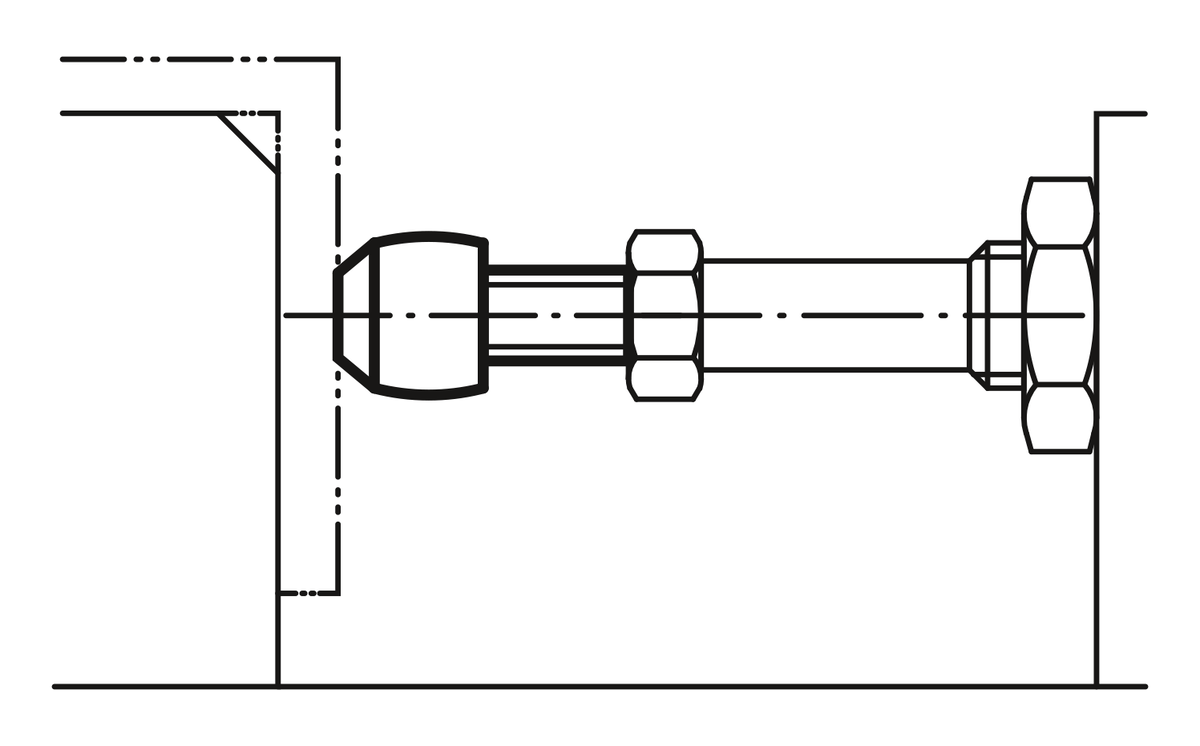

Drawings

Protective caps

Item selection/filter

Order No.	style	Main material	D	D1	D2	H	H1	for screws	CAD	Acc.	Price	Order
K0106.06	A	polyamide	9	-	6,6	4	2,3	M3			2.27 $ (USD)
K0106.01	B	neoprene	11	6,6	5,5	8,5	4	M4			1.61 $ (USD)
K0106.02	B	neoprene	12,5	7,3	6,5	10	4,7	M5			1.76 $ (USD)
K0106.03	B	neoprene	15	9,9	8,5	12	5,8	M6			2.11 $ (USD)
K0106.04	B	neoprene	19	12,7	11	15	7,1	M8			2.39 $ (USD)
K0106.07	B	neoprene	23	15	14,5	18	9	M10			3.49 $ (USD)
K0106.05	B	neoprene	26	19	16,5	20	10	M12			3.00 $ (USD)
K0106.08	B	neoprene	33	24	22	27	13	M16			4.45 $ (USD)
